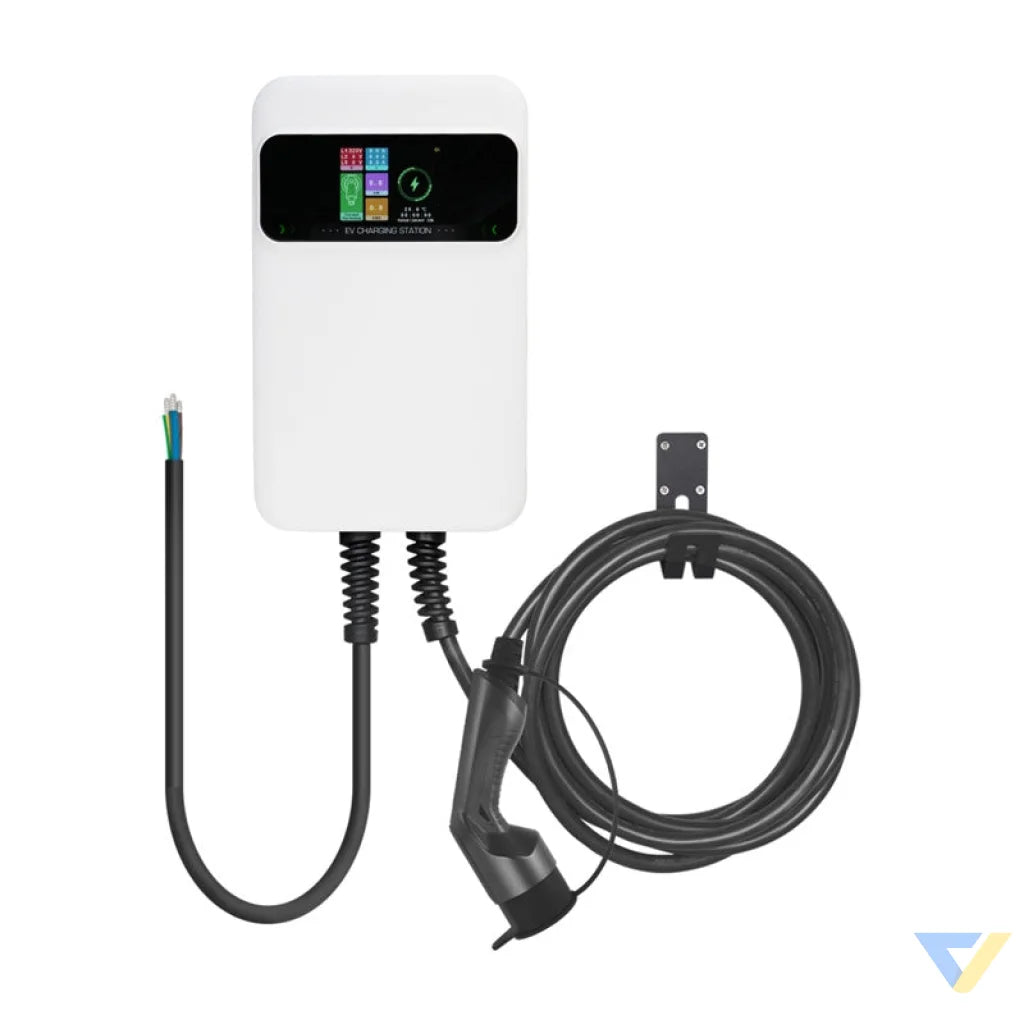

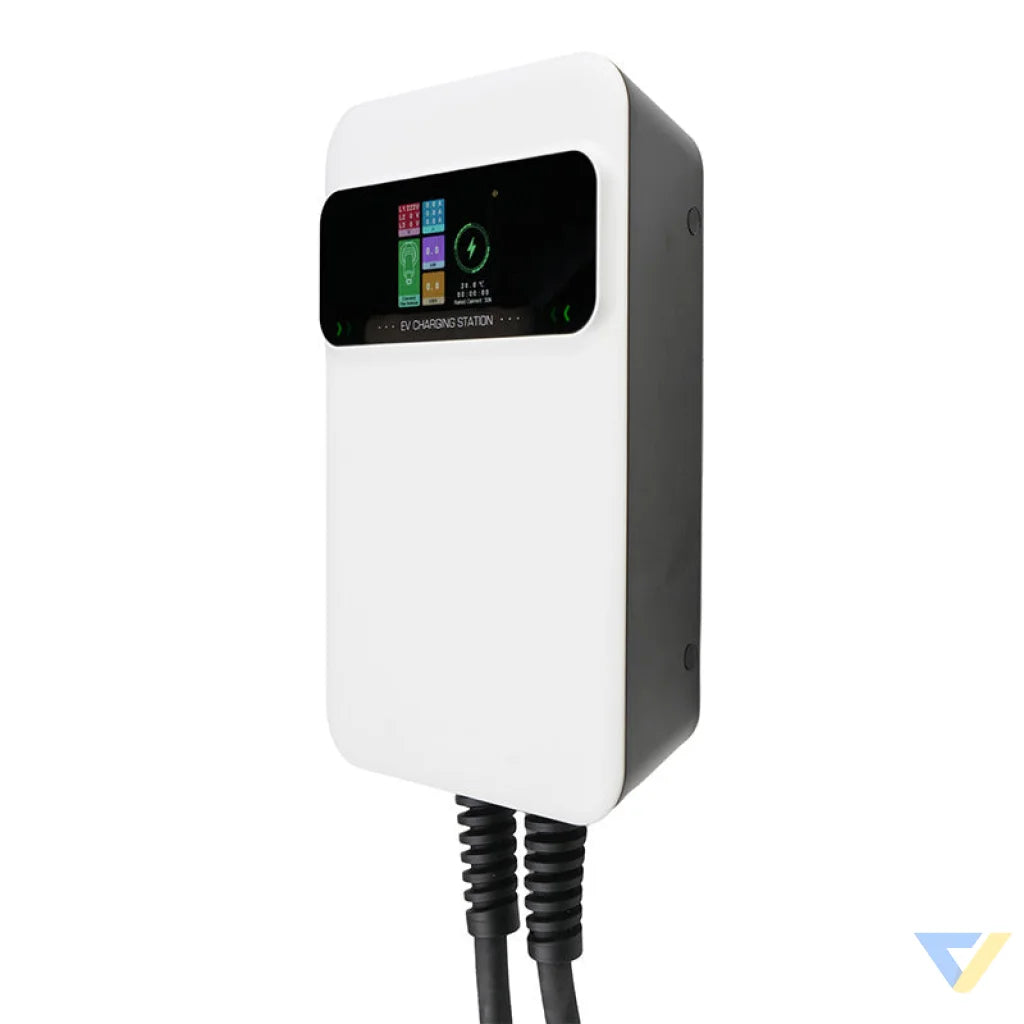

Wall charger for electric cars Besen SQ20-22KW-APP

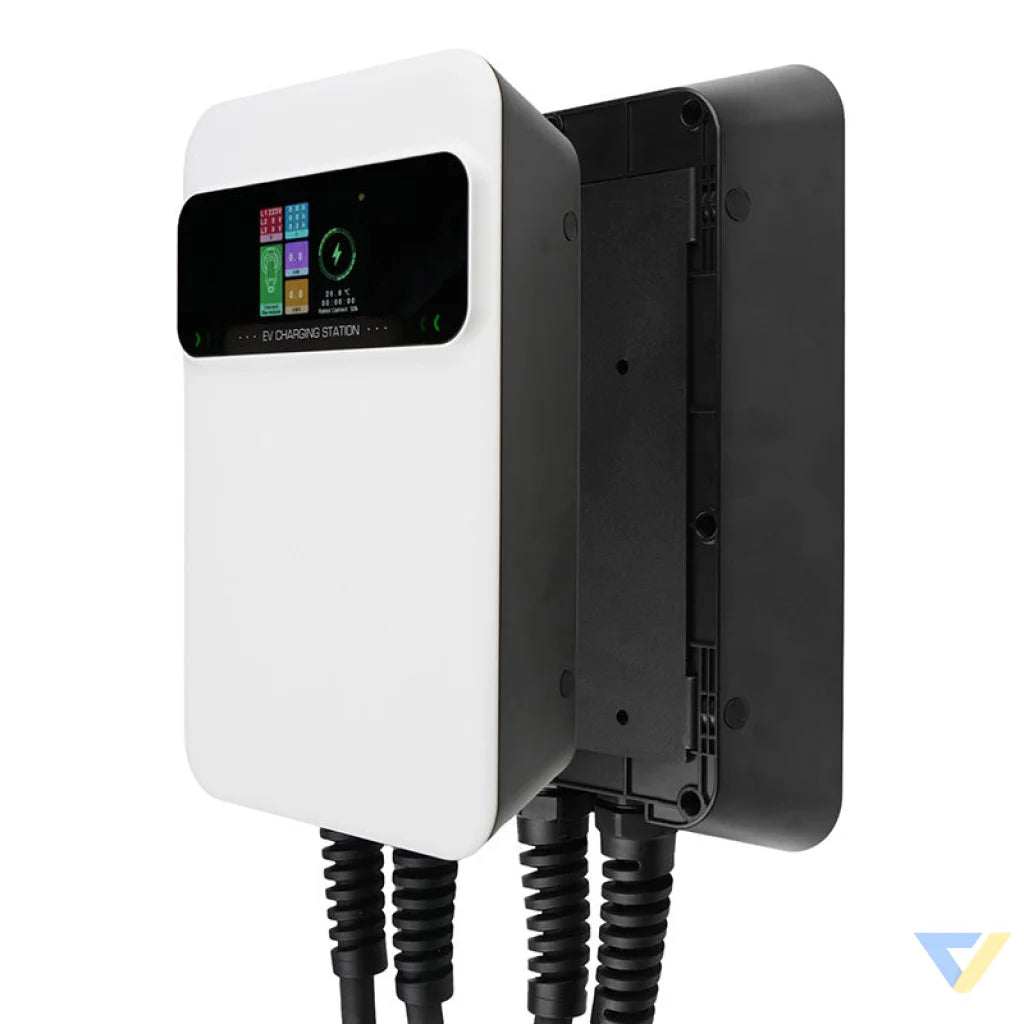

The SQ20-APP is designed for wall mounting and is ideal for both private homes and professional applications. By connecting to the app via Bluetooth, you can remotely set the charging time and current, start and stop charging, and check the session history at any time.
Advanced technology and easy operation

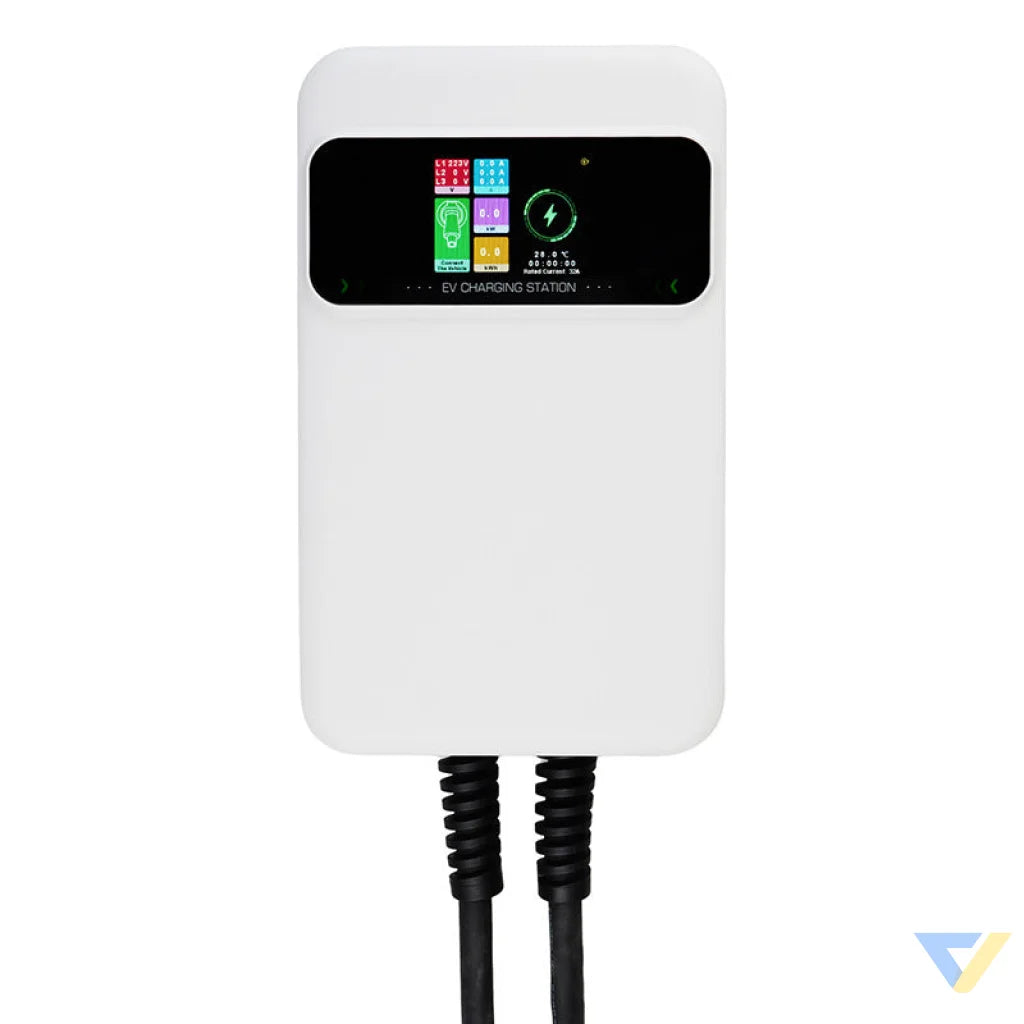

The charger is equipped with a 3.5-inch color LCD display that shows charging parameters - time, voltage, current, temperature and power consumption - in real time. A built-in smart chip automatically diagnoses and corrects non-hardware faults, increasing charging safety and reliability. You also have the ability to update the software from within the app, allowing you to easily implement new features.
Security and compatibility
Wallbox SQ20-APP has a complete set of protections: against overvoltage, overheating, overload, short circuit, current leakage to ground and lightning strike. It supports SAE J1772, IEC 62196-2 and GB/T type interfaces, making it compatible with most electric vehicles on the market. The maximum charging current is 32 A, and the IP66-rated housing provides dust and water resistance.

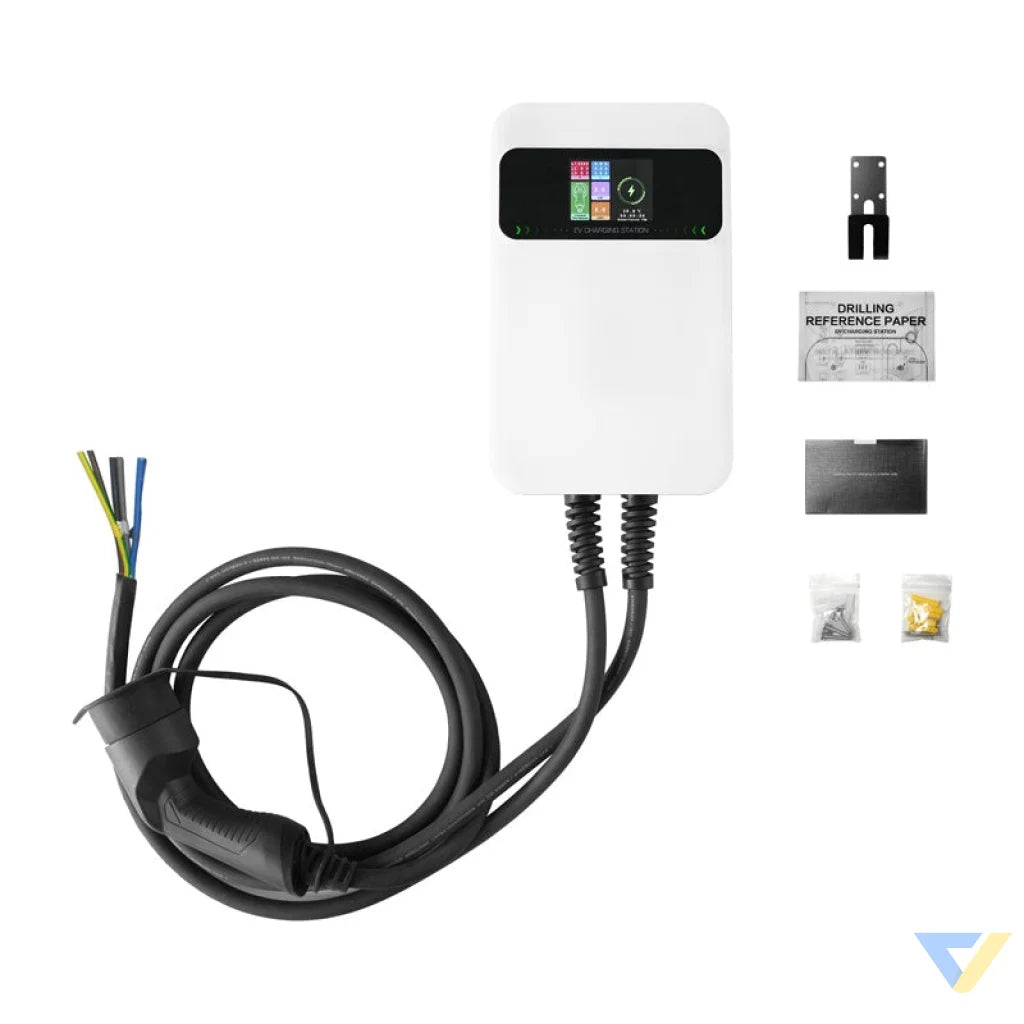

Included
- wall charger
- mounting elements
| Manufacturer |
Besen |
| Model |
SQ20-22KW-APP |
| Output power |
22 kW |
| Input/output voltage |
AC 400V (3 phase) |
| Maximum current |
32A |
| Frequency |
47-63 Hz |
| Charging interface |
SAE J1772, IEC 62196-2, GB/T |
| Display |
3.5" color LCD |
| Waterproof |
IP66 |
| Weight |
8 kg |
| Dimensions |
295 × 195 × 65 mm |
| Ambient temperature |
-25°C ~ + 55°C |
| Humidity |
0-95% non-condensing |
| Max. altitude |
<2000 m |
| Power consumption in standby mode |
<8W |
| Application |
EVSEMaster |
