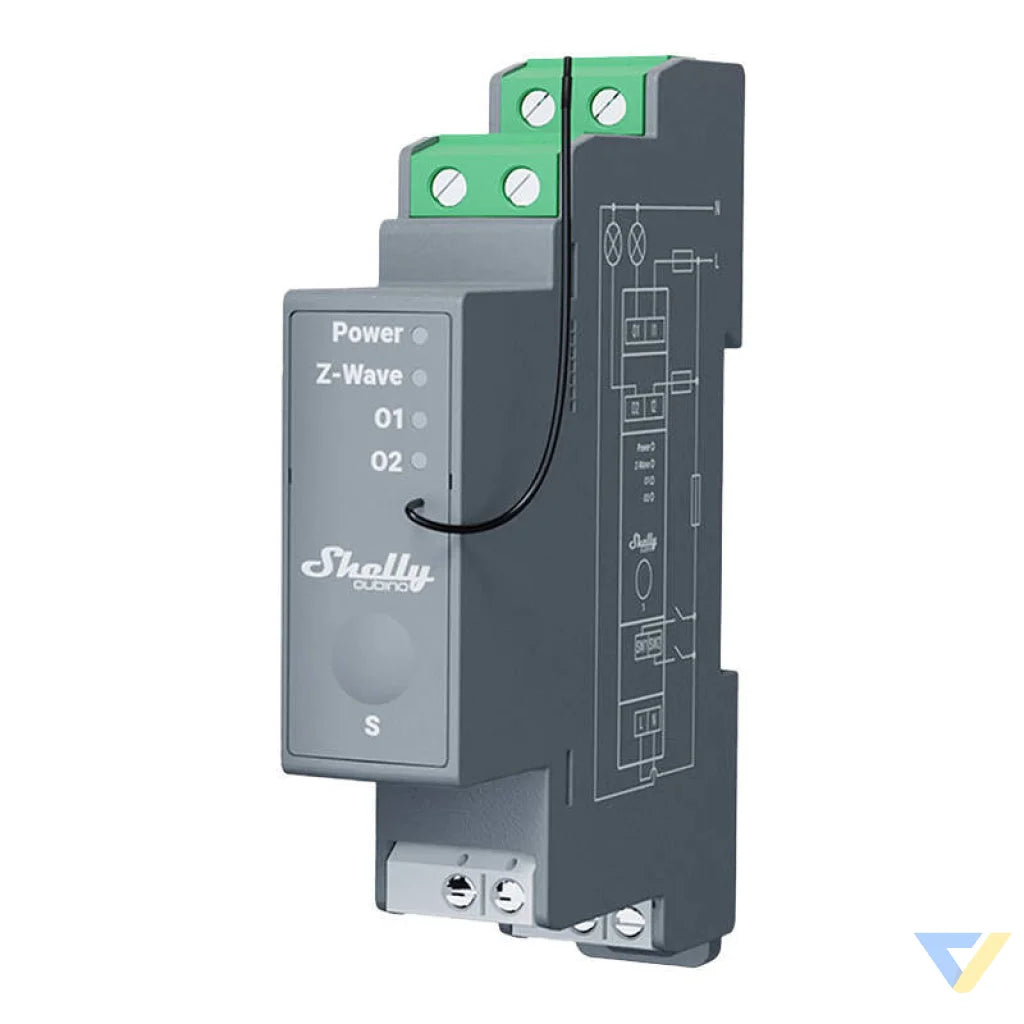

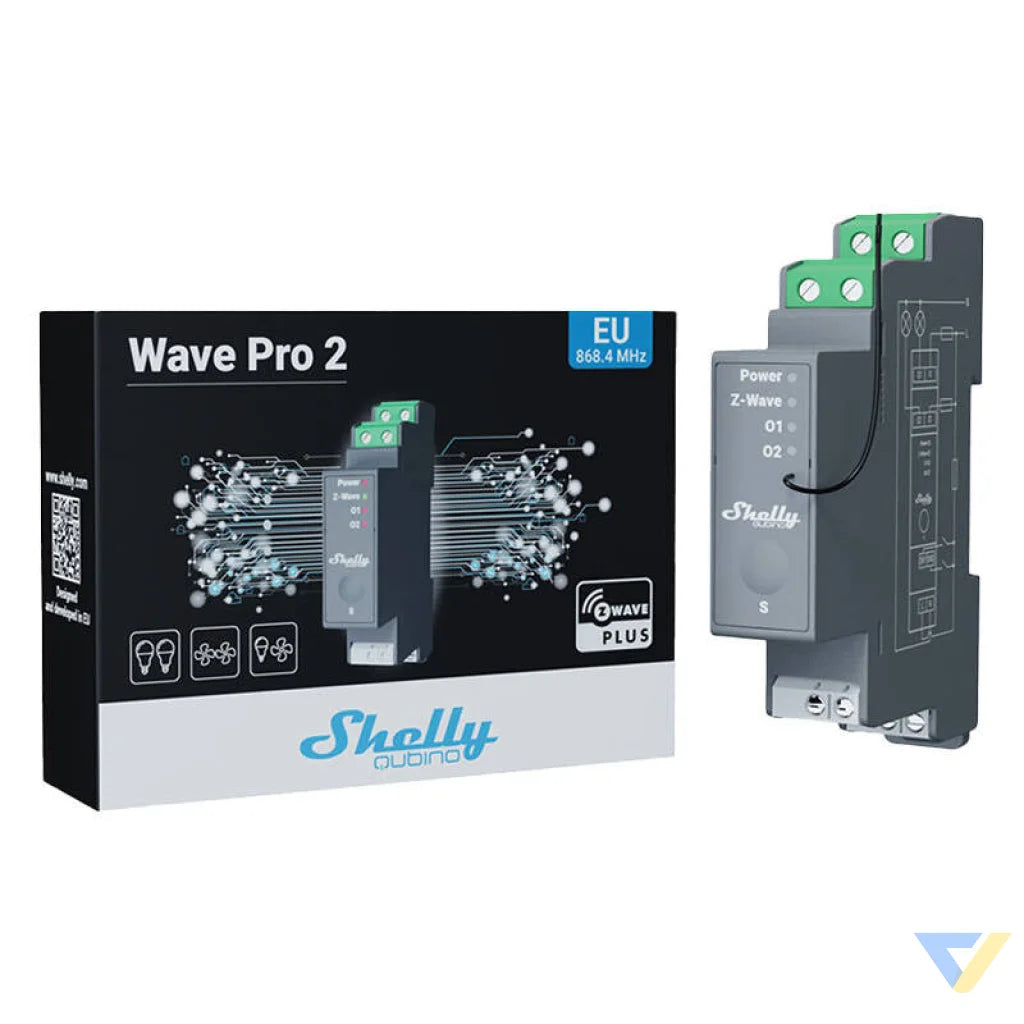

Shelly Qubino Pro 2 2-channel DIN rail relay

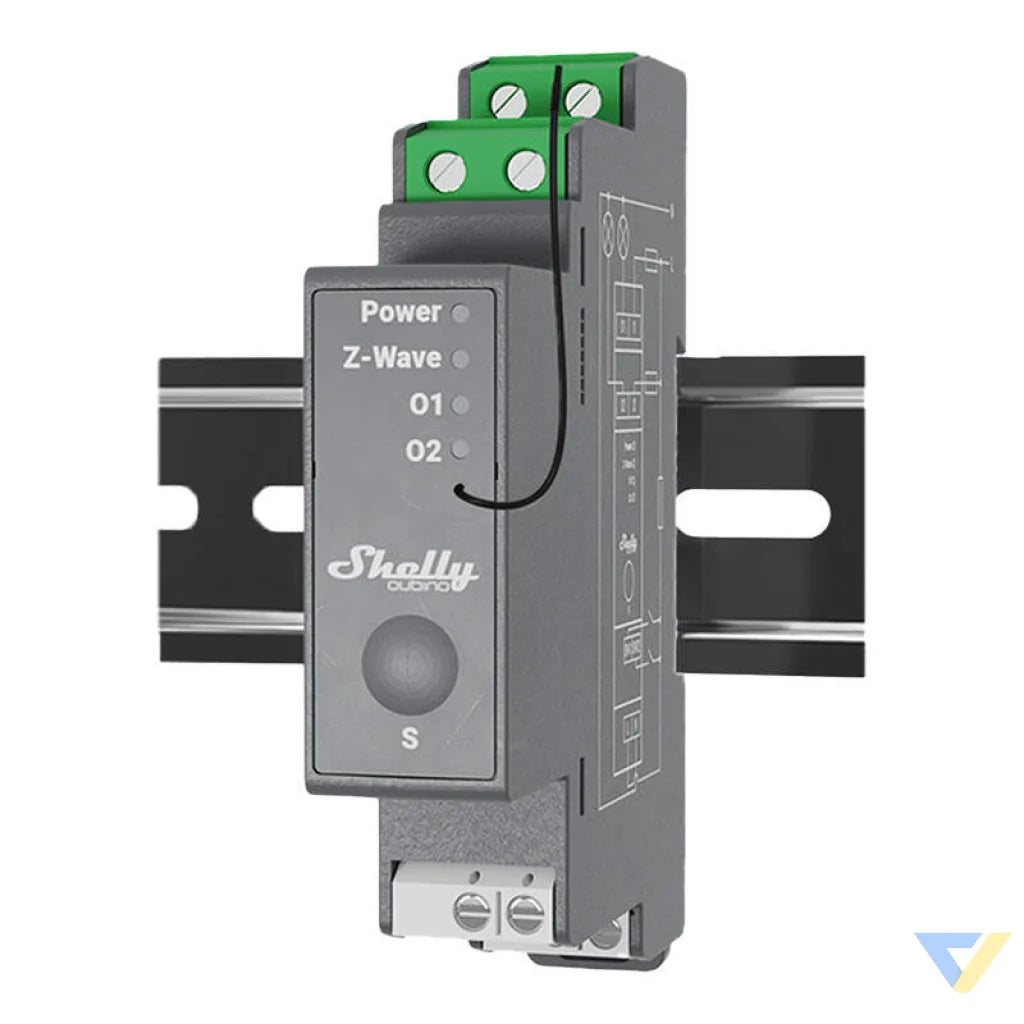

Want to gain full control over lighting and other electrical devices in your home? Meet the Shelly Qubino Pro 2! Designed to be mounted on a standard DIN rail, the 2-channel relay features potential-free contacts, providing great flexibility in the area of handling different voltages and a wide range of possibilities in home automation. The ability to control a load of up to 16 A per channel (25 A in total) guarantees reliable operation even for more demanding devices.
Unlimited possibilities
The Shelly Qubino Pro 2 is perfect for a variety of home automation scenarios. It can be used to control lighting, heating, ventilation and other electrical devices, giving the user full control over their functions. With it, you can create schedules, scenarios and automated action sequences that will make your home work exactly the way you want it to!
| Manufacturer |
Shelly |
| Power supply |
110 - 240 V AC, 50/60 Hz |
| Power consumption |
< 0,3 W |
| Max. switching voltage AC |
240 V |
| Max. AC switching current |
16 A per channel, 25 A total |
| Protection against overheating |
Yes |
| Power measurement (W) |
No |
| Range |
Up to 40 m indoors |
| Z-Wave® amplifier: |
Tak |
| CPU |
Z-Wave® S800 |
| Z-Wave® frequency bands: |
868.4 MHz; 865.2 MHz; 869.0 MHz; 921.4 MHz; 908.4 MHz; 916 MHz; 919.8 MHz; 922.5 MHz; 919.7-921.7-923.7 MHz; 868.1 MHz; 920.9 MHz |
| Maximum transmit power in the frequency bands |
< 25 mW |
| Dimensions |
94 x 19 x 69 ±0.5 mm |
| Weight |
73 g |
| Mounting |
DIN rail |
| Housing material |
Plastic |
| Color |
Gray |
| Ambient temperature |
-20°C to 40°C / -5°F to 105°F |
| Humidity |
30% to 70% RH |
| Max altitude |
2000 m |
