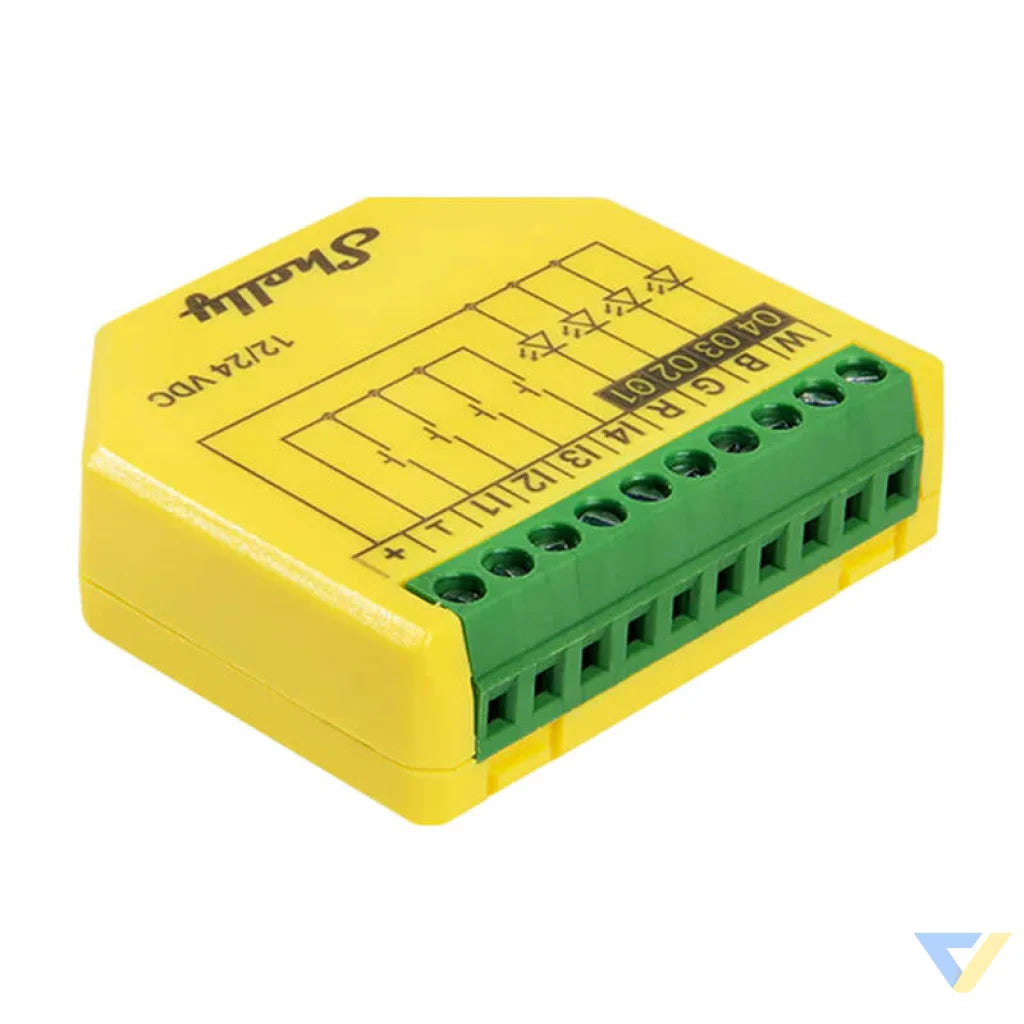

Shelly Plus RGBW PM LED Strip Controller
The Shelly Plus RGBW PM LED Strip Controller is your key to creating a unique atmosphere in your home or office. It supports 12V and 24V LED strips in White, RGB and RGBW modes, allowing you complete freedom of personalization. Subtle light for evening relaxation, dynamic lighting effects at a party or practical kitchen backlighting - you have it all at your fingertips. With no need to install additional hubs, you can start your smart lighting adventure as soon as you plug it in.
Lighting effects that delight
With Shelly Plus RGBW PM, you can give your interior a unique touch. Create the right mood by dimming the light or choosing from 16 million colors. The device also offers unique lighting effects that bring any room to life - from subtle tonal transitions to dynamic color changes.
Smart schedules and scenes
Customize lighting to fit your lifestyle with smart schedules and scenes. The Shelly Plus RGBW PM controller allows you to create personalized schedules that automatically adjust the light to your daily rhythm. Combine it with other Shelly devices to create a comprehensive automation system that fully meets your needs!
Control at your fingertips
With Wi-Fi and Bluetooth support, controlling your lights becomes a breeze. All you need is the Shelly Smart Control app to monitor energy consumption, set night mode or make real-time changes. The device works with the most popular platforms and protocols, as well as voice assistants such as Alexa and Home Assistant. You can also integrate it with your favorite automation system to enjoy full control over your lighting - no matter where you are.
Safety and reliability in one
The device monitors power consumption and has overload protection, which increases safety and helps control costs. The built-in ESP32 processor provides lightning-fast response to every change, so you'll see every setting change right away. The Shelly Plus RGBW PM also acts as a Wi-Fi repeater and BLE gateway, improving the range of your home network.
| Manufacturer |
Shelly |
| Model |
PlusRGBWPM |
| Dimensions |
42 x 37 x 12 ±0.5 mm |
| Weight |
17 g |
| Maximum tightening torque of screw terminals |
0.2 Nm |
| Cross section of wires |
from 0.1 to 1 mm² |
| Length of stripped wire |
6 mm |
| Mounting |
In a wall box |
| Housing material |
Plastic |
| Housing color |
Yellow |
| Connector color |
Green |
| Ambient temperature |
-20 °C to 40 °C |
| Humidity |
30% - 70% |
| Power supply |
12/24 VDC |
| Power consumption |
< 1,2 W |
| Maximum control voltage |
24 VDC |
| Maximum control current |
4 A per channel (10 A total) |
| PWM frequency |
22 kHz |
| Voltmeter |
0-24 V |
| Voltmeter accuracy |
± 5% |
| Ammeter |
0-10 A |
| Accuracy of the ammeter |
± 10% |
| Power and energy measurement |
Yes |
| No-load detection threshold |
0.5 VA per channel |
| Built-in temperature sensor |
Yes |
| Wi-Fi range |
Up to 30 m indoors, up to 50 m outdoors (depending on local conditions) |
| Bluetooth version |
4.2 |
| Bluetooth range |
Up to 10 m indoors, up to 30 m outdoors (depending on local conditions) |
| Processor |
ESP-Shelly C38F |
| Clock frequency |
160 MHz |
| RAM |
400 KB |
| Flash memory |
4 MB |
| Schedules |
20 |
| Webhooks (URL shares) |
20 (5 URLs per webhook) |
| Scripts |
Yes |
| MQTT |
Yes |
