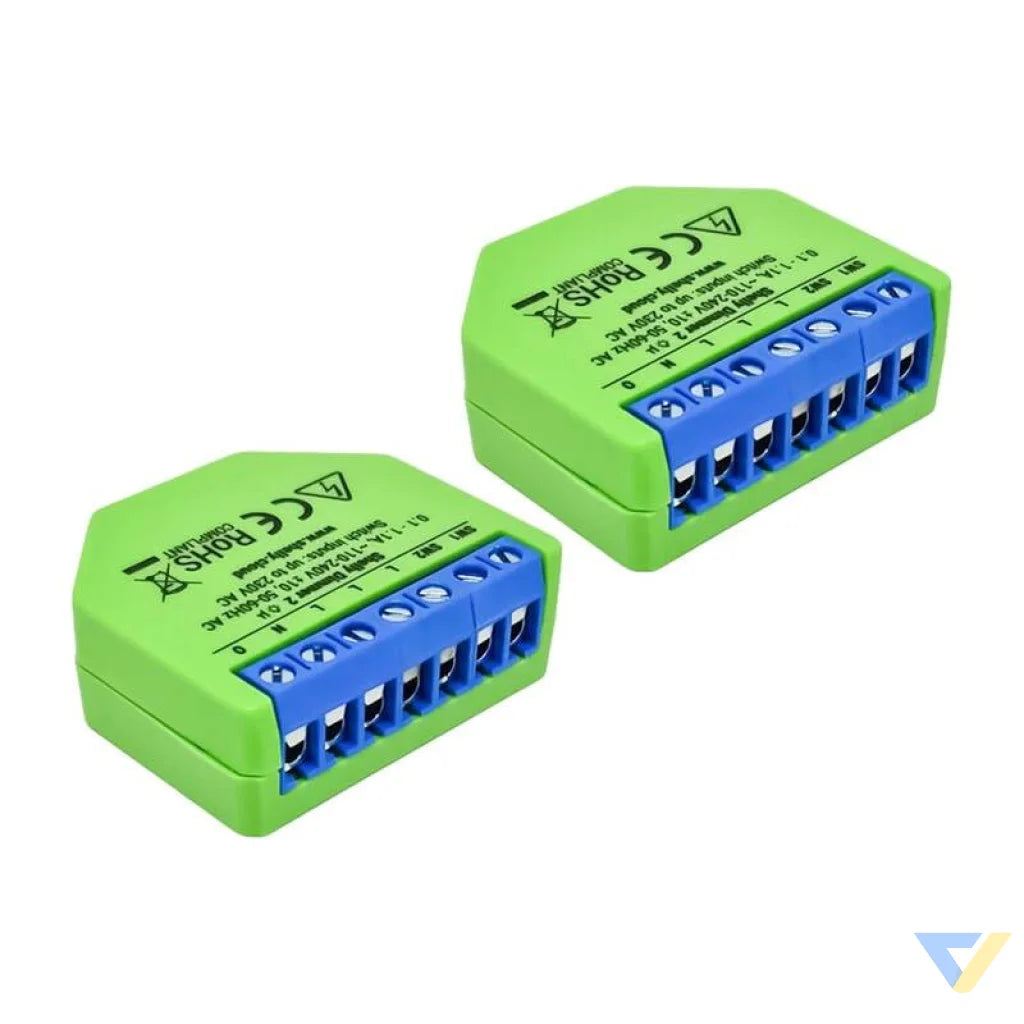

Shelly Dimmer 2 Controller Set of 2
Shelly Dimmer 2 is an advanced lighting controller that is designed to meet the needs of modern electrical installations worldwide. With the ability to operate without a neutral line, this device is capable of handling almost any configuration, while offering a rich set of dimming functions. It is the ideal solution for those who want complete control over the lighting in their homes, while ensuring compatibility with a wide range of light sources.
Advanced features and safety
The controller is designed to fit into most standard electrical boxes and switches for easy installation and integration. It offers not only basic functions, such as turning lights on and off or dimming, but also advanced options, including, for example, overcharging and overheating protection. With integrated temperature sensors and overcharge protection features, the Shelly Dimmer 2 provides a high level of safety and reliability. What's more, the equipment enables monitoring of lighting energy consumption, which contributes to better energy management and potential savings.
Smart control and automation
The controller allows both local and remote control of lighting, giving users full control over home lighting from anywhere. In addition, with features such as weekly scheduling and automatic adjustment of lighting to sunrise and sunset, the Shelly Dimmer 2 offers advanced automation capabilities that can be easily customized to individual preferences.
Easy integration with home automation systems
Compatibility with Android, iOS, and integration with voice assistants such as Amazon Alexa and Google Assistant, makes the Shelly Dimmer 2 easy to use and a perfect fit in the smart home ecosystem. In addition, the ability to work with home automation servers via MQTT, CoAP and REST APIs allows for advanced integration and use in DIY projects, including Arduino projects.
Included
| Manufacturer |
Shelly |
| Model |
Dimmer 2 |
| Power supply |
110-230 V ±10%, 50/60 Hz |
| Temperature protection of the device |
Yes; 95°C |
| Protection against overcharging |
Yes |
| Power measurement |
Yes |
| Dimming |
Yes |
| Operating current |
0,1-1,1 A |
| LED dimming capability |
50-200VA / 10W - 200W |
| Incandescent and halogen light sources |
10-220 W |
| Operation without neutral line |
Yes |
| Channels |
1 channel |
| Operating temperature |
0 to + 40°C |
| Power consumption of the device |
< 1 W |
| Intelligent on/off |
Yes |
| Local and remote control |
Yes |
| East West |
Yes |
| Weekly plan |
Yes |
| Wireless/WiFi protocol |
802.11 b/g/n |
| Radio frequency |
2400 - 2500 MHz |
| Range |
Up to 50 m outdoors and up to 30 m indoors (depending on building materials) |
| Size |
42 mm x 36 mm x 14 mm |
