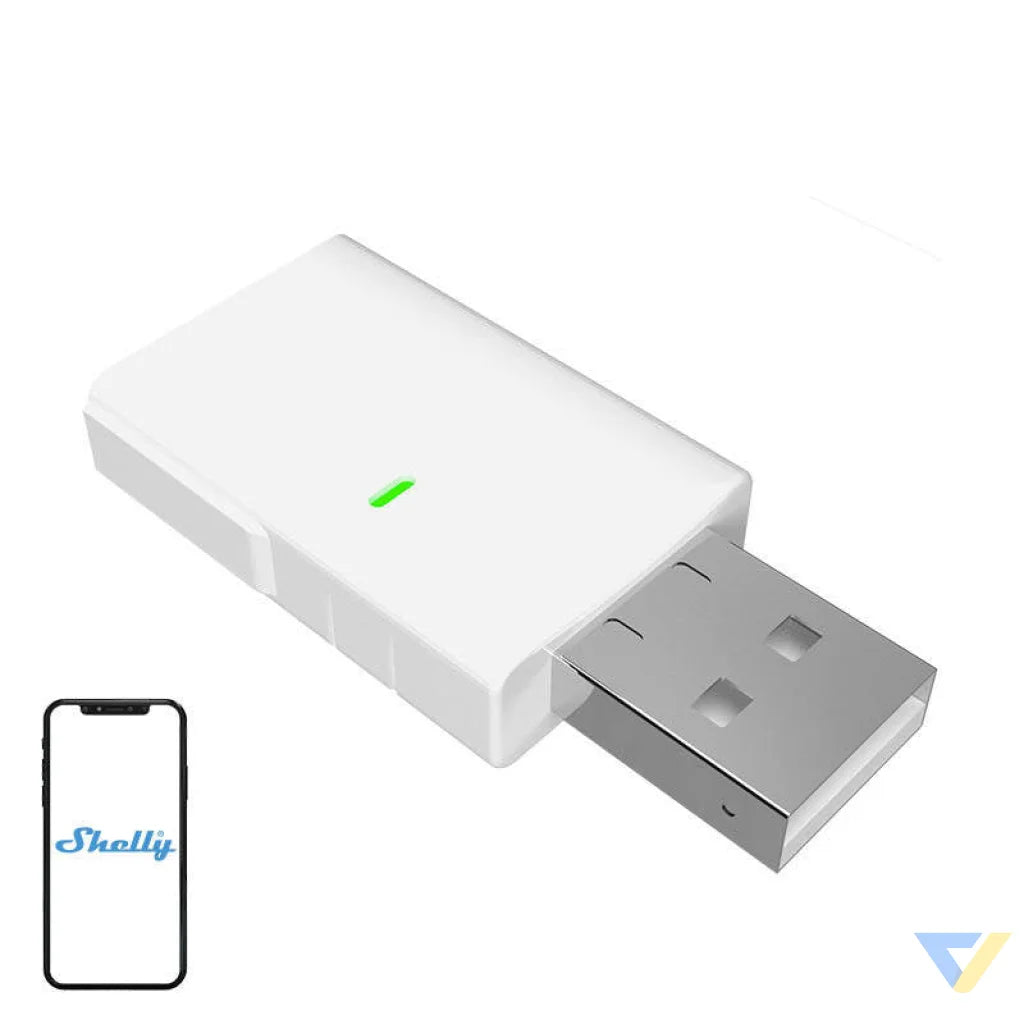

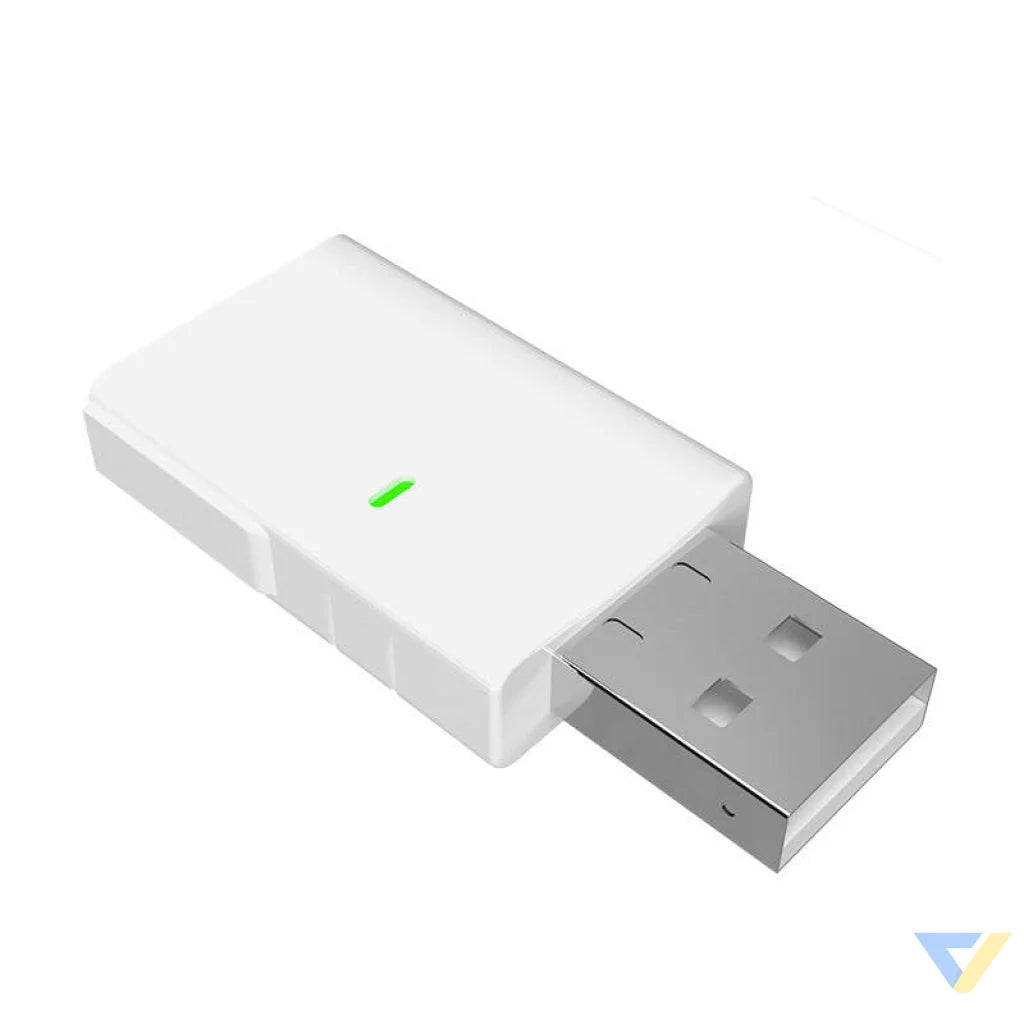

Bluetooth to Wi-Fi gateway in Shelly BLU Gateway USB-A dongle
The USB-A dongle connects to Wi-Fi and enables easy integration of BLE devices into a local network. Its applications range from apartments to condos, hotels to small offices, stores, restaurants and gas stations.
Simple operation
The device has a simple interface with a single button that acts as a reset. Pressing and holding the button for 5 seconds activates the device's access point mode and enables Bluetooth connection. Pressing and holding for 10 seconds restores the device to factory settings.
| Manufacturer |
Shelly |
| Model |
GWF-KZ01 |
| Color |
white |
| Dimensions |
45 x 20 x 8 mm |
| Weight |
5 g |
| Material |
Plastic |
| Ambient temperature |
-20 °C to 40 °C |
| Humidity |
30% to 70% relative humidity |
| Power supply |
5 VDC (from USB Type A port) |
| Power consumption |
1 W |
| RF bandwidth |
2400 - 2495 MHz |
| Max RF power |
20 dBm |
| Wi-Fi protocol |
802.11 b/g/n |
| Wi-Fi range |
Up to 30 m indoors and 50 m outdoors (Depends on local conditions) |
| Bluetooth protocol |
4.2 |
| Bluetooth range |
Up to 20 m indoors and 30 m outdoors (Depends on local conditions) |
| CPU |
ESP32 |
| Memory |
4 MB |
| Script storage |
Yes |
| MQTT |
Yes |
| CoAP |
No |
