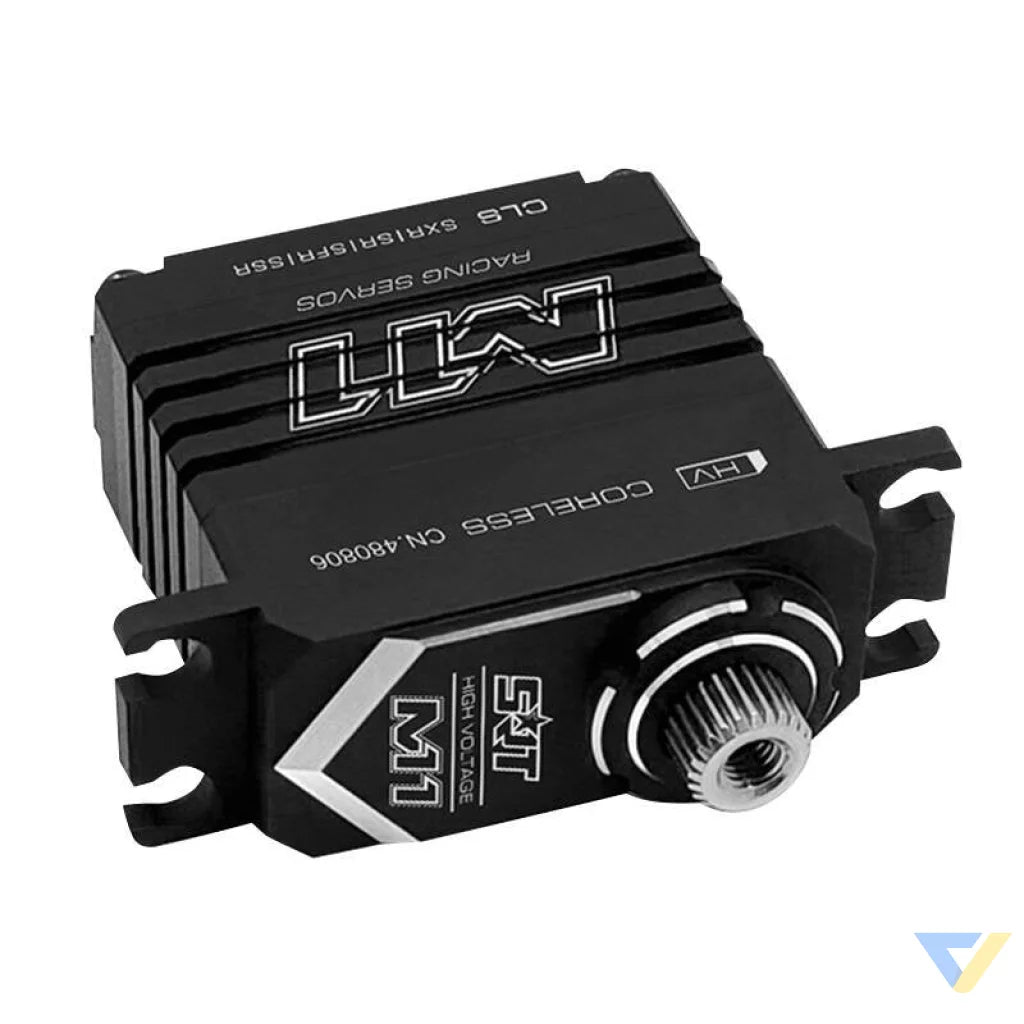

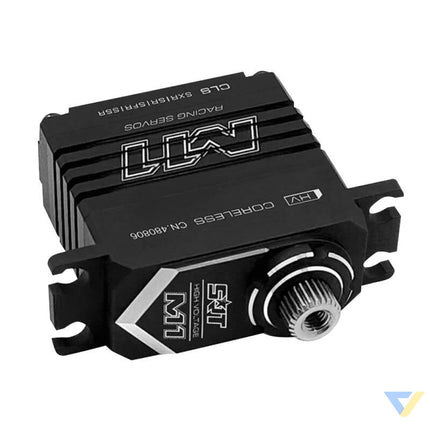

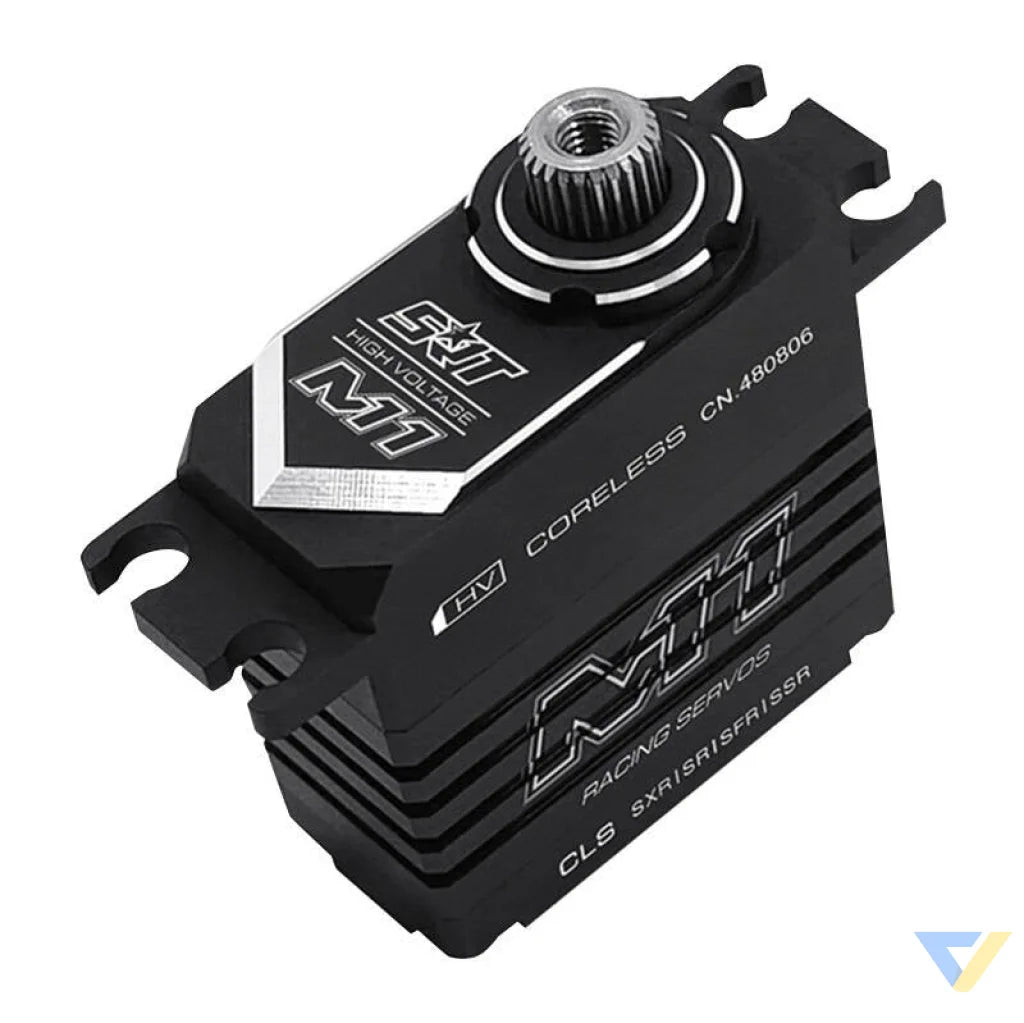

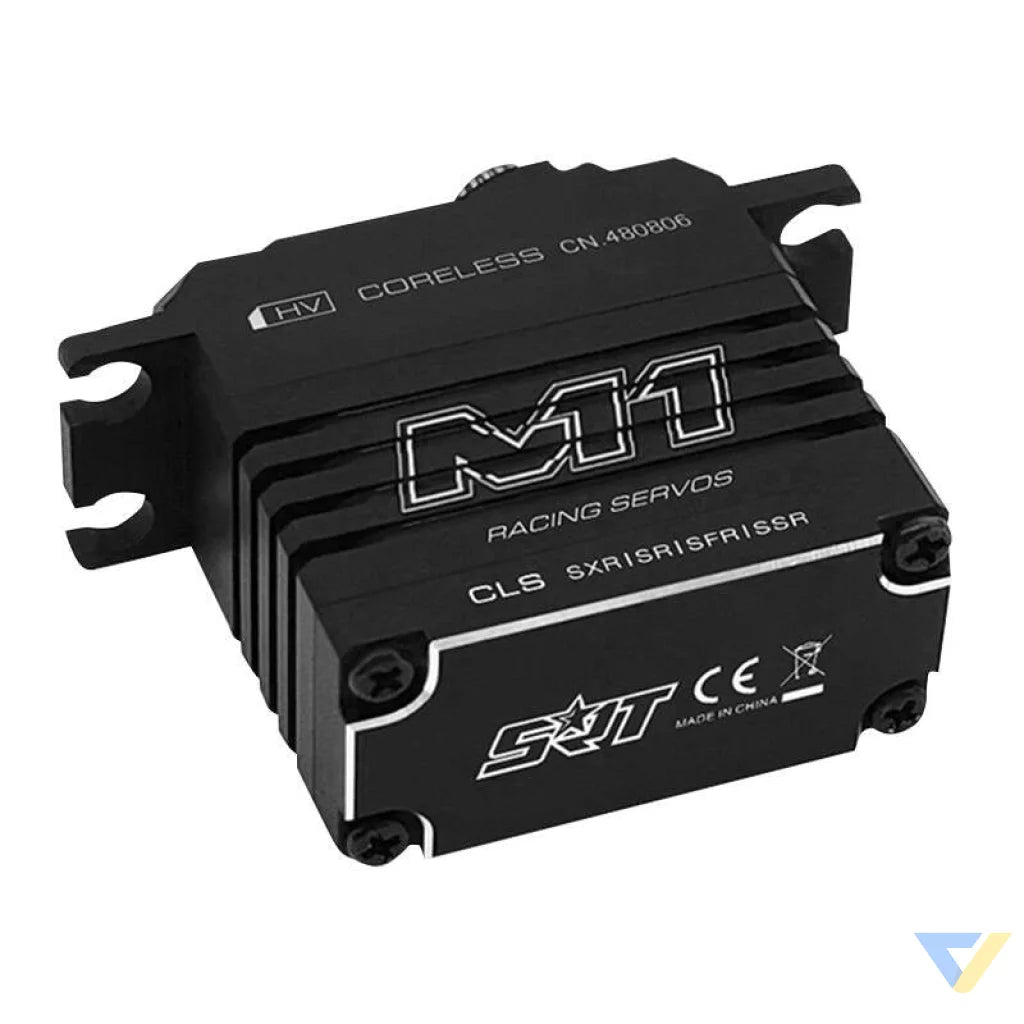

M11 HiVOLT CORELESS Digital servo (9kg-0,055s/60°) Servo
The Coreless Servo M11 HiVOLT in 1/12 scale is perfect for various RC vehicle models. It supports multiple operating modes, including high-speed modes such as SXR, SFR, SR, and SSR, making it suitable for a wide range of applications. It stands out with impressive performance and low energy consumption. Furthermore, it features a small dead zone of only about 2 μs, which means it responds rapidly to control signal changes, ensuring precise motion control.
| Model |
SRT-M11 |
| Type |
Digital |
| Bearings |
Double |
| Motor Type |
Coreless |
| Gear Type |
Metal |
| Gear Material |
Titanium and Steel |
| Control System |
Pulse Width Control |
| Operating Frequency |
1520 μs / 330 Hz |
| Operating Voltage |
DC 6.0-8.4 V |
| Operating Speed (6.0 V) |
0.07 s/60 degrees unloaded |
| Operating Speed (7.4 V) |
0.065 s/60 degrees unloaded |
| Operating Speed (8.4 V) |
0.055 s/60 degrees unloaded |
| Stall Torque (6.0 V) |
7.0 kg.cm |
| Stall Torque (7.4 V) |
8.0 kg.cm |
| Stall Torque (8.4 V) |
9.0 kg.cm |
| Potentiometer Drive |
Direct |
| Dimensions |
28.5 x 13.4 x 29 mm |
| Weight |
28 g |
| Connector Cable Length |
170 mm (JR-type connector) |
