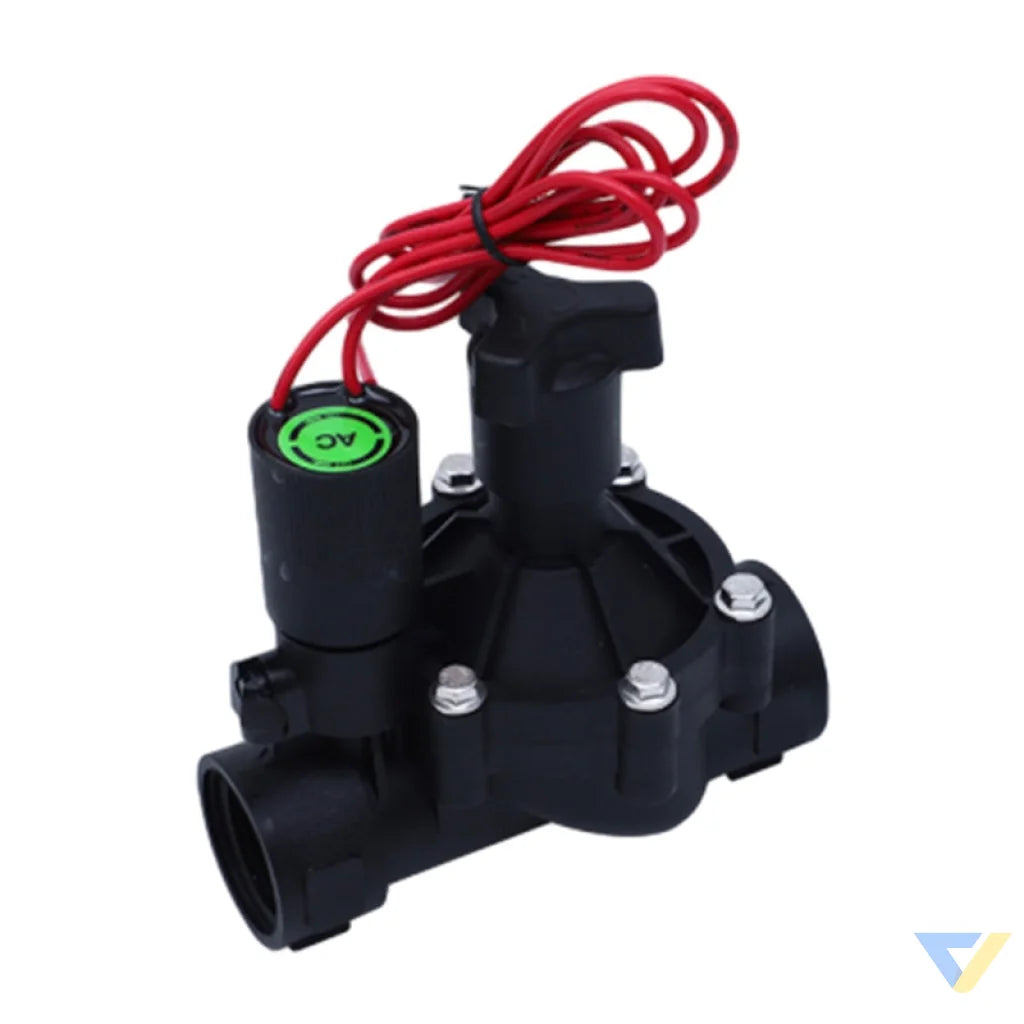

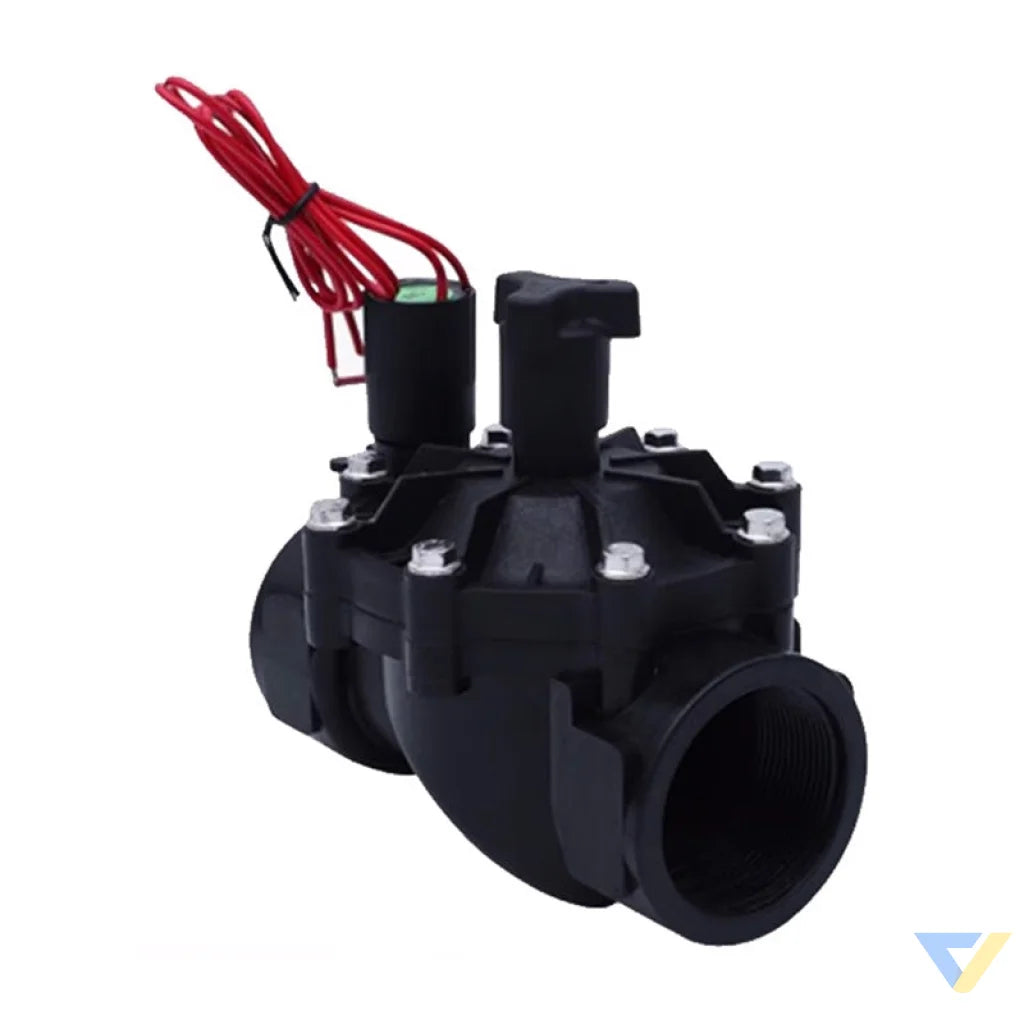

Garden solenoid valves AC 1 " RainPoint
The RainPoint solenoid valve is designed to efficiently control water flow in low-flow irrigation systems. It works well in gardens, greenhouses and other small spaces requiring precise watering management. With 24V AC power and manual flow control capability, the valve combines reliability with convenience.
Effective operation in a variety of conditions
The valve operates over a wide range of flow rates from 0.05 to 9 m³/h and pressures from 0.5 to 8 bar, making it suitable for both simple and more complex installations. Thanks to its ability to withstand liquid temperatures up to 60°C, it can perfectly handle domestic water and diluted soluble fertilizers.
Long life
The fiberglass-reinforced nylon housing provides resistance to mechanical damage and weather conditions, while the EPDM rubber membrane (Ethylene Propylene Diene Monomer, a synthetic rubber with high resistance to weather and chemicals) guarantees tightness and durability. The device is characterized by high resistance to chemical corrosion and cavitation phenomena, which translates into long and trouble-free operation.
Low energy consumption
The valve is characterized by very low current consumption: the starting current is 0.3 A, and the holding current is 0.18 A, which makes it possible to connect several valves to a single controller. The power supply is AC (Alternating Current) 24V ±10%, 50/60 Hz, which is standard in most irrigation control systems.
Ease of use
The valve features a manual switch and flow control knob for easy testing and setup without having to start the entire system. With clear flow direction markings and compact dimensions (126 x 124 x 90 mm), installation is quick and easy.
| Manufacturer |
RainPoint |
| Model |
EVA100 |
| Flow range |
0.05-9 m³/h |
| Pressure range |
0.5-8 bar |
| Liquid temperature |
≤60°C |
| Valve material |
Glass fiber reinforced nylon |
| Membrane |
EPDM rubber |
| Parameters of the electromagnetic head (AC) |
Operating voltage: AC 24V ±10%, 50/60 Hz
Starting current: 0.3 A
Holding current: 0.18 A |
