Name: DJI Video Receiver
Brand: DJI
Price: 1549.0 EUR
Availability: InStock

Описание

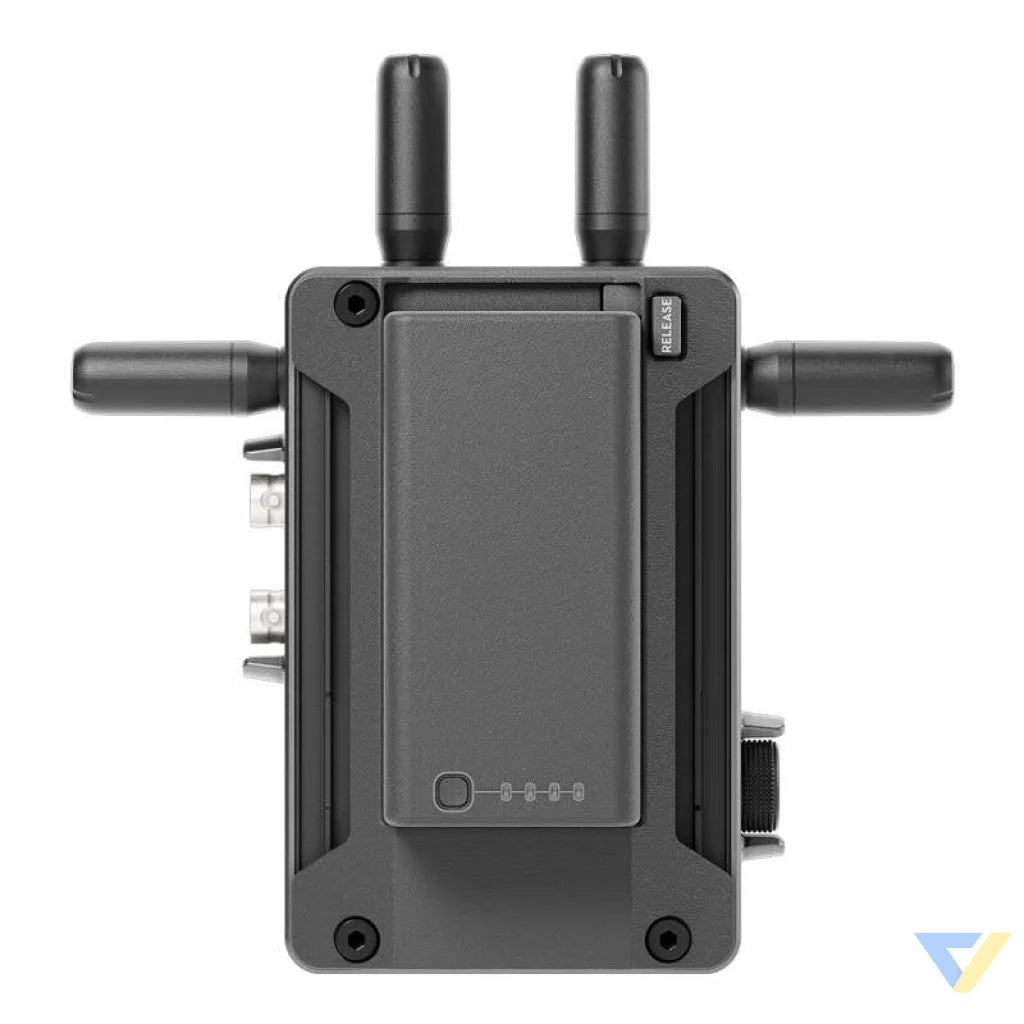

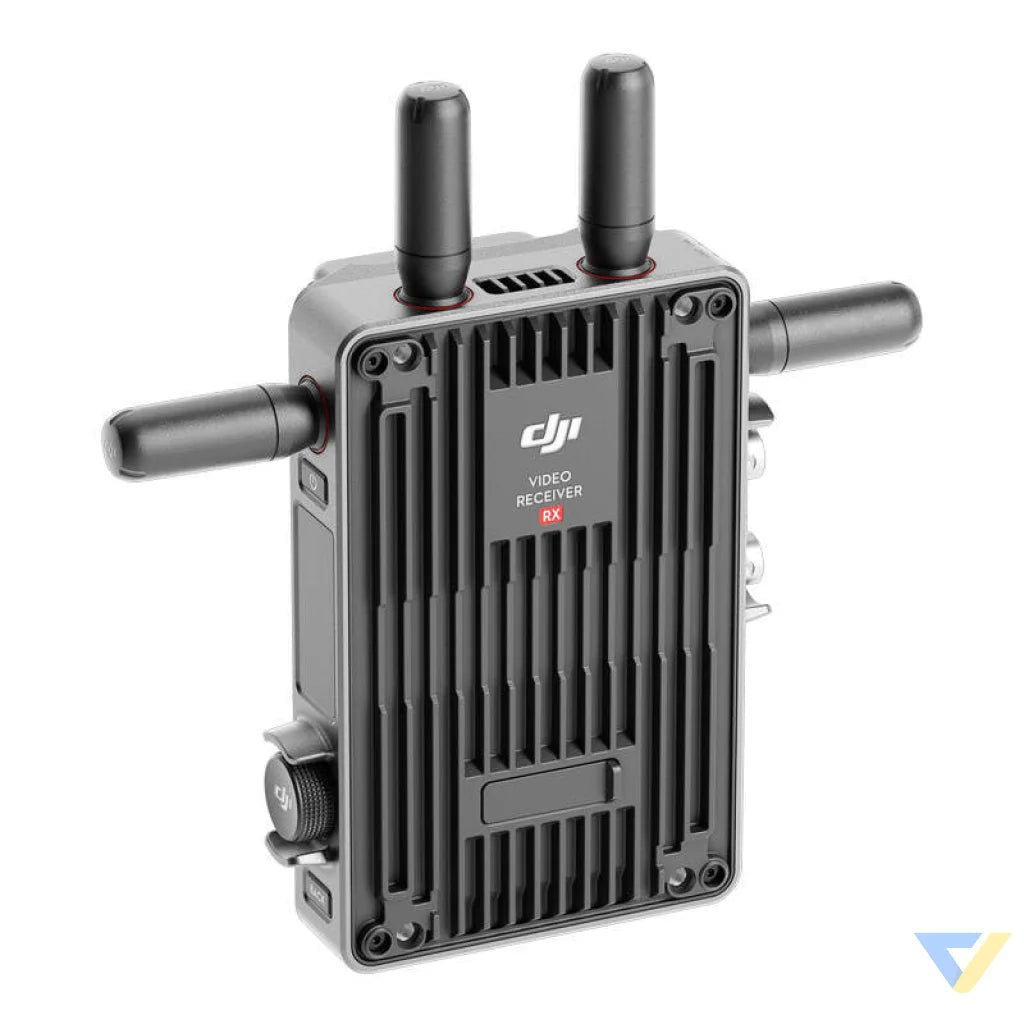

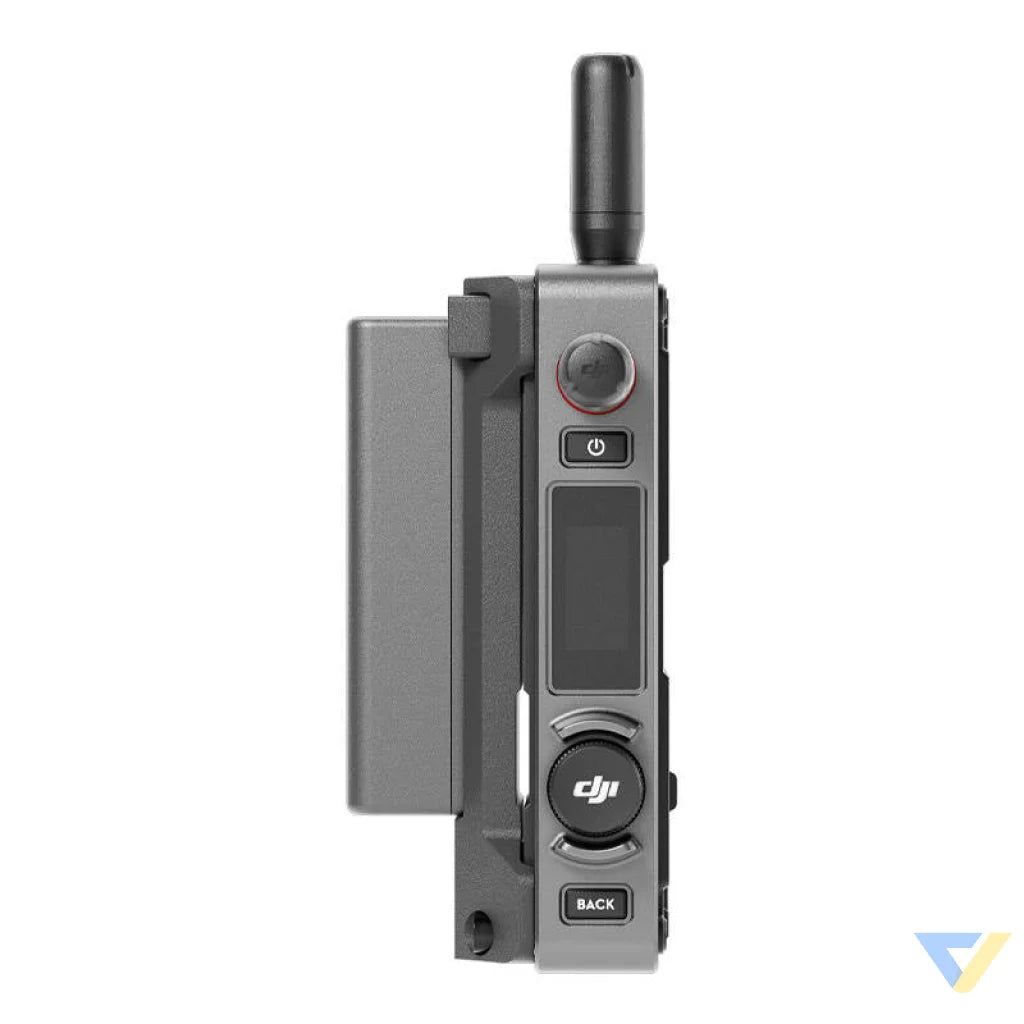

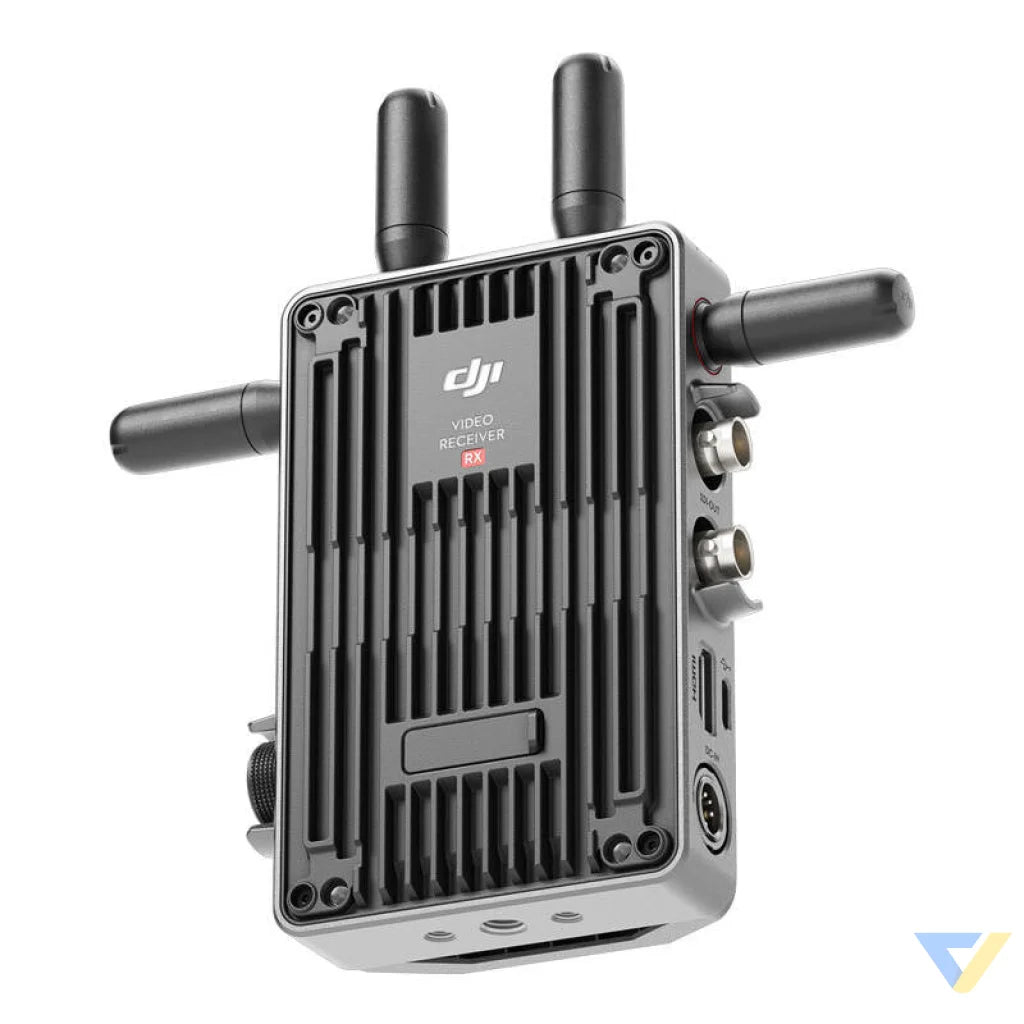

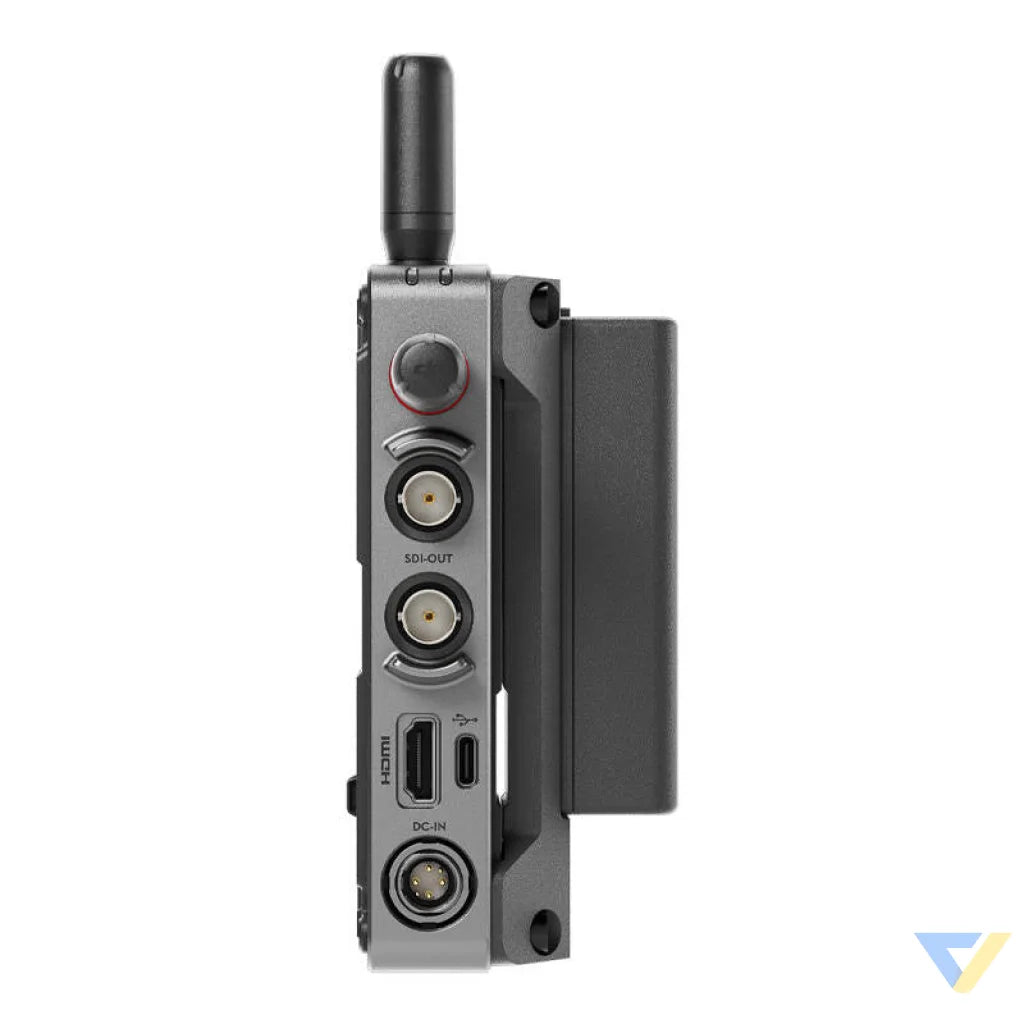

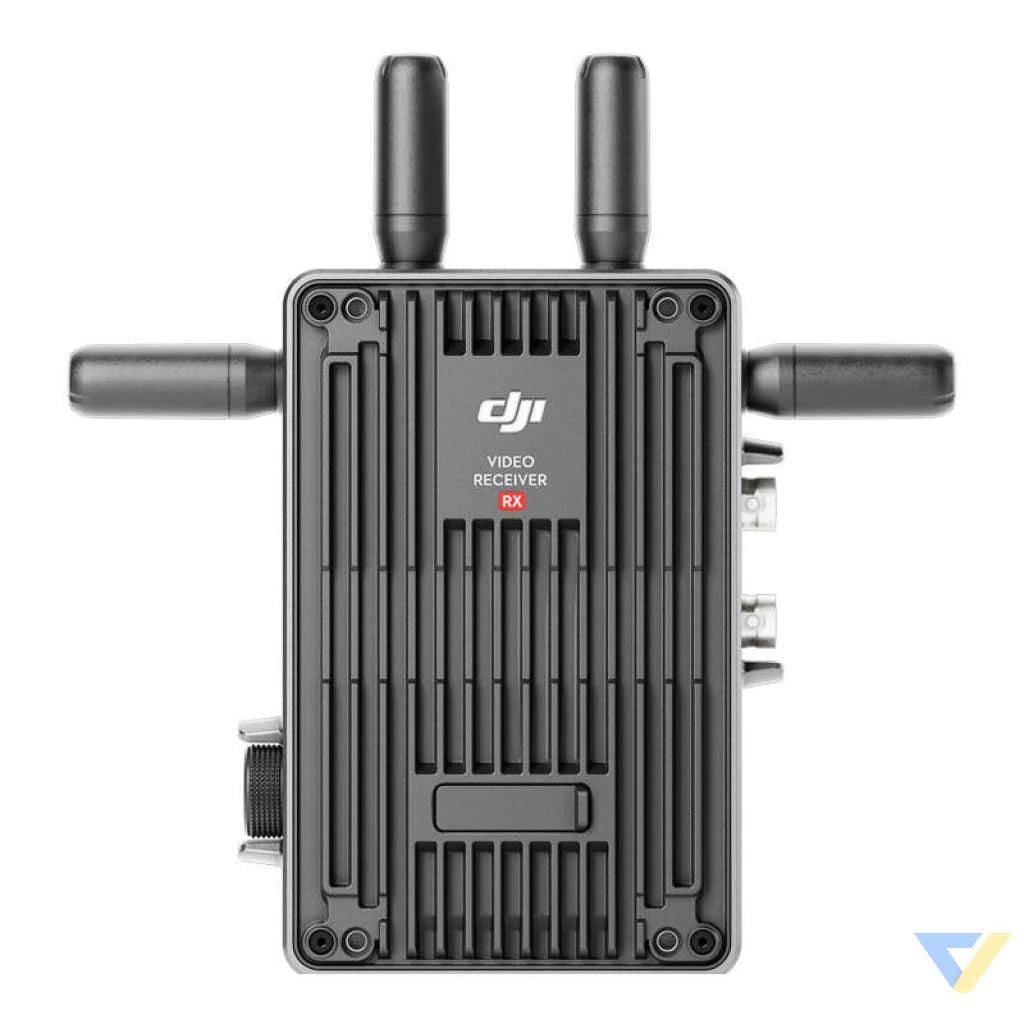

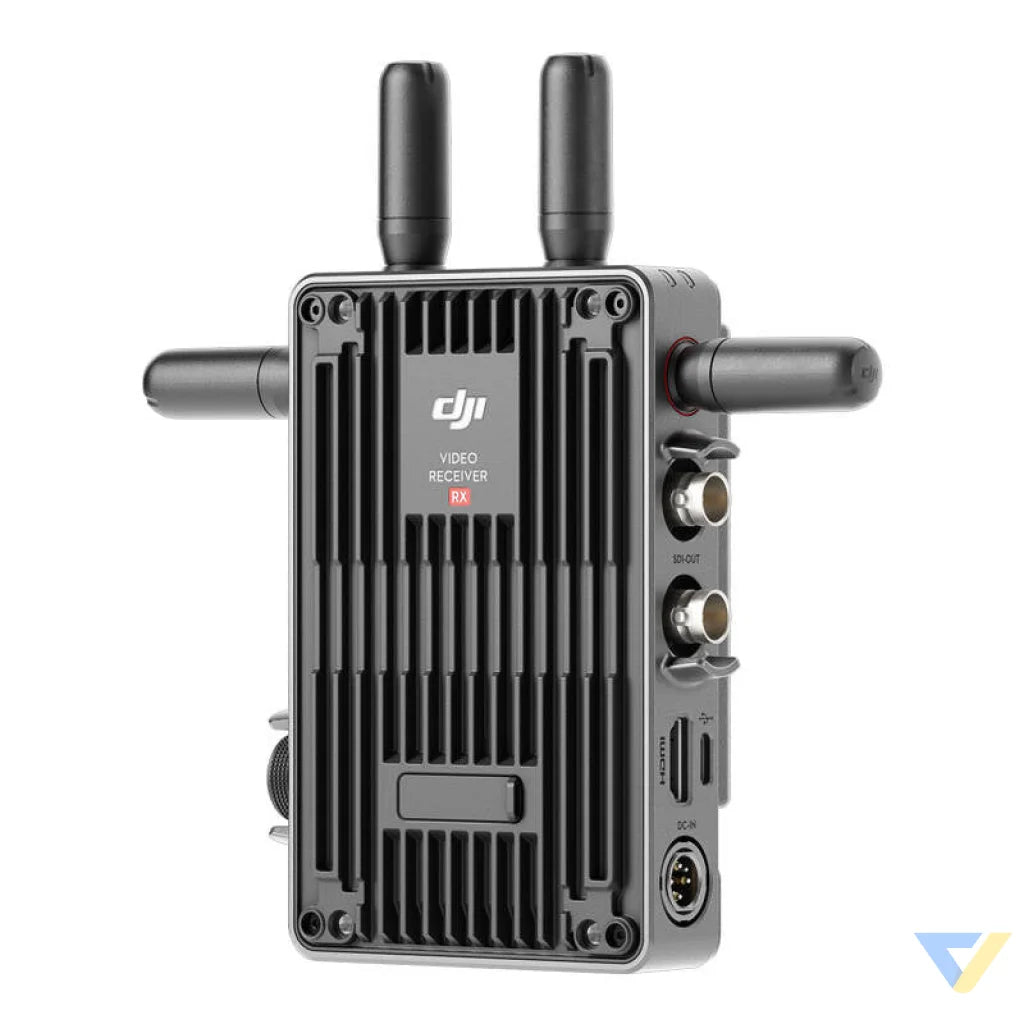

DJI Video Receiver

The DJI Video Receiver is compatible with the DJI Video Transmitter and is ideal for use on film sets. If you use it in conjunction with a film camera such as ARRI or RED, you can conveniently transmit metadata and output video signals with a fractional number of frames per second. The device supports the O3 Pro system, allowing for 1080p/60FPS image transmission up to 4 km. In addition, you can connect an unlimited number of receivers to your transmitter (in Broadcast mode). DJI Video Receiver is also compatible with DJI Master Wheels. Note: DJI Video Transmitter is required to use the DJI Video Receiver.

12DJI/DJI-Video-Receiver/4

Almost Unlimited Possibilities

The receiver supports metadata transmission via SDI, which means you can conveniently transmit file names, time codes, camera settings to monitors and QTAKE. The DJI Video Receiver also allows for real-time voice calls (one-on-one), facilitating communication between the operator and director. The device also offers 2 modes of operation. Broadcast mode allows you to connect an unlimited number of receivers to your transmitter, allowing multiple teams to efficiently monitor work on the film set. Control mode, on the other hand, is suitable for remote control of Ronin 2, DJI RS 3 Pro, and camera focus.

12DJI/DJI-Video-Receiver/1

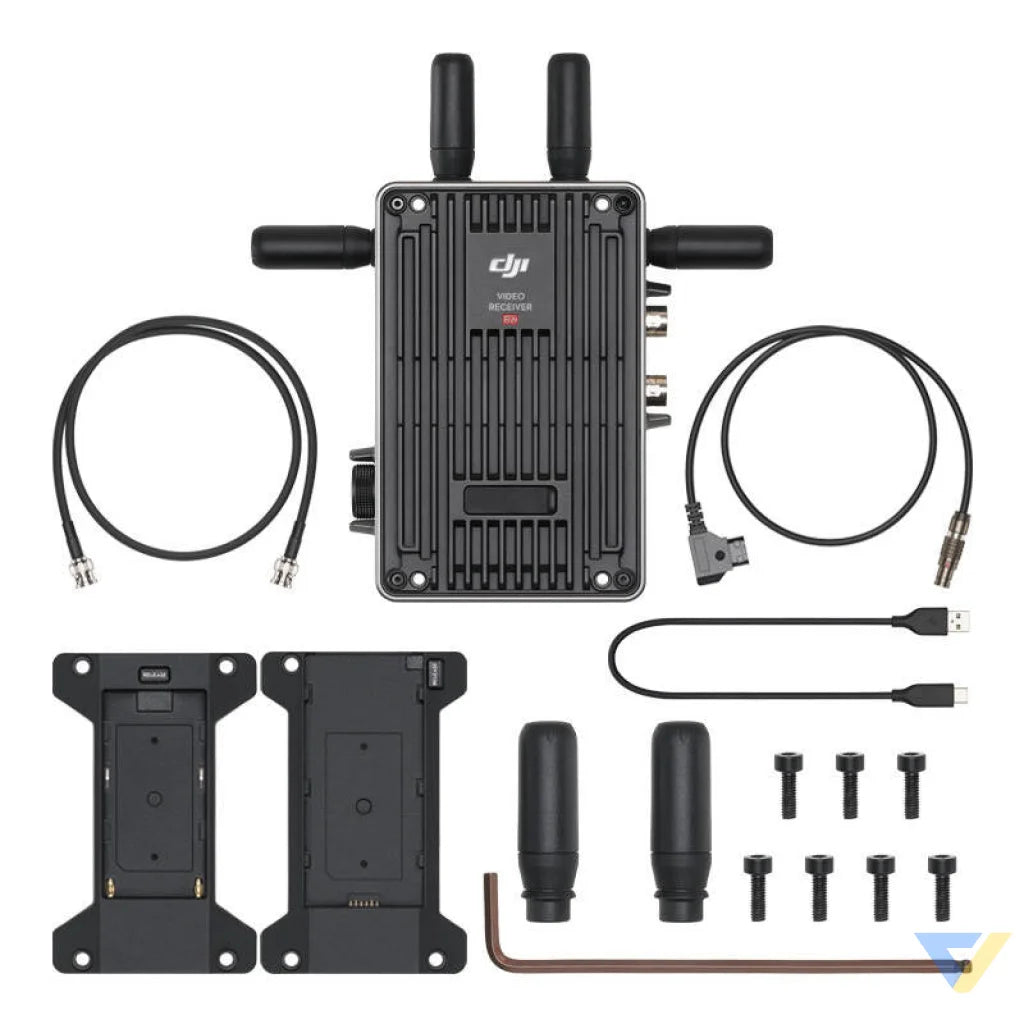

In the box

DJI Video Receiver
NP-F battery adapter
WB37 battery adapter
Ronin x2 video transmission antenna
USB-C cable
SDI cable
DC power cable to P-TAP
Mounting kit

Weight	Approx. 350 g (without antennas)
Dimensions	127 x 87 x 26 mm (L x W x H, without antennas)
Working Frequency	Transmission Band Non-DFS Transmission Band: 2,4000-2,4835 GHz; 5,150-5,250 GHz; 5,725-5,850 GHz; DFS Transmission Band: 5,250-5,350 GHz; 5,470-5,725 GHz; 5,725-5,850 GHz; *In some countries and regions, the 5.1/5.2/5.8 GHz frequencies are prohibited or the 5.1/5.2 GHz frequencies are only allowed for indoor use. For more information, please check the local regulations. Frequencies 5,600-5,650 GHz are not used.
Transmitter Power (EIRP)	2,4000-2,4835 GHz: < 33 dBm (FCC); < 20 dBm (SRRC / CE / MIC); 5,725-5,850 GHz: < 33 dBm (FCC); < 14 dBm (CE); < 23 dBm (SRRC);
Max. Transmission Bandwidth	40 MHz
Max. Bitrate	40 Mbps
Power Consumption	9 W
Supply Voltage	6-18 V
Output Voltage	Power output port: 6-18 V
Operating Time	Approx. 3 h 50 min *Tested at room temperature of 25°C when powered by the intelligent WB37 battery and connected to the DJI Video Transmitter.
Video Format (Output)	With DJI Video Transmitter: 1080p: 23.98/24/25/29.97/30/50/59.94/60FPS; 720p: 50/59.94/60FPS; With Ronin 4D: 1080p: 24/25/30/48/50/60FPS;
Audio Format (Input)	Built-in SDI interface, built-in HDMI interface
Audio Format (Output)	PCM
Video Transmission System	O3 Pro
Video Transmission Delay	70 ms *Measured while recording 1080p/60FPS video.
Video Codecs	H.264
Max. Transmission Range	6 m (FCC); 4 km (CE / SRRC / MIC); *Measured in an open environment without obstacles and interference.
Operating Temperature	From -10°C to 45°C
