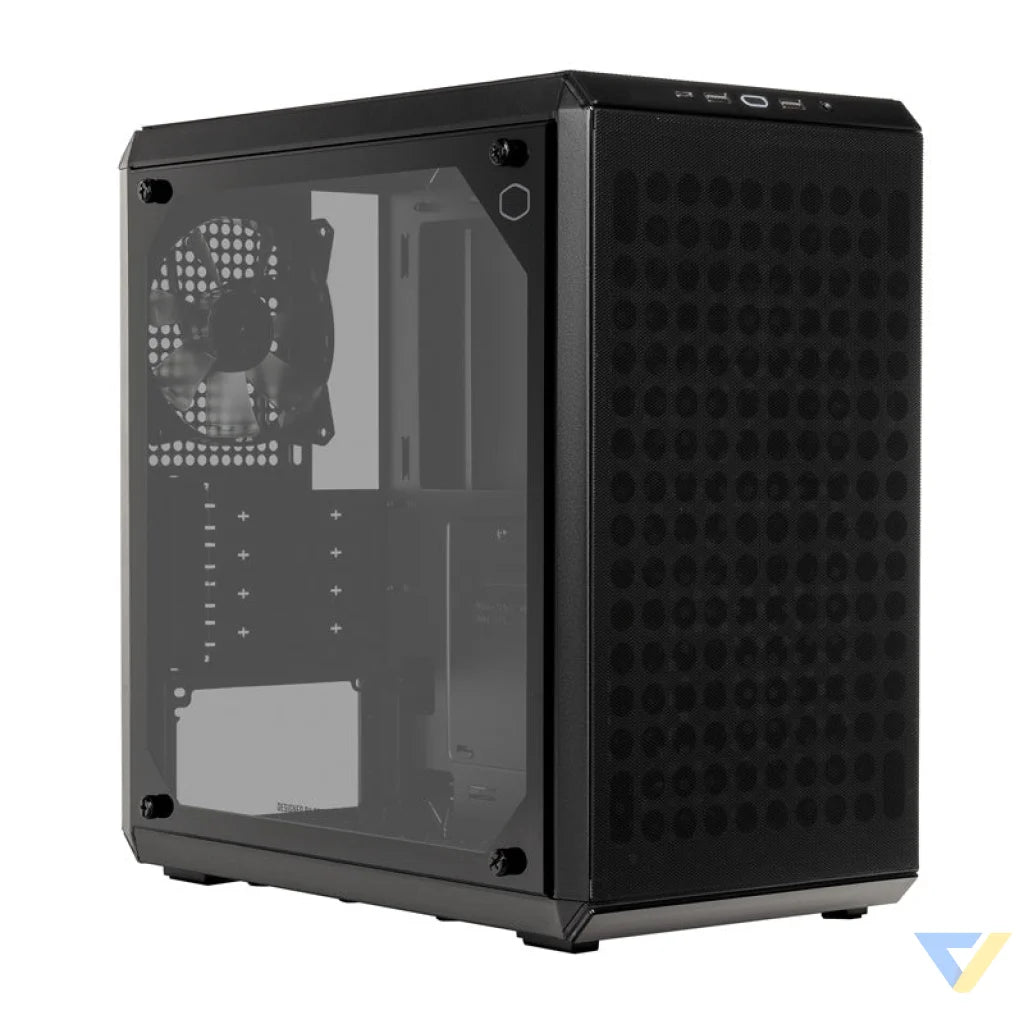

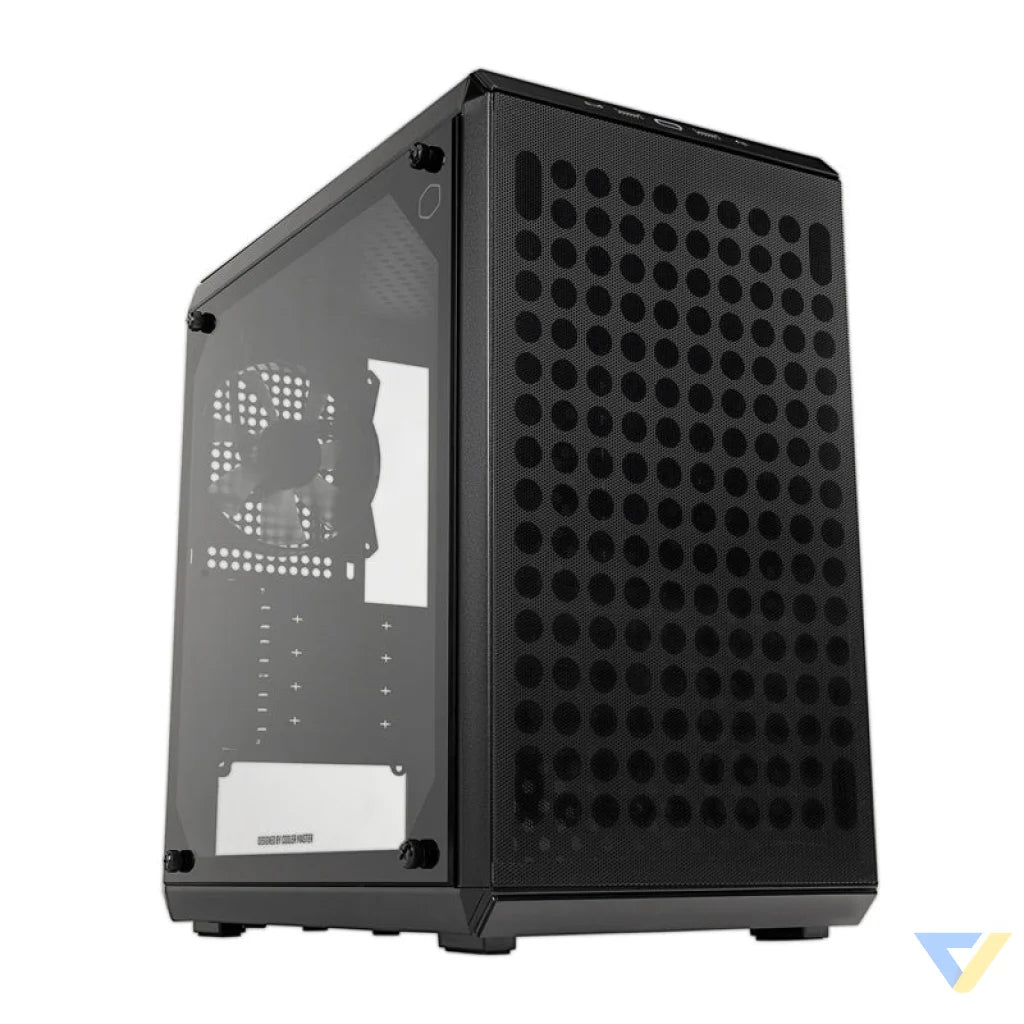

Cooler Master Q300L V2 computer case (black)
The Cooler Master Q300L V2 supports Micro-ATX and Mini-ITX motherboards and offers space for a standard ATX bottom-mounted power supply. It has 4 expansion slots, two bays for 2.5" drives, one for 3.5" and provides space for CPU cooling up to 159mm in height and a graphics card up to 360mm in length. The panel featuresamong others. with two USB 3.2 Gen 1 ports and one USB 3.2 Gen 2x2 Type C port.
Support for high-speed data transfer - USB 3.2 Gen 2x2

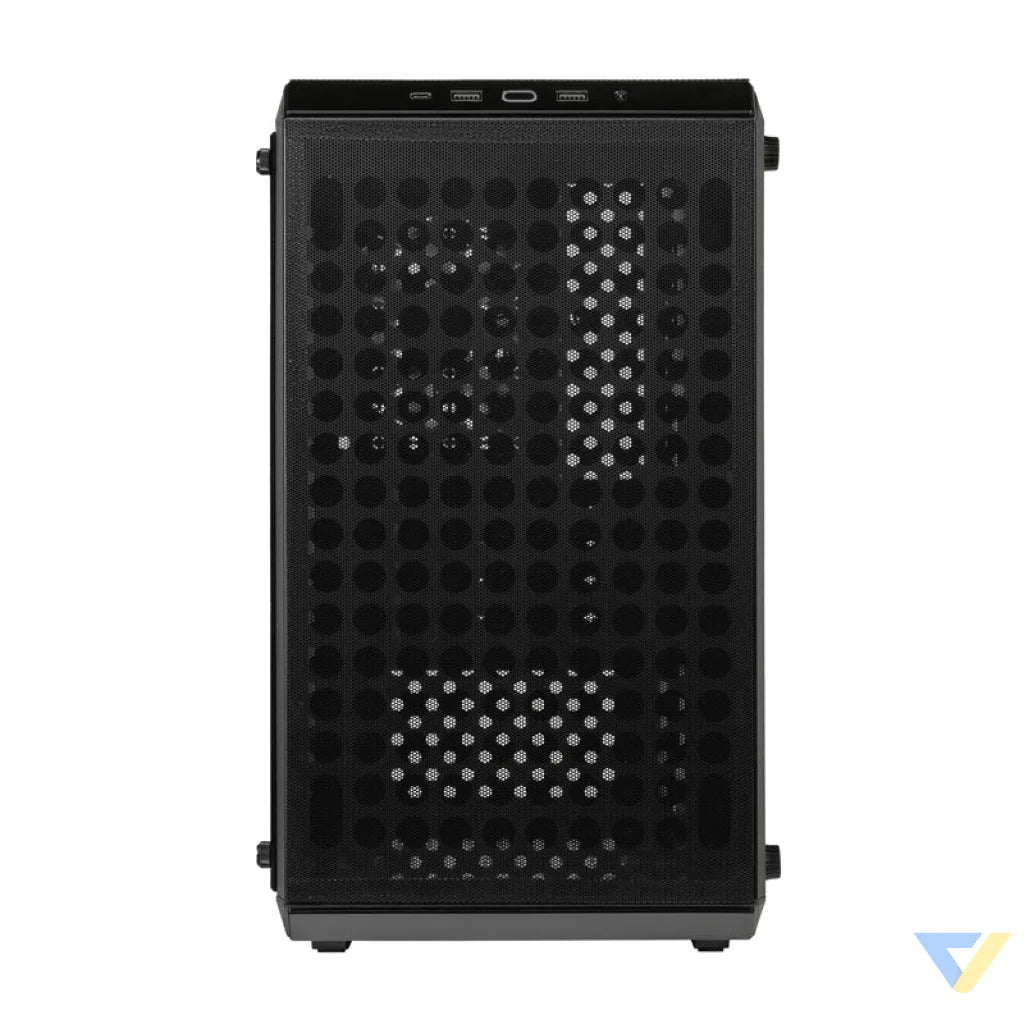

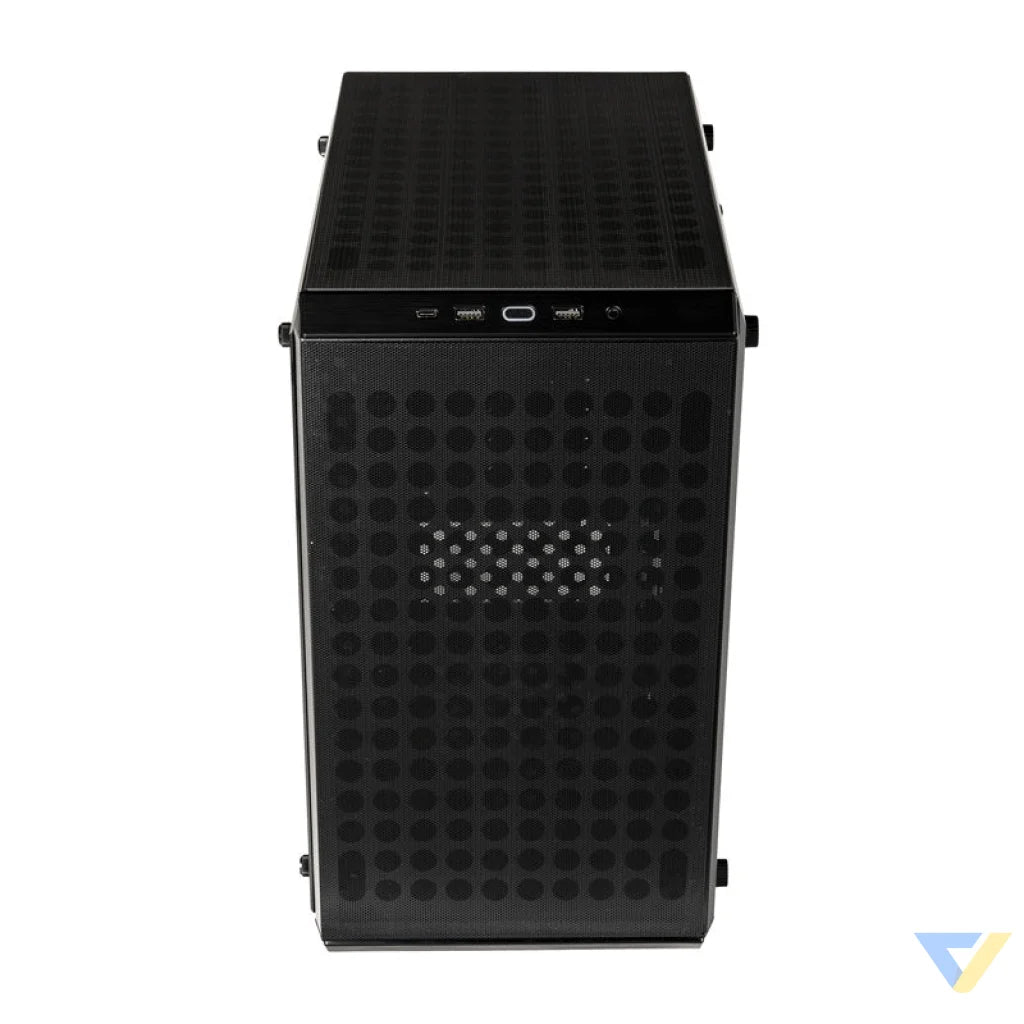

The front panel features a USB 3.2 Gen 2x2 Type C connector, which supports data transfer speeds of up to 20 Gbps. Next to it, there are also two classic USB 3.2 Gen 1 Type A ports and an audio jack.
Optimized cooling and free airflow
The front, top and bottom of the case are perforated, which translates into better air circulation inside. The case allows the installation of up to 6 fans: two 120/140 mm fans on the front, two 120 mm fans on the top, one 120 mm fan on the back (pre-installed) and one 120 mm fan on the bottom. A 120 or 240 mm water cooler can also be mounted on the front.
Glass side panel
On the left side is a panel made of tempered glass with a thickness of 4 mm. It is fixed by screws with handles, so it can be easily removed and reinstalled. The transparent wall exposes the computer's interior and components.
Refined design

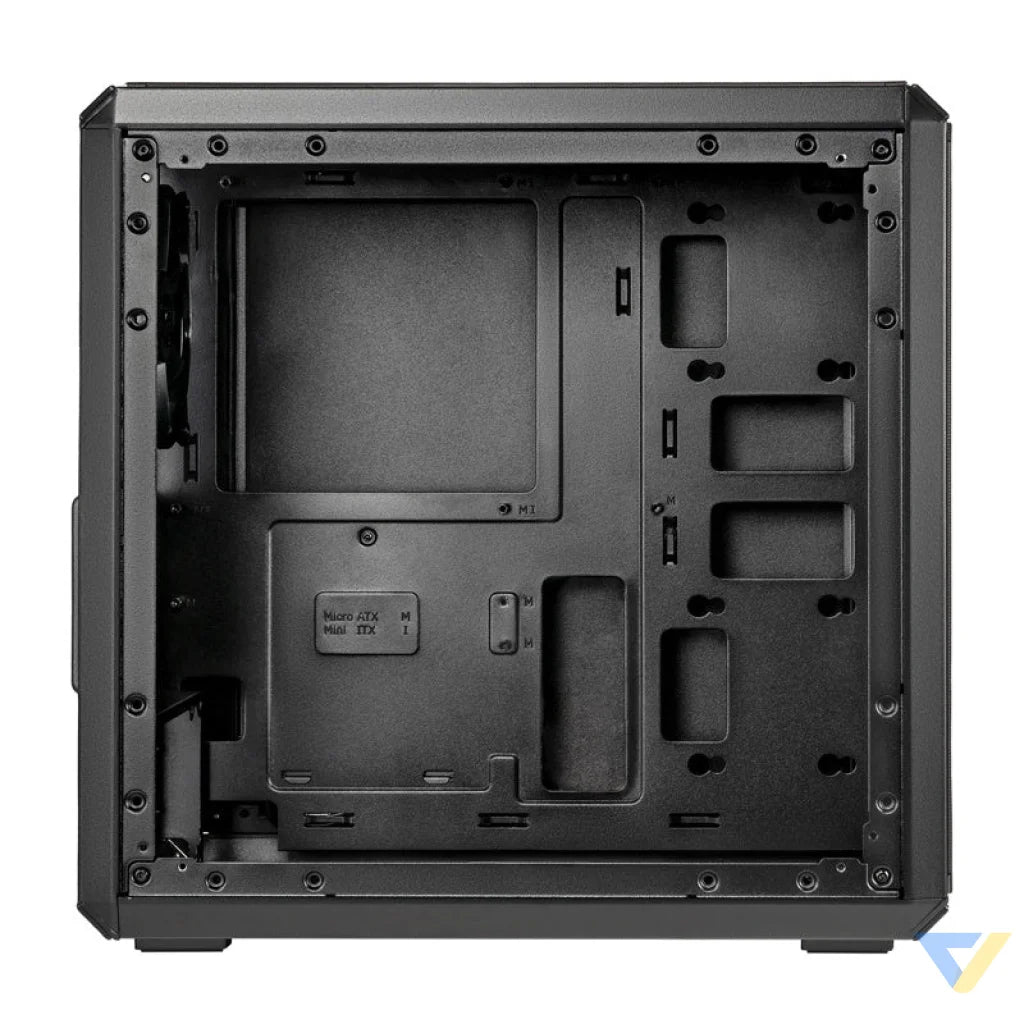

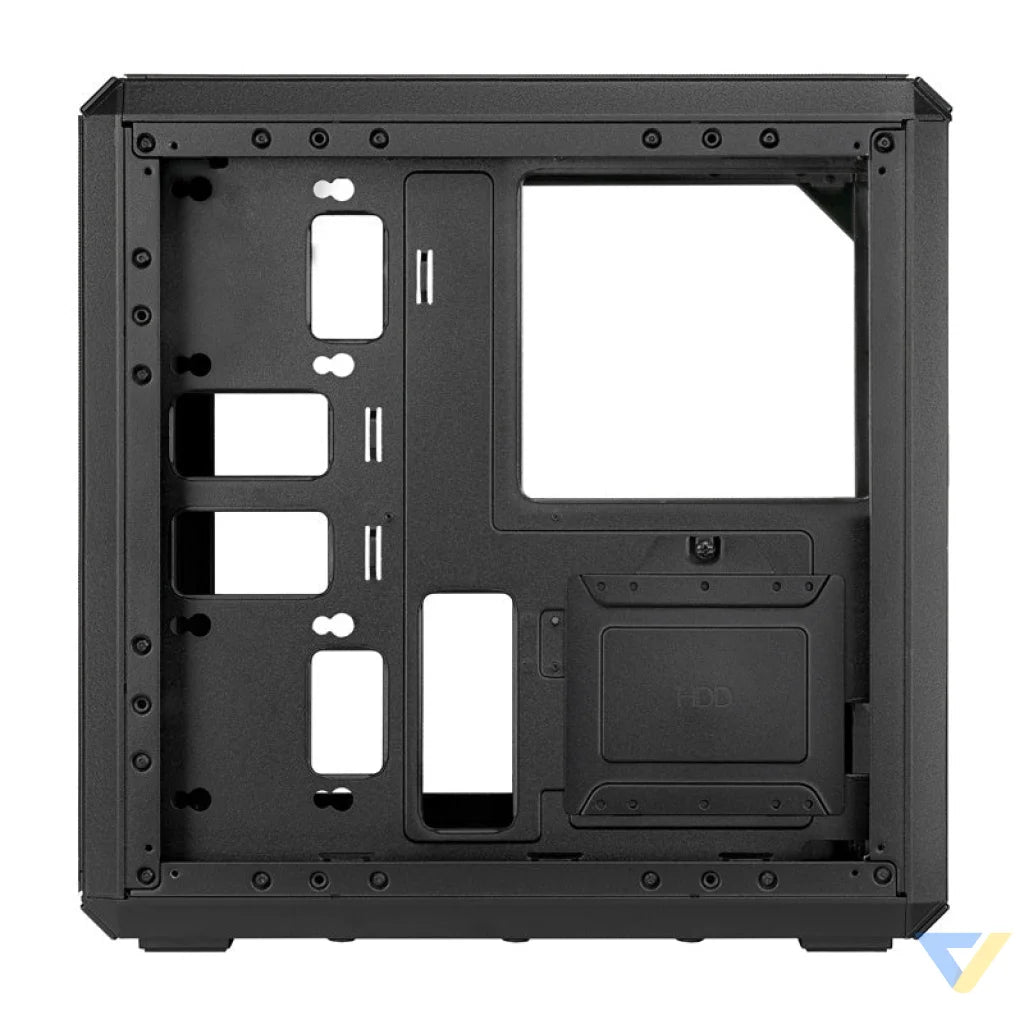

Behind the motherboard there is 28 mm of space for cable routing. This makes it easy to hide and organize them, which not only improves aesthetics, but also promotes free airflow in the case. In addition, the anti-scratch filters located in 3 places (front, top, bottom) are easy to remove and clean.
| Manufacturer |
Cooler Master |
| Model |
Q300L V2 |
| Product code |
Q300LV2-KGNN-S00 |
| Color |
black |
| Material |
steel, plastic |
| Side panel |
tempered glass |
| Height |
383 mm |
| Depth |
387 mm |
| Width |
230 mm |
| Capacity |
29l |
| Motherboard standard |
Micro-ATX, Mini-ATX |
| Expansion card slots |
4 |
| Internal drive bays |
3.5" HDD x1; 2.5" SSD x2 |
| Connectors |
x2 USB-A 3.2 Gen 1; x1 USB-C 3.2 Gen 2; x1 audio jack |
| Number of fans installed |
x1 120 mm |
| Fan mounting options |
Top: x2 120 mm; Front: x2 120 mm / x2 140 mm; Rear: x1 120 mm; Bottom: x1 120 mm |
| Water cooling mounting options |
front: 120/240 mm; rear: 120 mm |
| Max. height of CPU cooler |
159 mm |
| PSU length |
160 mm |
| Length of graphics card |
360 mm |
| Cable routing |
28 mm |
| Dust filter |
front, top, bottom |
| Power supply standard |
ATX, bottom |
