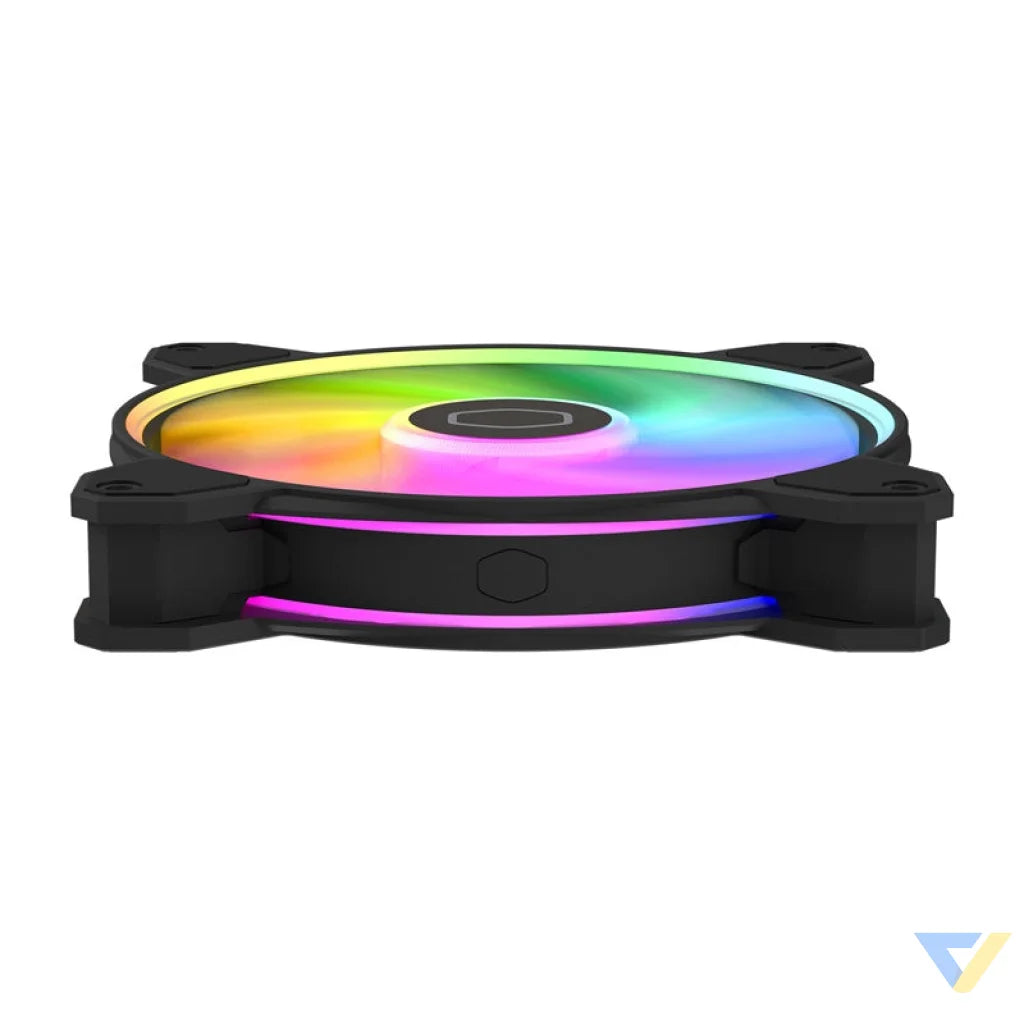

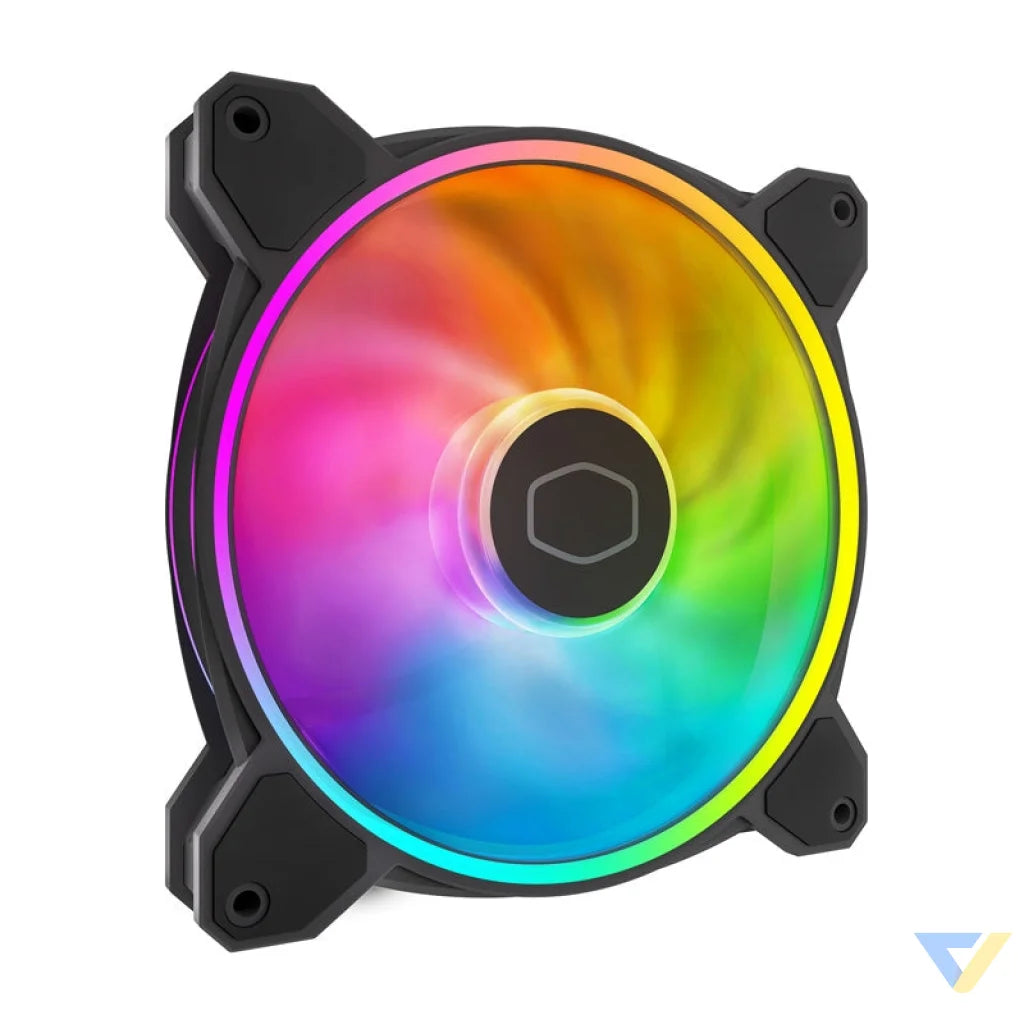

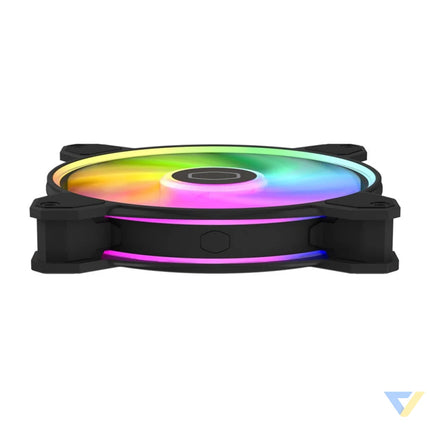

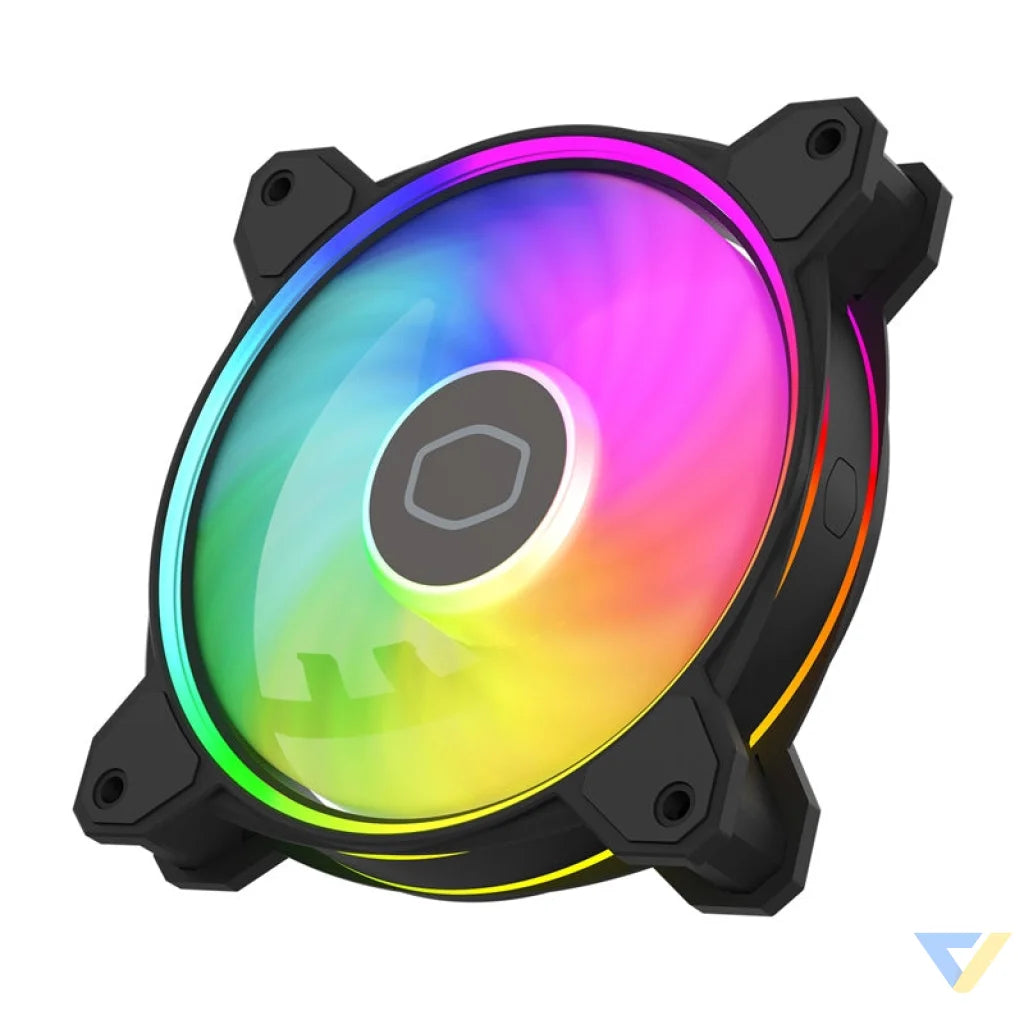

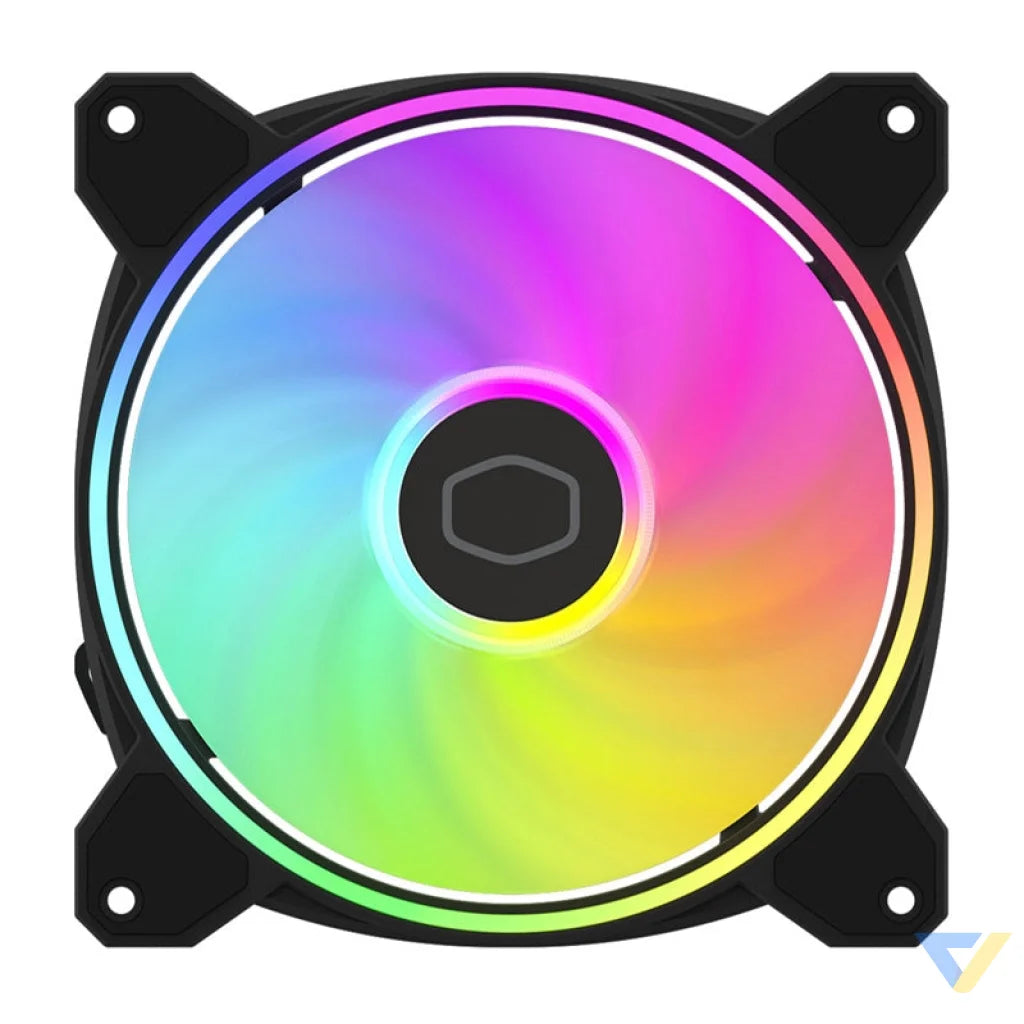

Cooler Master MasterFan MF140 Halo2 fan (black)
The MasterFan MF140 Halo² is a 140mm fan designed for efficient cooling. It offers a speed of up to 1600 rpm ± 5%, an airflow of 101 m³/h (59.51 CFM) and a static pressure of 2.53 mmH₂O. It uses a 4-pin PWM connector and has a 3-pin ARGB connector for Gen 2 RGB backlighting. The noise level is 27 dB(A), and the trouble-free operation time exceeds 160,000 hours.
Larger blades - better cooling
Compared to the previous version, the MF140 Halo² features blades that have been enlarged by 10%. As a result, the fan generates better airflow and dissipates heat from the case or heatsink more efficiently, ensuring lower temperatures while maintaining stable operation.

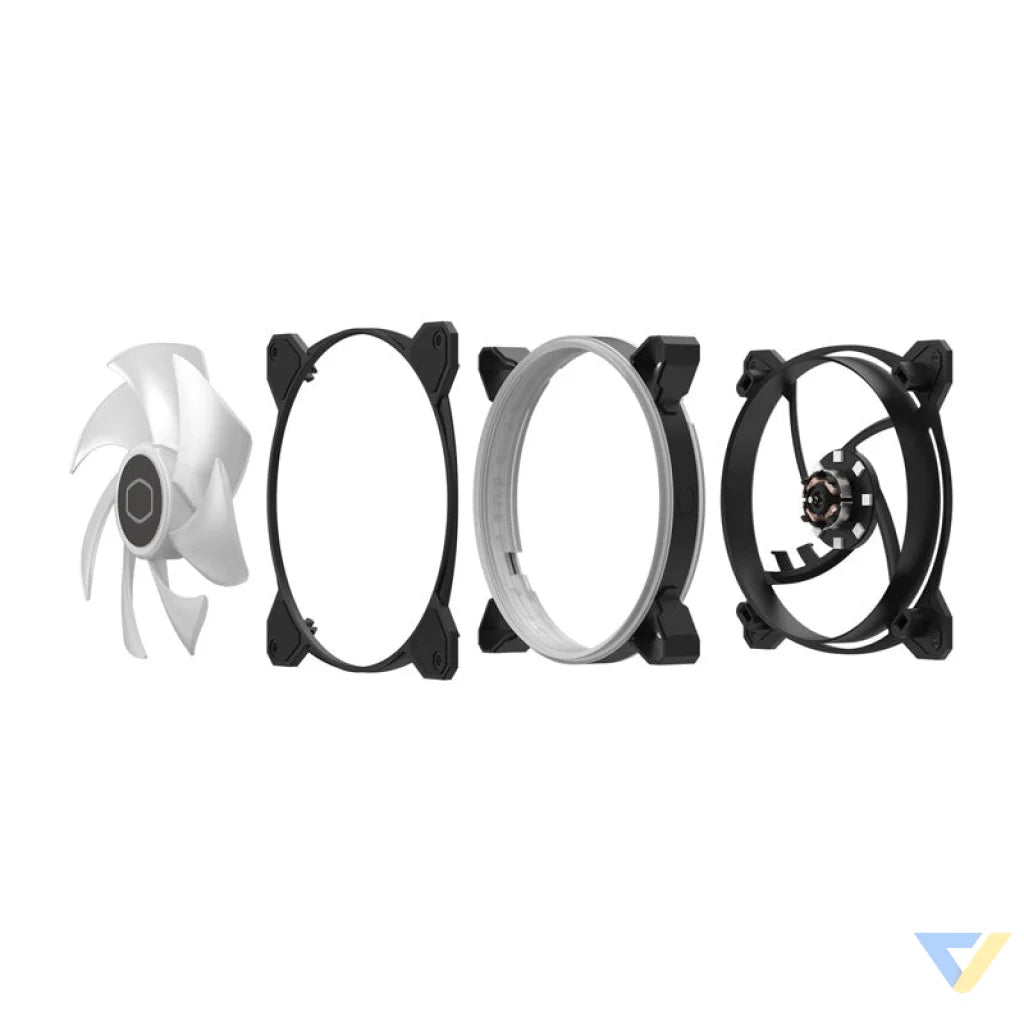

Stable design - hybrid frame
The fan's housing is designed with a hybrid frame, which increases the stability of operation without restricting the working space of the blades. This translates into reliability and high operating efficiency over a long service life.
Upgraded IC controller
The new version of the MF140 Halo is equipped with an improved driver IC that improves cooling performance while reducing the noise generated during operation. As a result, the fan performs better in demanding conditions without increasing sound levels.
ARGB backlighting - a striking look with full customization
The fan features a dual LED ring with Gen 2 RGB addressable backlighting (3-pin ARGB, 5V). The lighting can be easily synchronized with compatible motherboards and software, allowing you to customize the lighting effects to match the style of your entire kit.
| Manufacturer |
Cooler Master |
| Model |
MasterFan MF140 Halo² |
| Product code |
MFL-B4DN-16NP2-R2 |
| Color |
Black |
| Material |
Plastic |
| Dimensions |
140 × 140 × 25 mm |
| Backlight type |
Addressable RGB Gen 2 (ARGB) |
| Rotational speed |
0-1600 RPM (±5%) |
| Airflow |
101 m³/h (59.51 CFM) |
| Noise level |
27 dB(A) |
| Bearing type |
Rifle (plain bearings with grease grooves) |
| Static pressure |
2.53 mmH₂O |
| MTTF (mean time without failure) |
more than 160,000 hours |
| Power connector |
4-pin PWM |
| Rated voltage |
12 V DC |
| Current consumption |
0,13 A |
| Safe current |
max. 0.4 A |
| Power consumption |
1,56 W |
| Connector (RGB backlight) |
3-pin ARGB |
| Rated voltage (RGB backlight) |
5 V DC |
| Current consumption (RGB backlight) |
0,77 A |
| Weight |
210 g |
