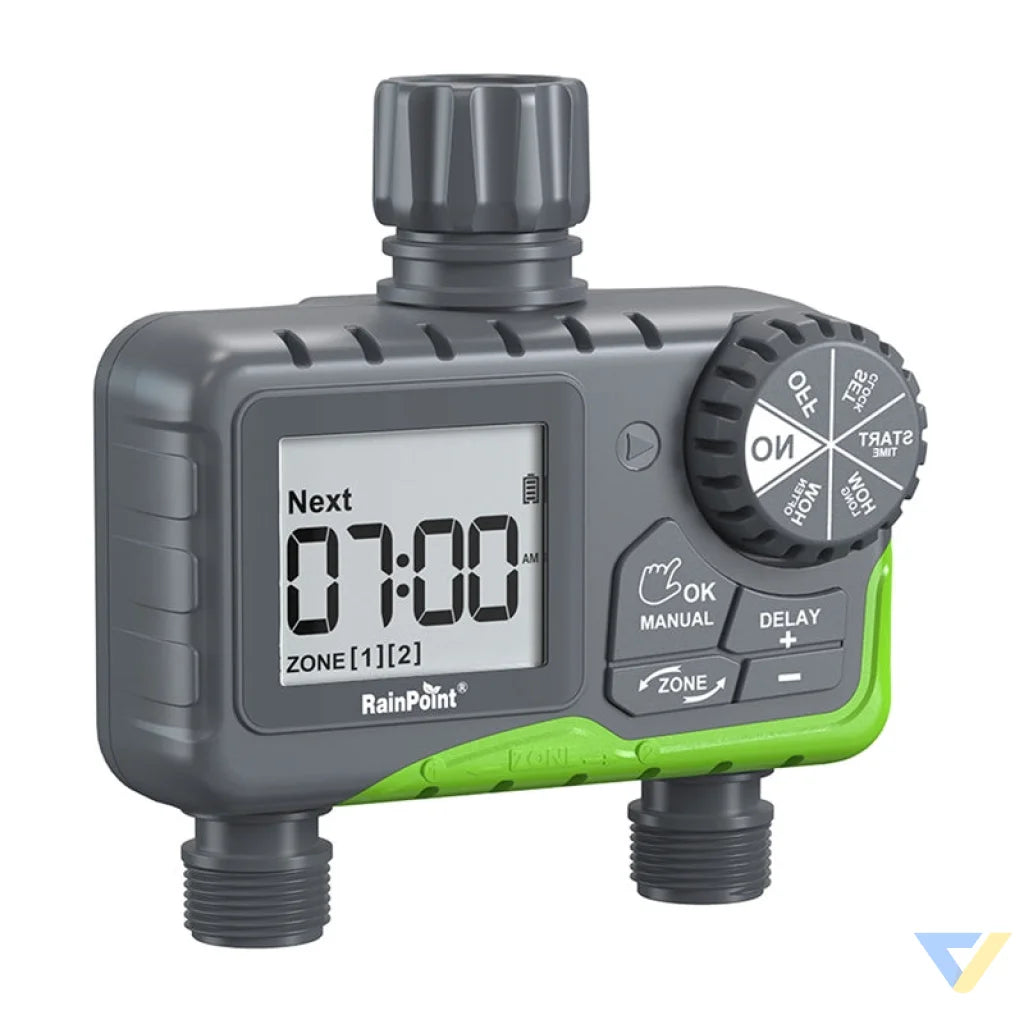

2-Zone Hose Timer Raintpoint ITV205
The RainPoint ITV205-DLS 2-zone irrigation controller allows you to program two areas of your garden separately. A large LCD (Liquid Crystal Display) screen and intuitive dial with zone selection function make it easy to set up schedules. Each zone can have an individually set start time, length and frequency of watering. A manual operation mode and a rain delay watering function add flexibility to the operation. The IP65 (International Protection Rating - a rating against dust and water jets) waterproof rating and built-in filter ensure safe and durable outdoor use.
Programming for two zones
Each zone can be set separately - both the start time, duration (from 1 minute to 3 hours and 59 minutes) and cycle frequency (every 1-12 hours or every 1-7 days). This makes it possible to fine-tune watering for different types of plants or areas of the garden.
Watering Delay
The Rain Delay function allows you to delay the watering cycle by 24, 48 or 72 hours. Such a solution will come in handy when rainfall is forecast and will avoid over-watering the soil.
Manual mode
Watering can be started manually at any time without interfering with the programmed schedule. The OK MANUAL button allows quick access to this function, useful, for example, for garden work or temporary water needs.
Easy configuration
Settings are changed using the dial and function buttons. On the easy-to-read LCD screen you can read the current mode, the schedule for each zone and the operation status. It is possible to choose a 12-hour or 24-hour time format.
Durability and robustness
The controller supports an operating pressure range of 0.5-8 bar and a flow rate of up to 35 l/min. BSP (British Standard Pipe) threads fit standard 3/4" and 1" faucets, and a built-in filter protects the system from contaminants. The housing meets the IP65 standard, which means resistance to dust and water jets.
Included:
- 2-zone irrigation controller
- Sealing tape
- Spare gasket x2
- Mounting nut
- Quick start guide
- Owner's Manual
| Manufacturer |
RainPoint |
| Model |
ITV205 |
| Working pressure |
0.5-8 bar |
| Maximum flow |
35 l/min |
| Waterproof class |
IP65 |
| Working temperature range |
3°C - 50°C |
| Operating voltage |
DC 2.3V - 3.3V |
| Watering frequency |
every 1-12 hours or every 1-7 days |
| Duration of irrigation |
from 1 minute to 3 hours 59 minutes |
| Water inlet |
BSP for 3/4" or 1" faucet |
| Water outlet |
for 3/4" garden hose |
| Power supply |
2× AA batteries (1.5V, not included) |
