Description

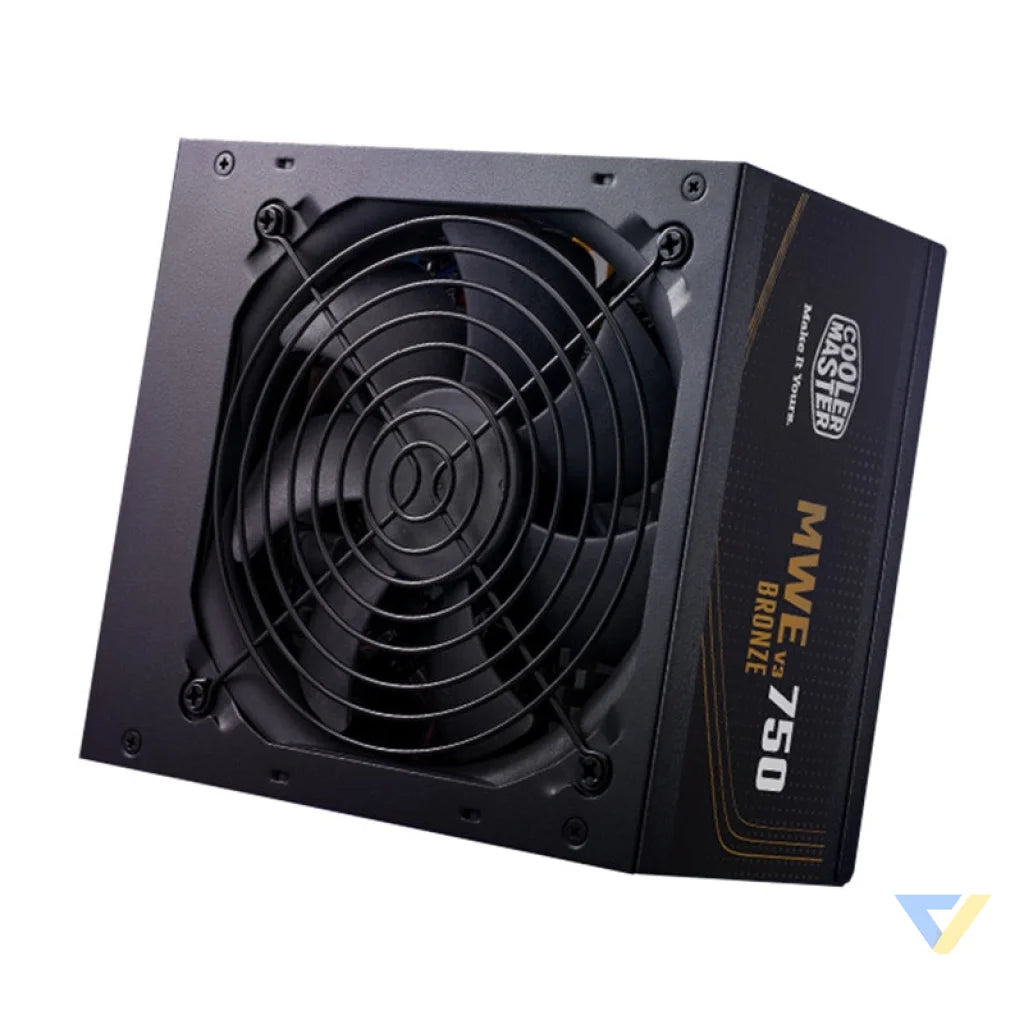

Cooler Master MWE BRONZE 750 V3 230V power supply unit.
The Cooler Master MWE Bronze 750 V3 230V power supply is an updated version of the popular series, designed for users who need a stable and efficient power supply. It meets the ATX 3.1 standard and offers active PFC, which translates into better voltage control and higher efficiency. Its compact dimensions (140 × 150 × 86 mm) allow it to fit seamlessly into most ATX cases. This model is equipped with a set of safety features and a quiet 120 mm fan.
ATX 3.1 compatibility and modern cabling
Thanks to its compatibility with the standard ATX 12V Ver. 3.1, the power supply supports the latest computer components and provides better voltage balance under varying loads. Braided cables are resistant to damage and facilitate aesthetic cable management in the case. The non-modular design ensures that all necessary connectors are available immediately after installation.
Stable operation in high temperatures
The power supply can operate at temperatures as high as 40°C, which allows it to be used in heavily loaded sets - both for gaming and creative work. Thanks to its high-quality components and design, the MWE Bronze 750 V3 remains stable even in less favorable conditions.

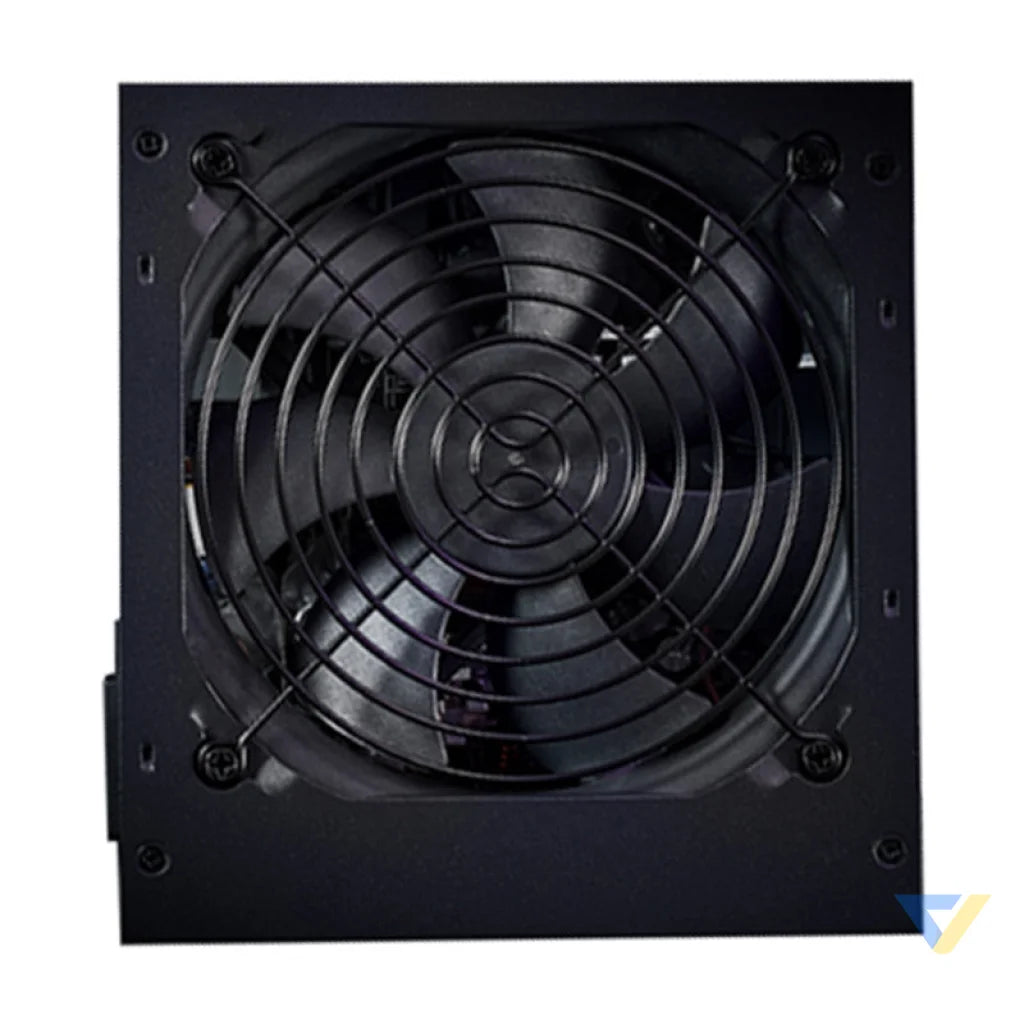

Quiet cooling
The HDB (Hydro Dynamic Bearing) fan combines quiet operation with good cooling culture. The unit offers an efficiency of more than 88% under typical load, as confirmed by the 80 PLUS Bronze EU 230V certification. In practice, this means less energy loss, lower electricity bills and less heating inside the computer. The manufacturer has also provided a set of protections, such as UVP, OVP, SCP and OTP, and the whole is covered by a 5-year warranty.
| Manufacturer |
Cooler Master |
| Model |
MPE-7501-ACABW-3BEU |
| ATX version |
ATX 12V Ver. 3.1 |
| PFC |
Active PFC |
| Input voltage |
200-240V |
| Input current |
6A |
| Input frequency |
50-60Hz |
| Dimensions (L x W x H) |
140 x 150 x 86 mm |
| Fan size |
120 mm |
| Fan bearing |
HDB |
| Efficiency |
>88% at typical load |
| 80 PLUS rating |
80 PLUS Bronze EU 230V |
| ErP 2014 Lot 3 |
Yes |
| Operating temperature |
0-40°C |
| Power signal |
100 - 150 ms |
| Hold time |
>16 ms |
| MTBF |
>100,000 hours |
| Security |
UVP / OVP / OPP / OTP / SCP |
| Regulations |
TUV, CE, FCC, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (depending on region). |
| 24-pin ATX connectors |
1 |
| EPS 8-pin / 4+4-pin connectors |
2 |
| SATA connectors |
6 |
| 4-pin peripheral connectors |
3 |
| PCI-e 6+2 pin connectors |
4 |
| Warranty |
5 years |
| series |
MWE Bronze Series |
| Category |
500 to 750W |
| Modular |
Non-modular |
| Efficiency certification |
80 PLUS Bronze (EU 230V) |
| Format |
ATX |
| Rated power |
750W |
