Description

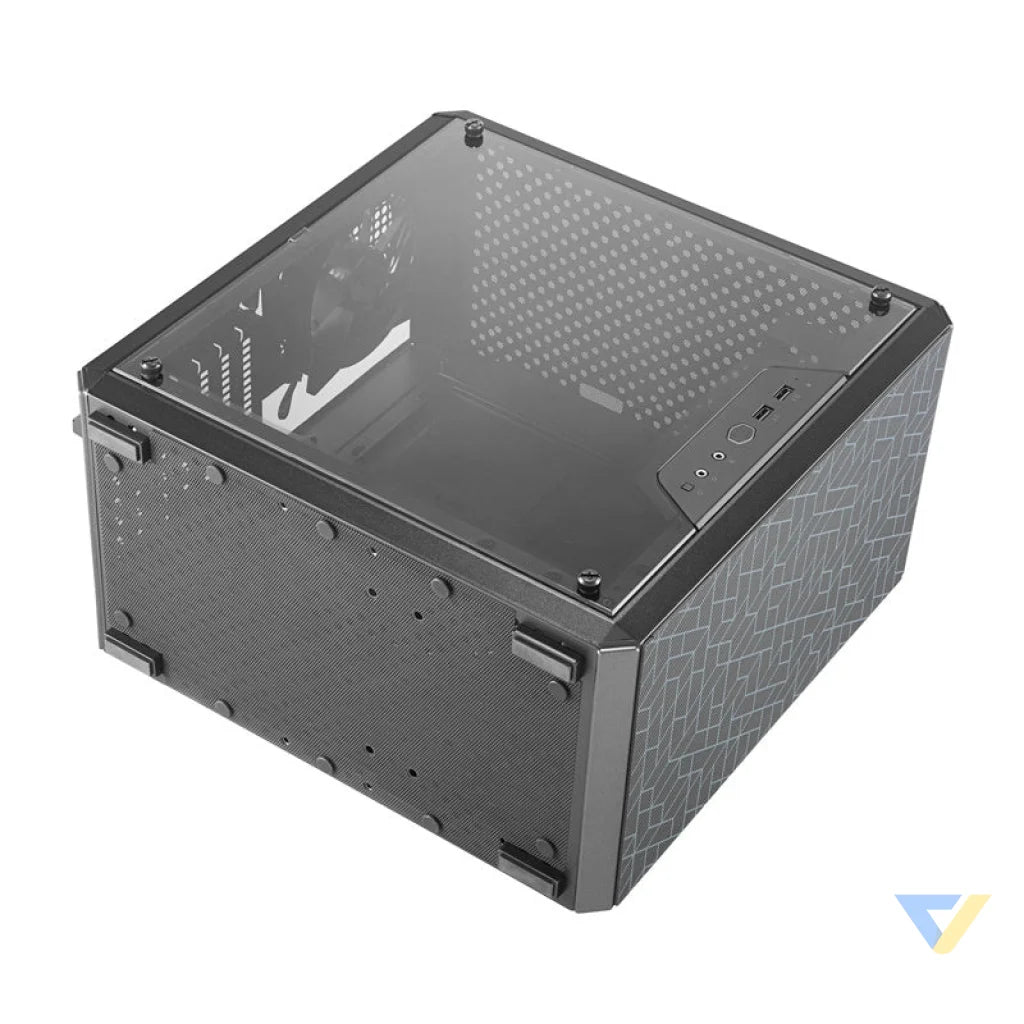

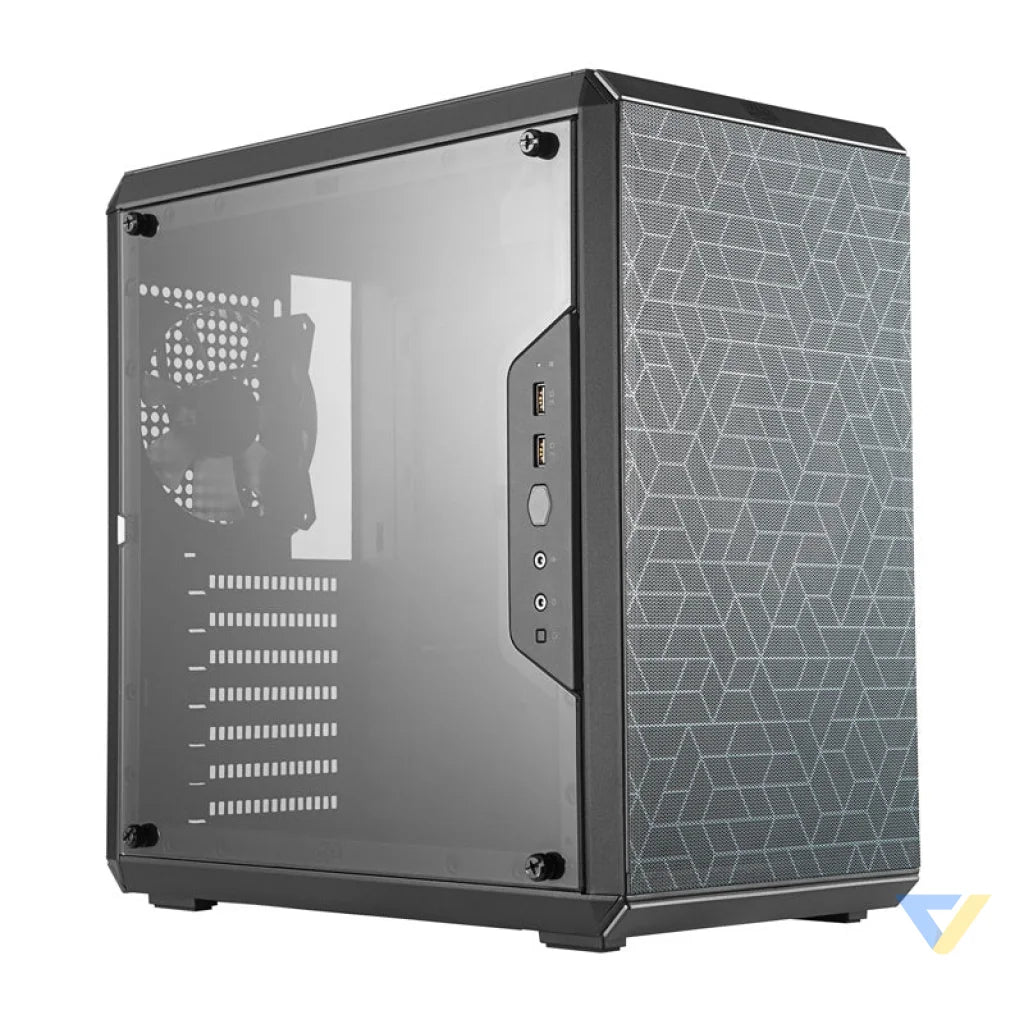

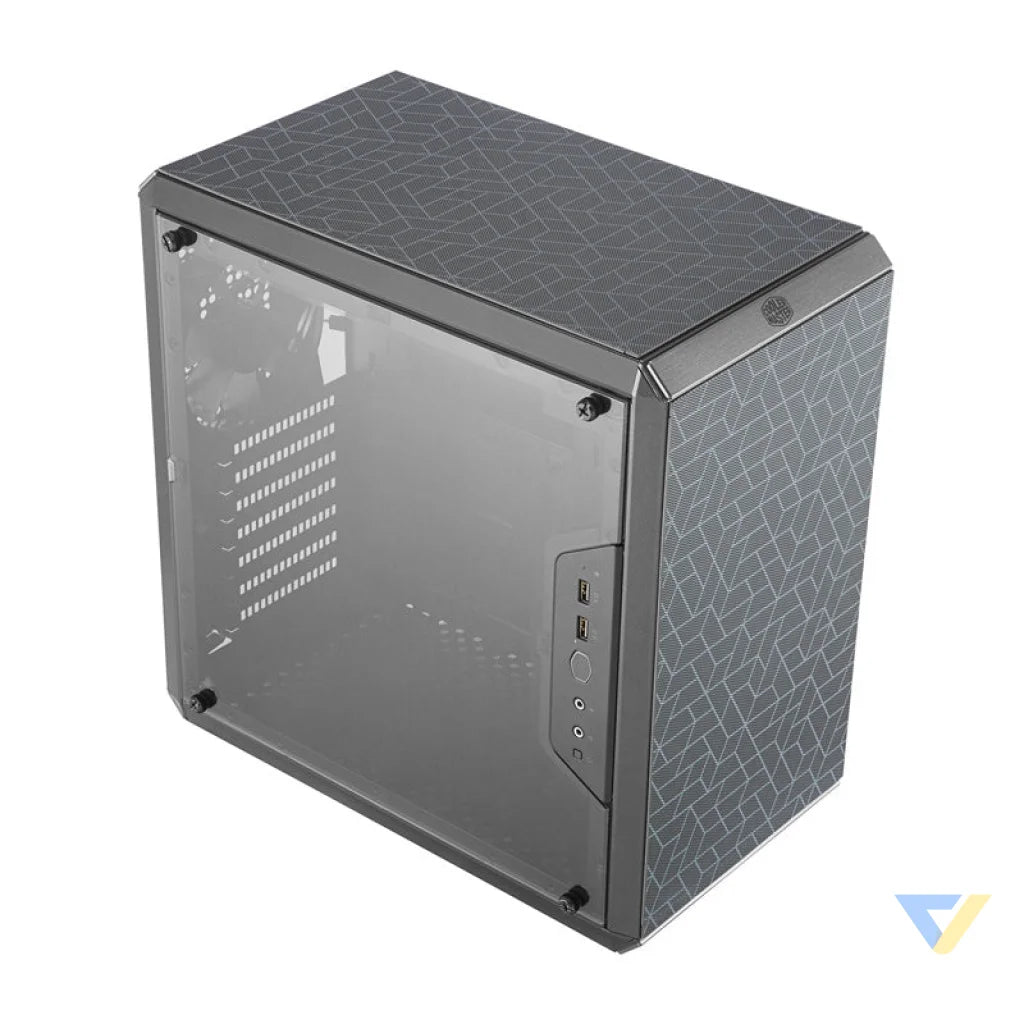

Cooler Master MasterBox Q500L computer case (black)

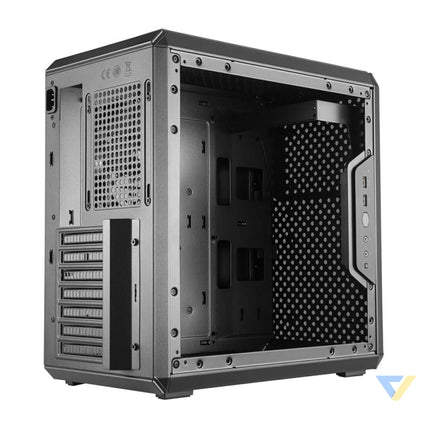

Cooler Master MasterBox Q500L is a compact computer case designed for ATX, Micro ATX and Mini ITX format motherboards. It supports standard ATX power supplies, which are mounted vertically on the front of the case. Inside there is room for seven expansion slots, up to two 3.5" or 2.5" drives, and one 2.5" SSD. The case supports CPU cooling up to 160 mm in height and graphics cards up to 360 mm in length. The I/O panel includes two USB 3.0 ports and 3.5mm jack audio connectors.
Refined design

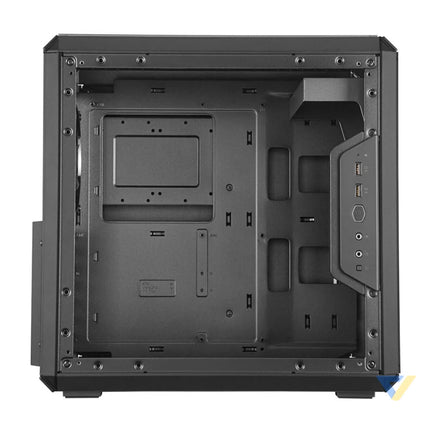

In this design, the power supply has been placed at the front of the case, saving space inside. What's more, a special mounting bracket allows it to be moved depending on the motherboard used - this is especially useful when installing mini ITX boards. Such a solution also improves airflow and facilitates interior arrangement.
Thoughtful solutions

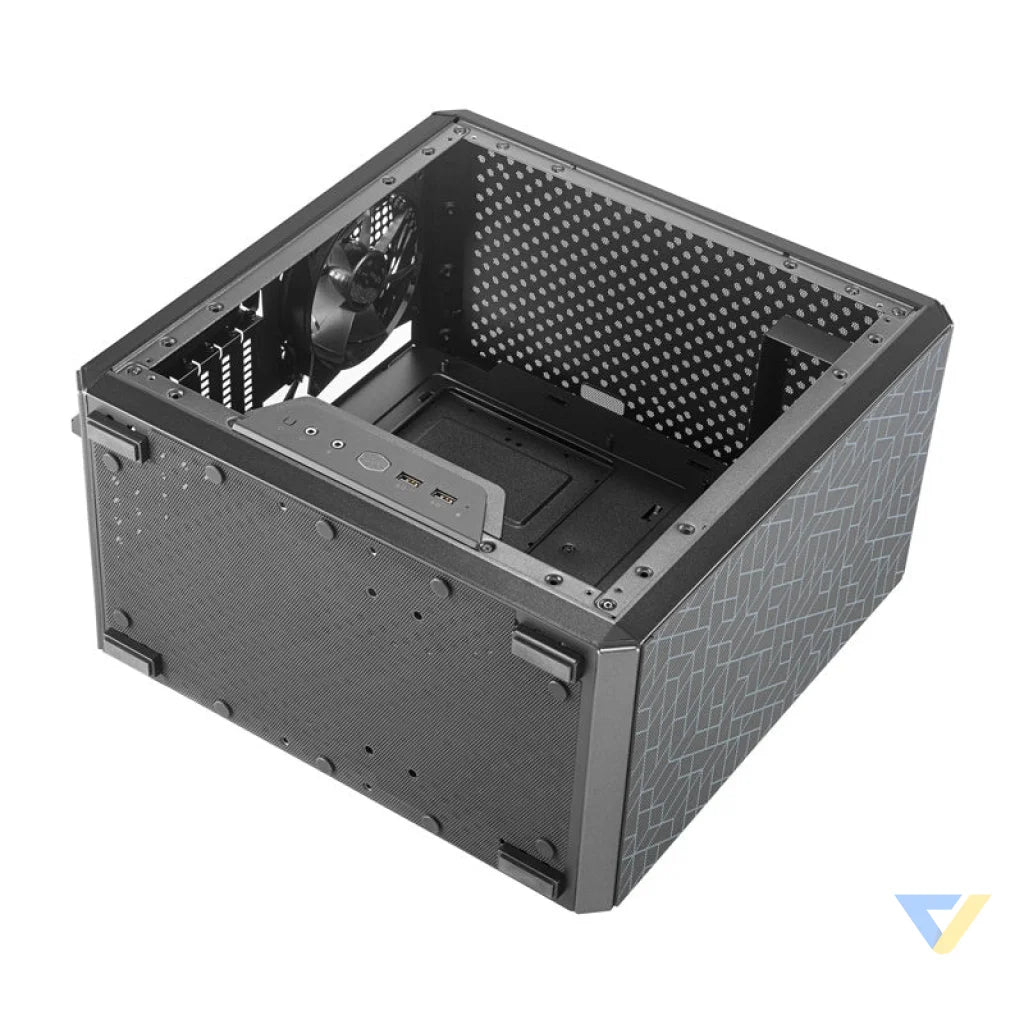

The I/O panel can be mounted in six different locations - on the side or front of the case - which significantly improves the ergonomics and the fit of the case to a specific configuration. What's more, the MasterBox Q500L can be positioned in both portrait and landscape orientations. Rubberized screws, which also act as feet, make it easier to stabilize the case in the chosen position. Such flexibility gives you more freedom to fit the computer into your work or home space.
Good ventilation thanks to perforated panels

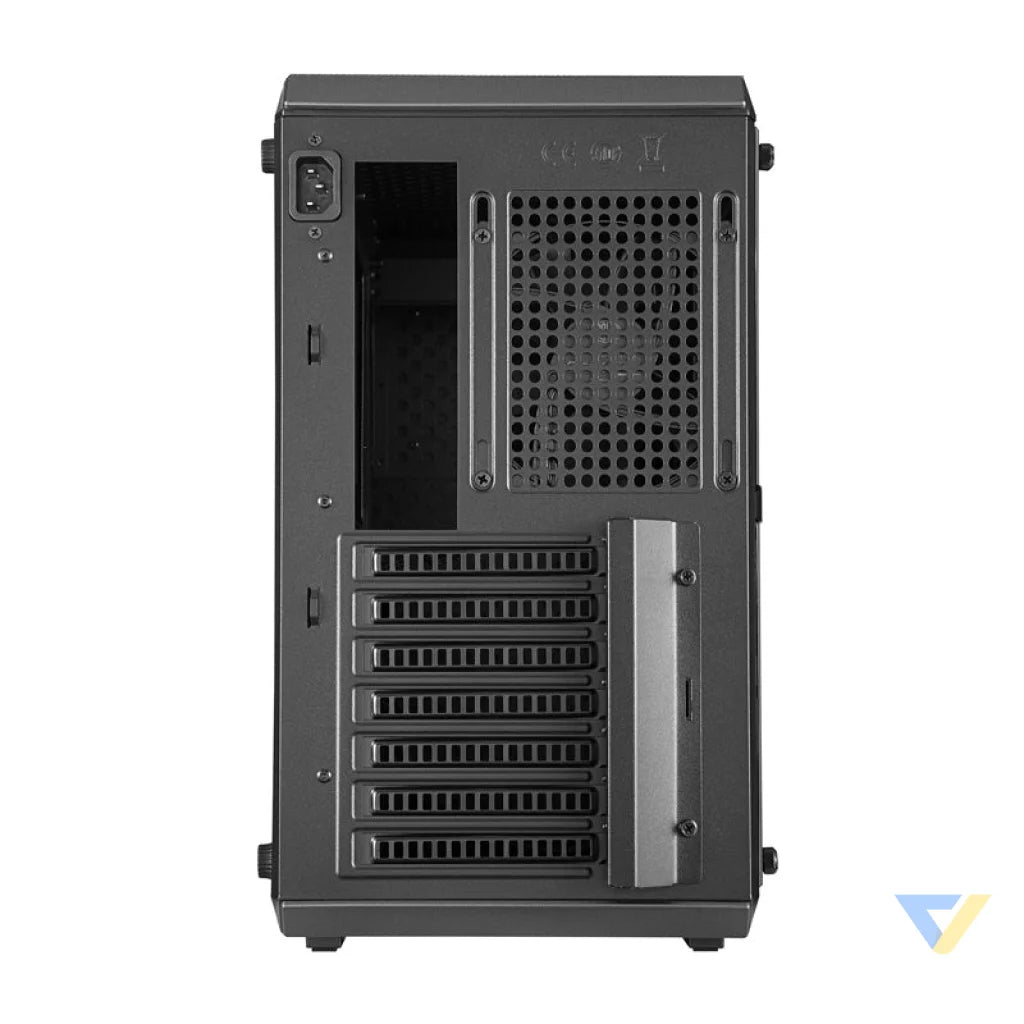

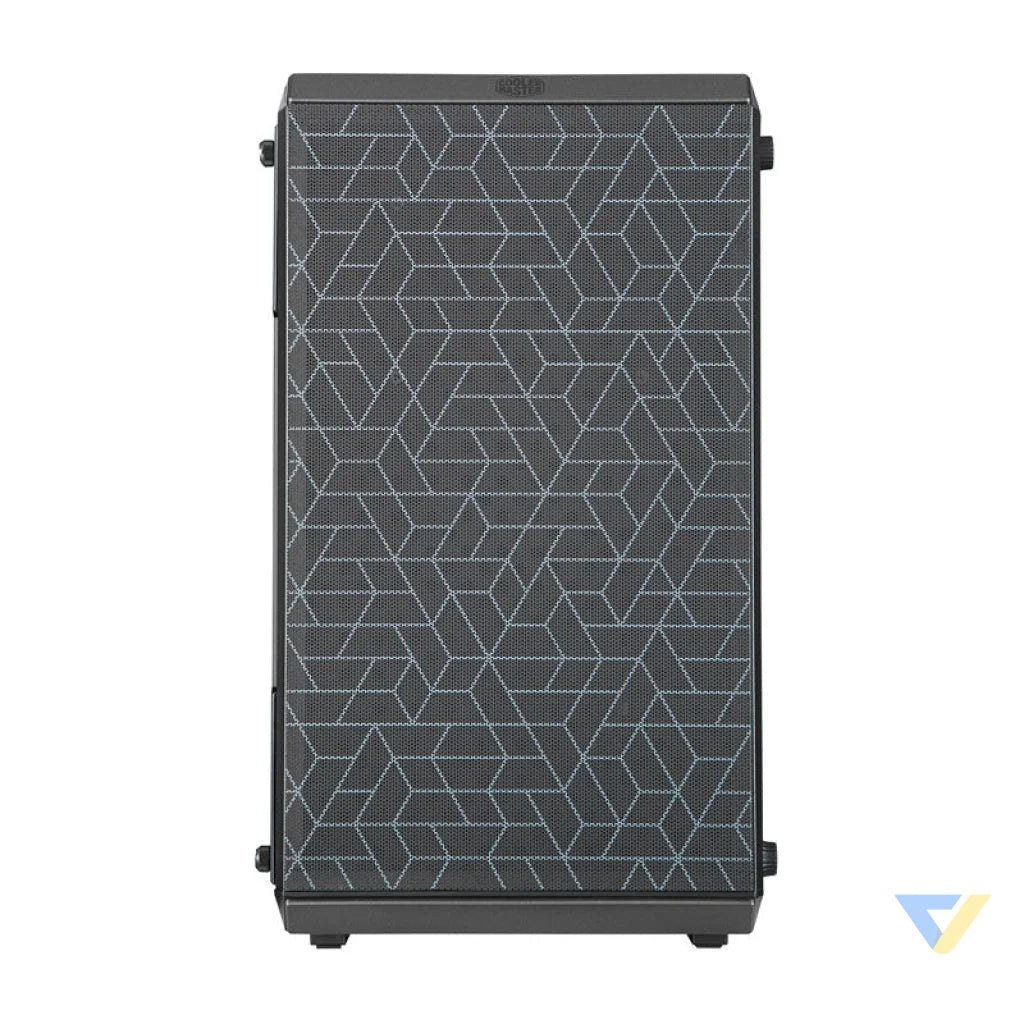

The top, bottom, front and back of the case are perforated for better airflow. This ensures that components remain adequately cooled, regardless of the fan configuration used. One pre-installed 120mm fan is included at the rear of the case.
Easy cleaning
The magnetic dust filters on the top and bottom of the case can be easily removed and cleaned. This is a practical convenience that allows you to keep your computer clean without much effort.
Room for order - cable management system
Behind the motherboard, 27-30 mm of space is provided for cable routing. This makes the interior of the case easy to organize, which not only improves aesthetics, but also facilitates airflow.
| Manufacturer |
Master Cooler |
| Model |
MasterBox Q500L |
| Product code |
MCB-Q500L-KANN-S00 |
| Color |
black |
| Material |
Steel, plastic |
| Side panel |
Acrylic |
| Height |
386 mm |
| Depth |
381 mm |
| Width |
230 mm |
| Motherboard standard |
Mini ITX, Micro ATX, ATX |
| Expansion card slots |
7 |
| Internal drive slots |
3.5" / 2.5": 2 (each bay supports 1 HDD or 2 SSDs) |
| Connectors |
x2 USB 3.0; x1 audio jack 3.5 mm; x1 microphone jack 3.5 mm output |
| Number of installed fans |
Rear: 1 × 120 mm |
| Fan mounting options |
Top: x2 120 / 140 mm; Rear: x1 120 mm; Bottom: x1 120 mm. |
| Water cooling mounting options |
Rear: 120 mm; Top: 120 / 240 mm (maximum height of motherboard components: 35 mm) |
| Maximum height of CPU cooler |
160 mm |
| Maximum PSU length |
180 mm |
| Maximum length of graphics card |
360 mm (270 mm with PSU longer than 160 mm) |
| Cable routing |
27-30 mm behind the motherboard |
| Anticorrosion filters |
On the bottom of the case |
| Power supply |
Mounted on the front, vertically |
| Weight |
3.83 kg |
