Description

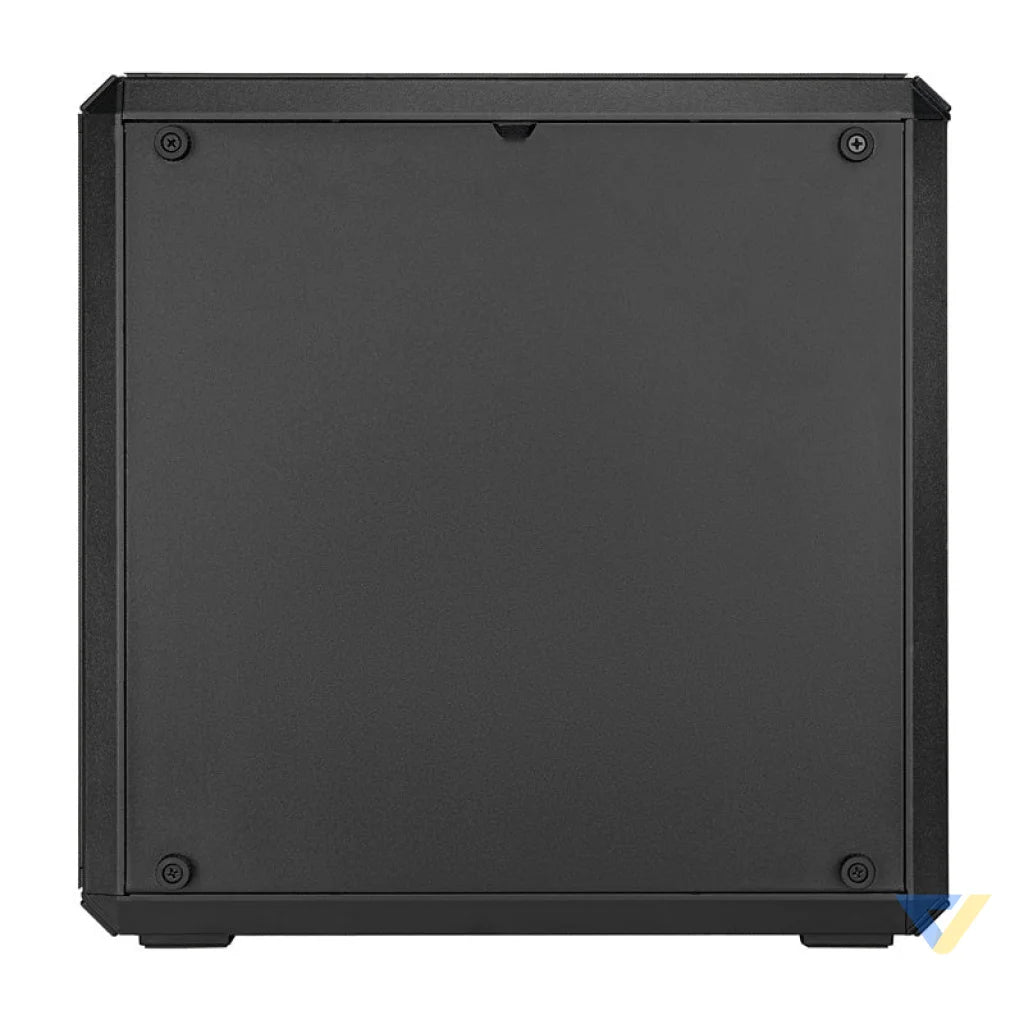

Cooler Master MasterBox Q300L computer case (black)
The MasterBox Q300L V2 will let you build a PC for everyday tasks. It supports micro-ATX and mini-ITX motherboards and allows you to mount a standard ATX power supply. It allows installation of water cooling and up to 6 120mm fans. In addition, it offers space for 1 HDD and up to 2 SSDs, and with the available ports you will connect additional devices.
Connectors on the top panel

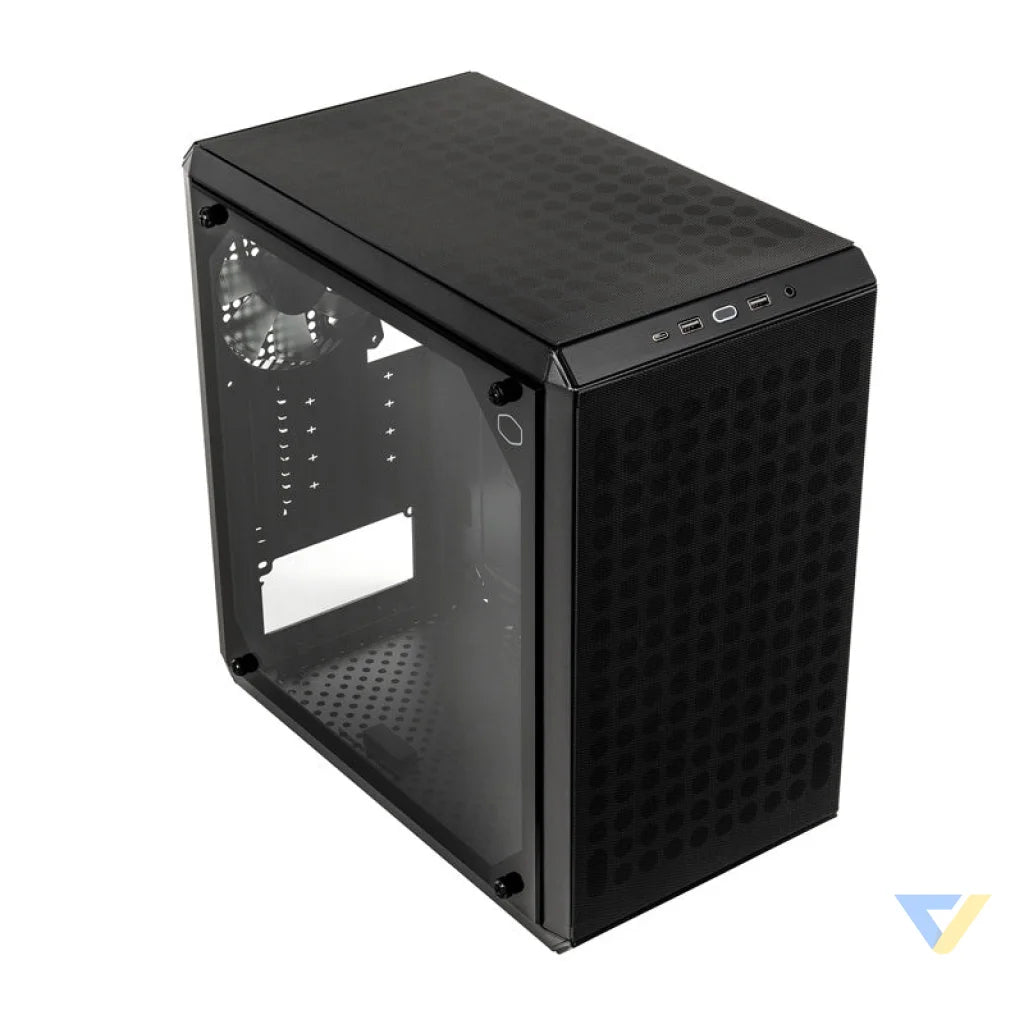

The case is equipped with several ports that will allow you to connect other devices. On the top panel there are 2 USB 3.2 Type A inputs and one USB 3.2 Gen 2x2 Type C. The latter allows data transfer - up to 20 Gbps.
Easy cable management

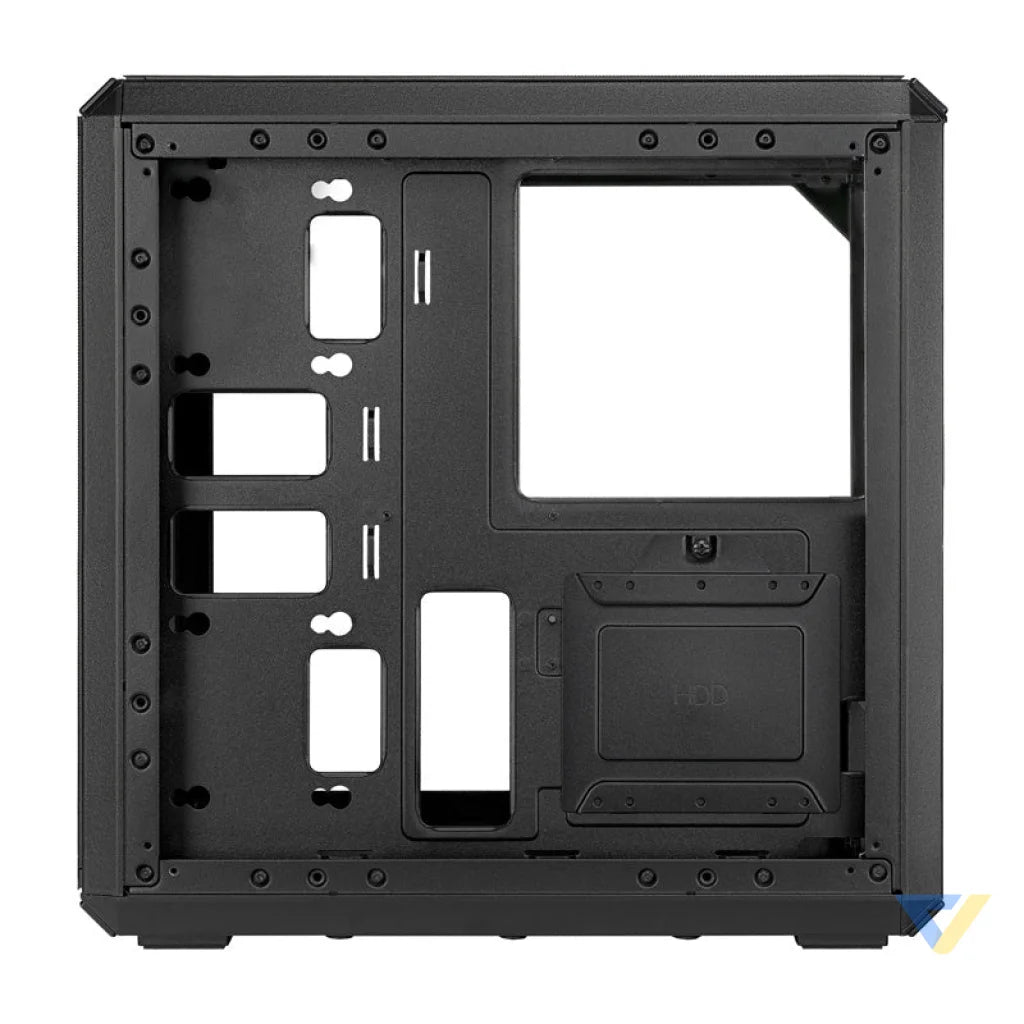

There is 28 mm of free space behind the motherboard. That's enough to conveniently route all the cables and keep things tidy inside the case. As a result, the computer looks better and has better airflow.
Effective cooling

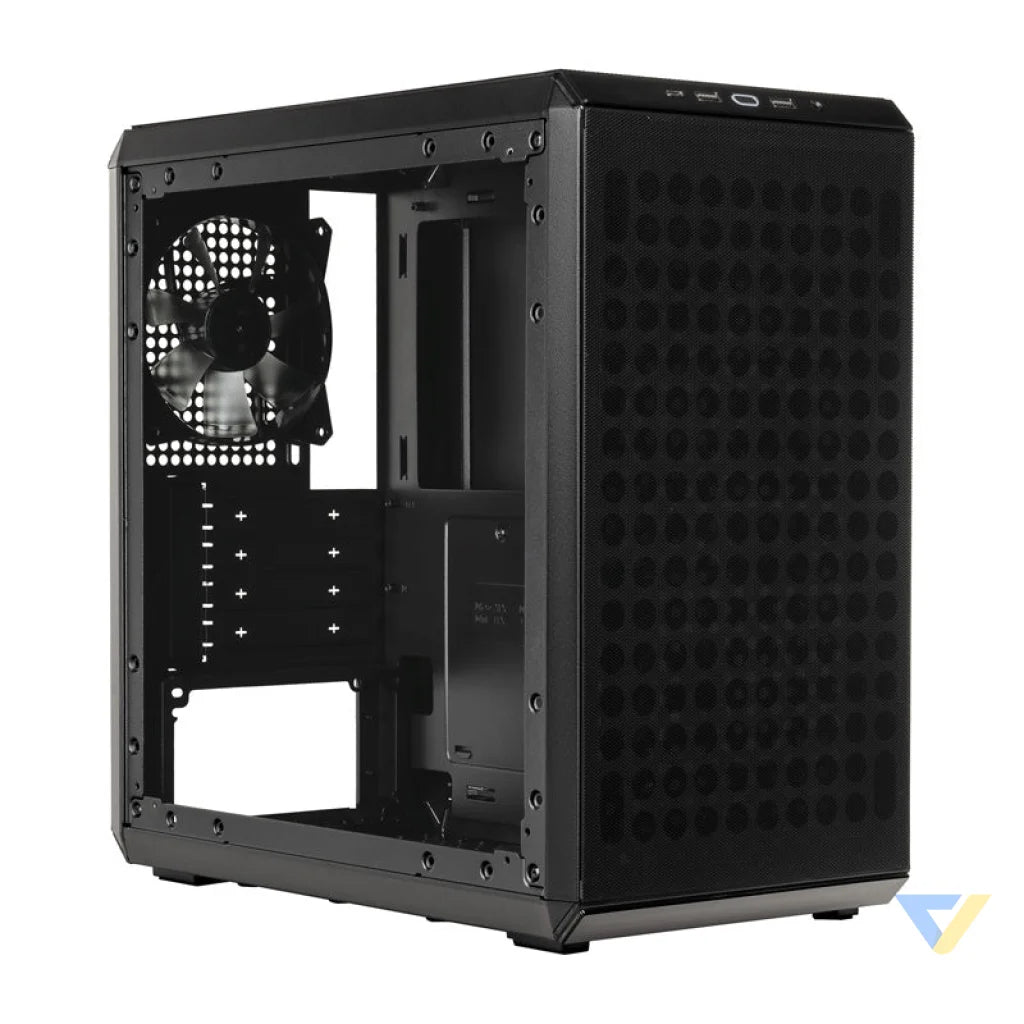

The case can accommodate up to six fans: two at the front, two at the top, one at the back and one at the bottom. It is also possible to install a water cooler of up to 240 mm. Perforated panels on the front, top and bottom allow air to flow freely.
Glass side panel and easy cleaning

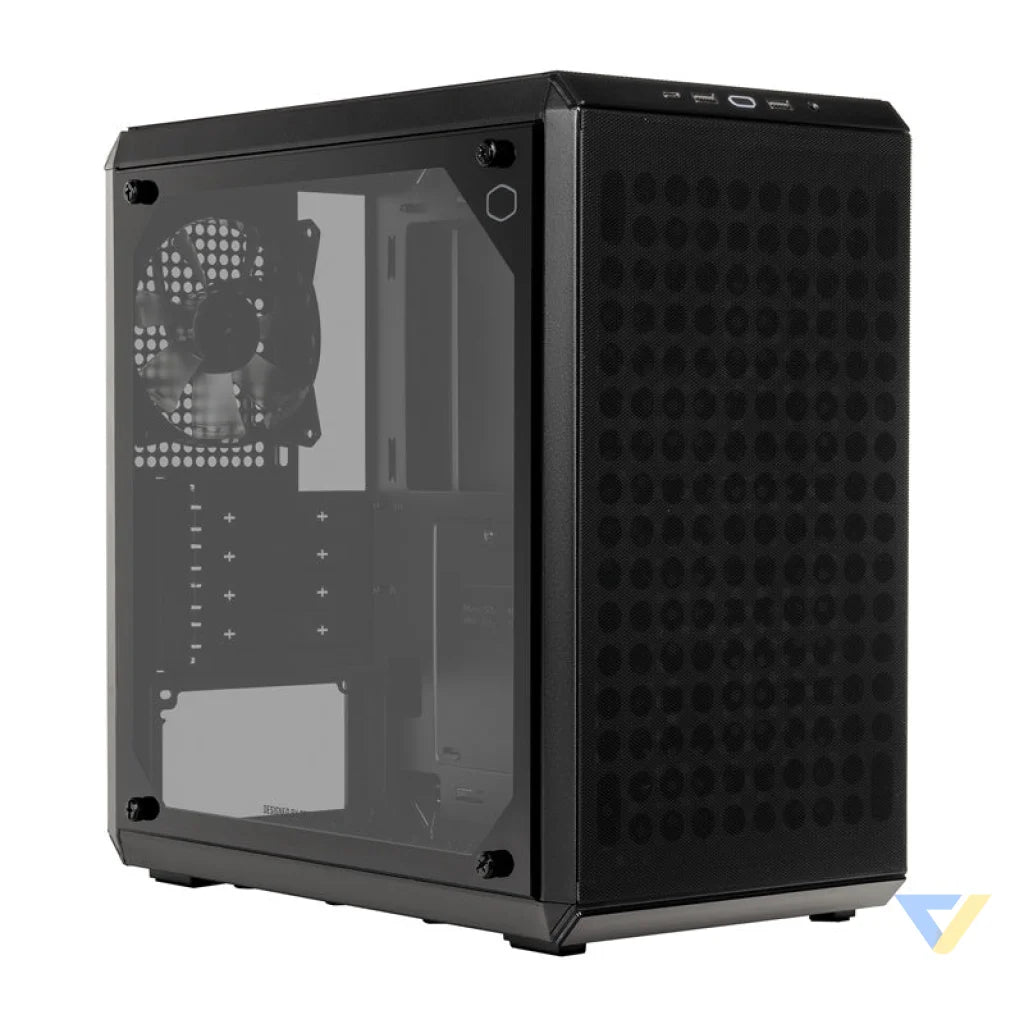

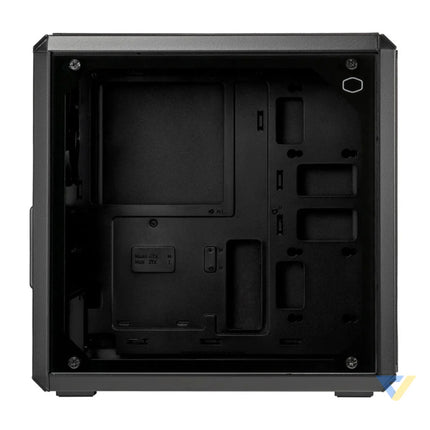

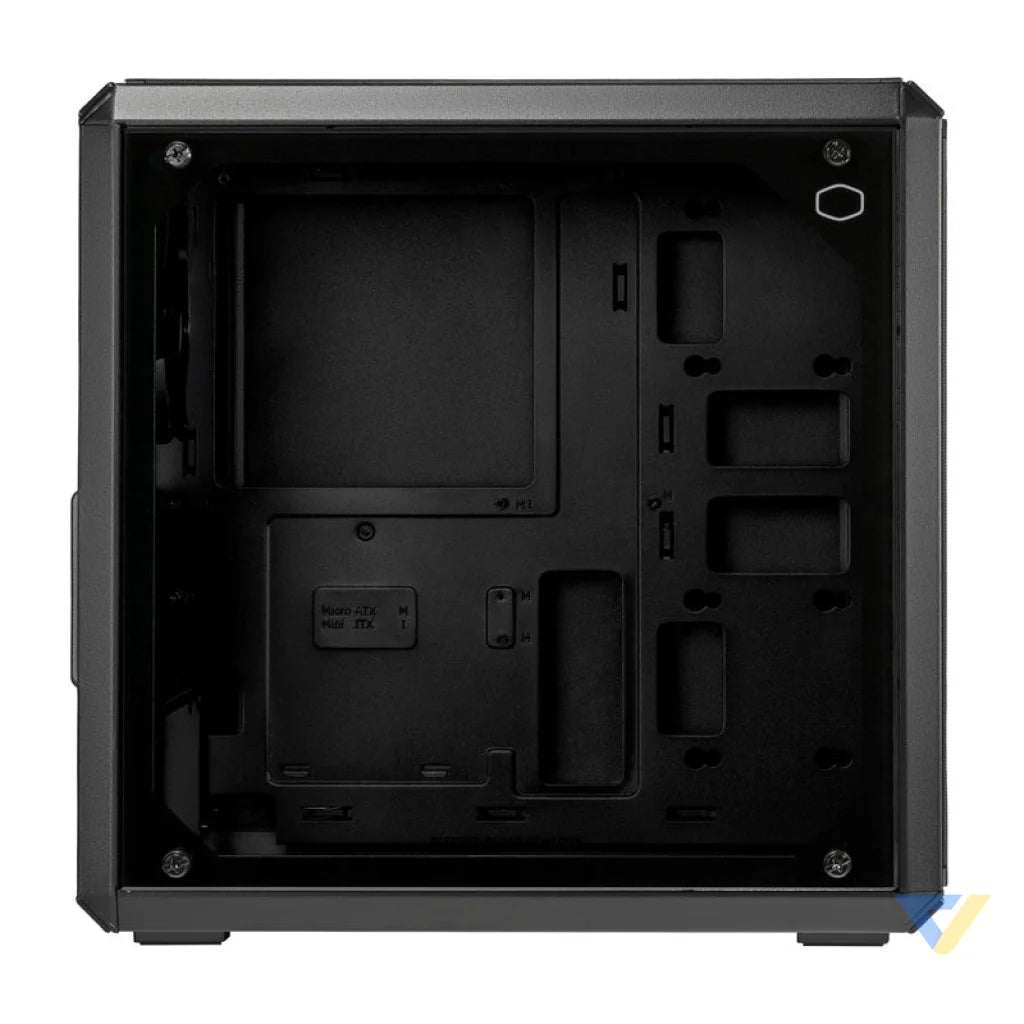

The side panel is made of 4 mm thick tempered glass, through which the components inside can be seen. The panel is mounted with screws that can be easily removed. The case also has an easily removable dust filter.
| Manufacturer |
Cooler Master |
| Model |
MasterBox Q300L |
| Color |
black |
| Material |
steel, plastic |
| Side panel |
tempered glass, 4 mm |
| Height |
383 mm |
| Depth |
387 mm |
| Width |
230 mm |
| Volume |
29 l |
| Motherboard standard |
Micro ATX/Mini-ATX |
| Slots for expansion cards |
4 |
| Internal drive bays |
3.5" HDD x1 / 2.5" SSD x2 |
| Connectors |
x2 USB-A 3.2 Gen 1; x1 USB-C 3.2 Gen 2; x1 3.5mm audio |
| Type of fans installed |
x1 120 mm |
| Fan mounting options |
Top: x2 120 mm; Front: x2 120 mm / x2 140 mm; Rear: x1 120 mm; Bottom: x1 120 mm |
| Water cooling mounting options |
front: 120/240 mm; rear: 120 mm |
| Max. height of CPU cooler |
159 mm |
| Power supply standard |
ATX, bottom, 160 mm |
| Max. length of graphics card |
360 mm |
| Cable routing |
28 mm behind the motherboard |
| Anticorrosion filter |
front, top, bottom |
