Description

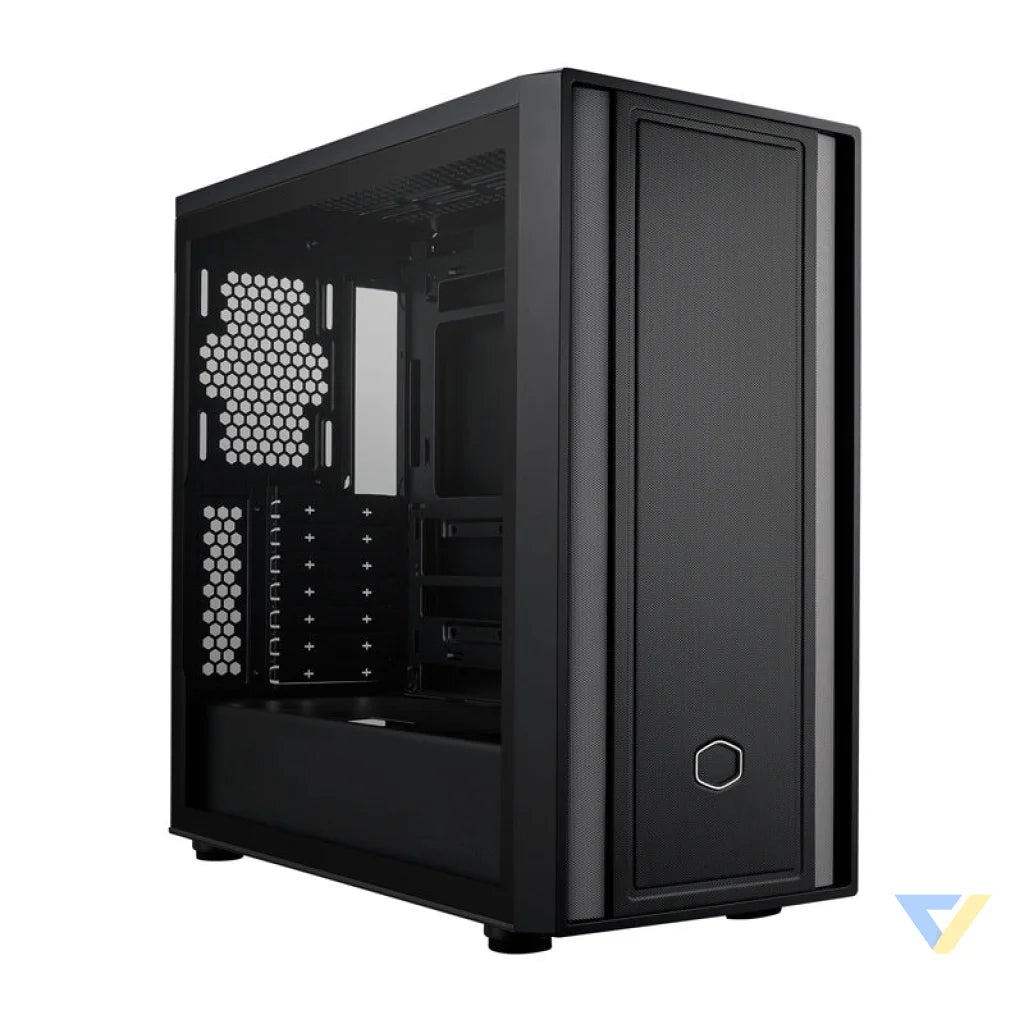

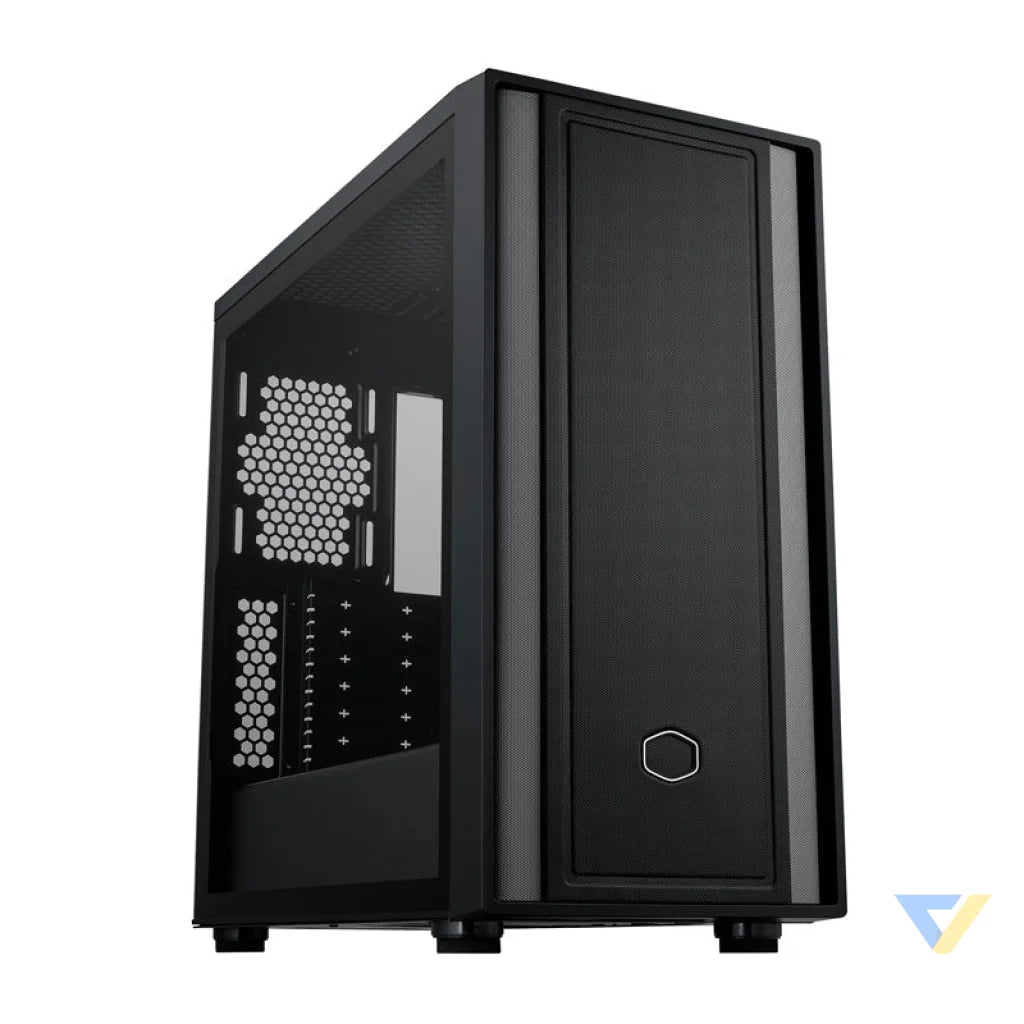

Cooler Master MasterBox 600 Lite computer case (black)
The MasterBox 600 Lite will let you build your computer the way you want. It is designed to make full use of the internal space. It allows you to mount up to 7 120 mm fans, which translates into efficient cooling. It supports a variety of motherboard standards, including ITX/Micro ATX/ATX/E-ATX, and allows you to install up to 6 SSDs and other components to create a customized configuration.
More space with support for back-connect boards
The case has been designed to accommodate back-connect motherboards, which means that most cables are routed through the back instead of the front. This keeps the interior of the case tidy and has a cleaner look. There is an additional 33-35 mm of space behind the motherboard, which significantly simplifies cable management and improves airflow.
Efficient cooling
The MasterBox 600 Lite gives you full freedom when it comes to cooling. As many as 7 120 mm fans can be installed inside - 3 at the front, 3 at the top and 1 at the back. In addition, the case supports water cooling - up to 420 mm in the front and up to 360 mm on the top (limited to 457 × 140 × 27 mm). So you can enjoy smooth and reliable computer operation.

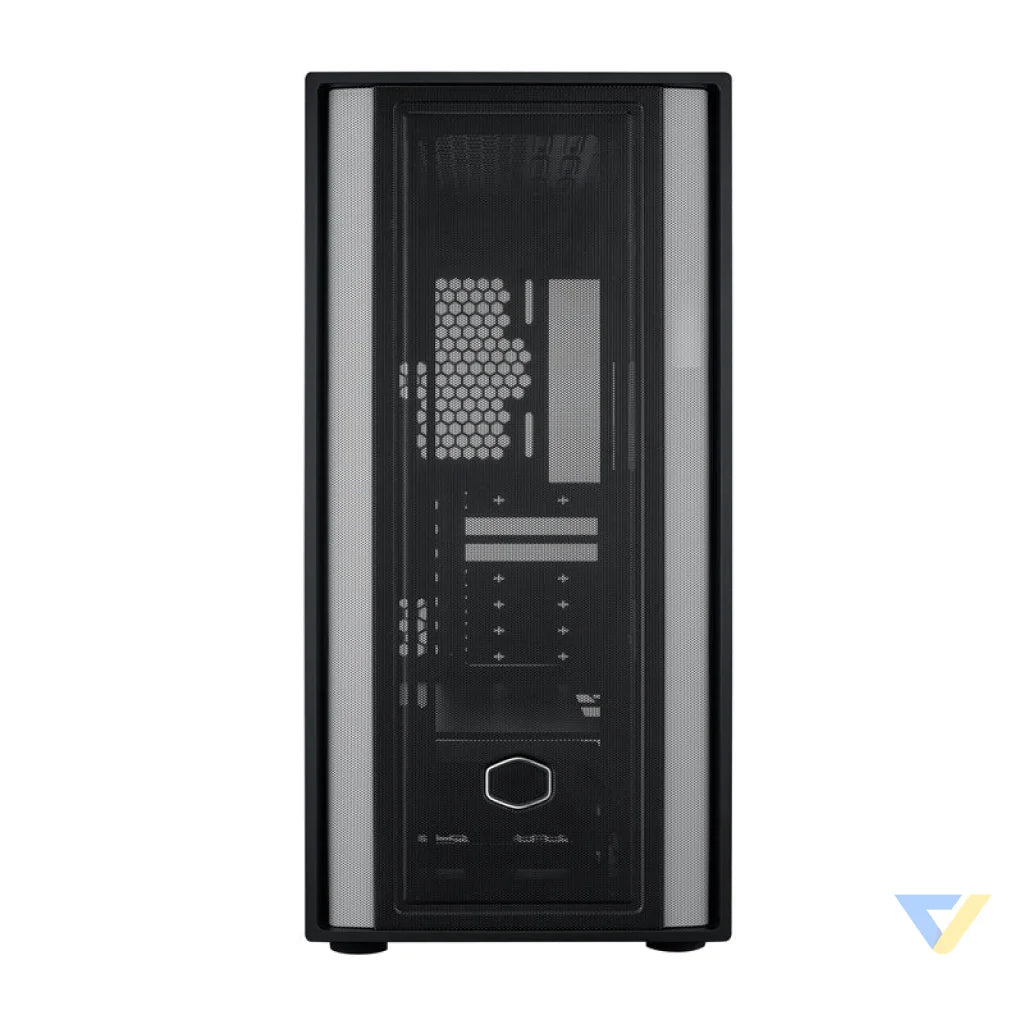

FineMesh front panel
The front of the case features a FineMesh dense mesh panel that maximizes airflow without sacrificing dust protection. This type of design allows for efficient cooling of components, especially when the case is operating under a heavy load - such as when gaming.

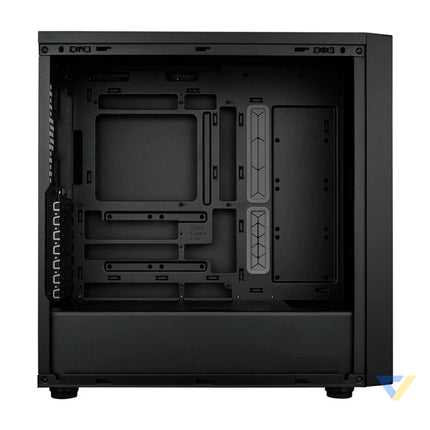

Thoughtfully designed interior with the possibility of modification
Inside there are two slots for 3.5" (HDD) drives and two for 2.5" (SSD) drives, expandable up to a maximum of 6 SSDs. What's more, the HDD enclosure is completely removable, giving better access during installation or freeing up space for longer components, such as coolers or a power supply.

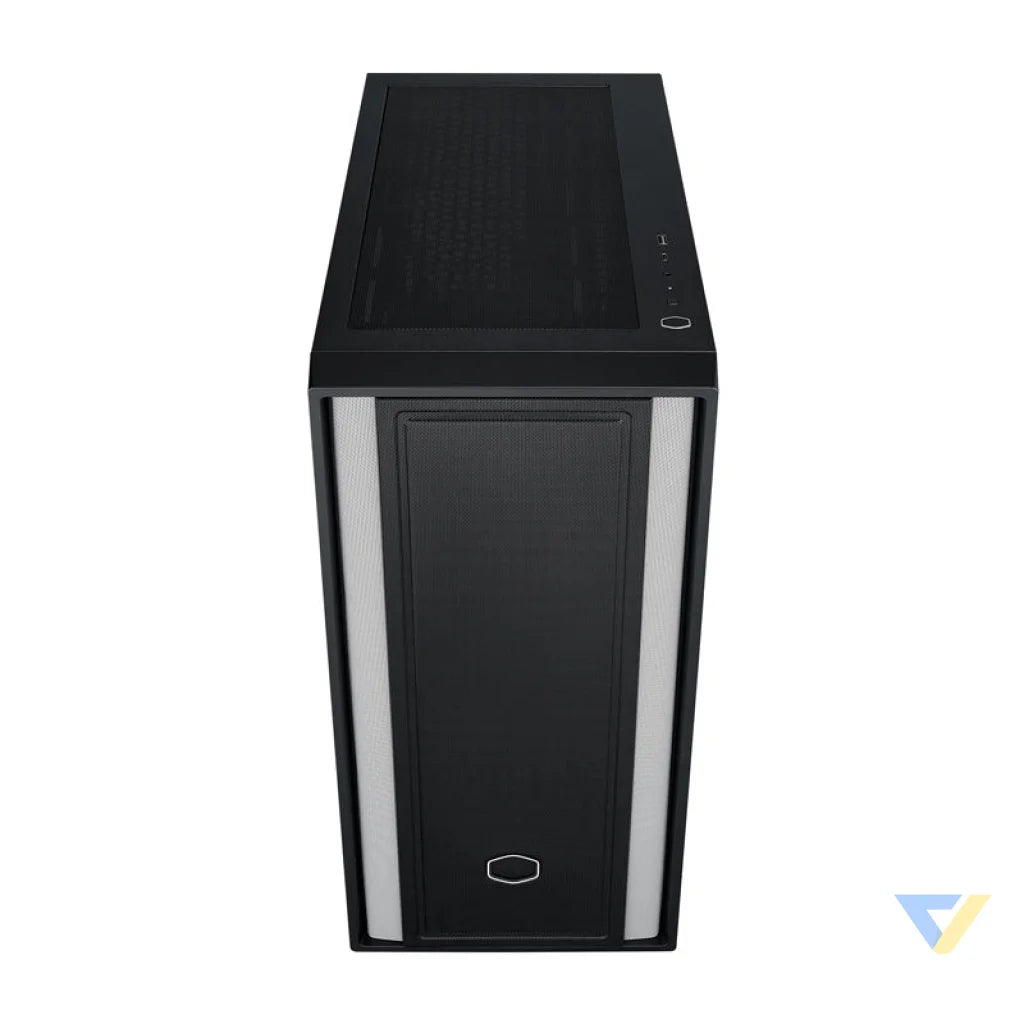

Additional amenities
On the top panel are two USB 3.2 Gen1 ports - one type A and one type C, as well as an audio combo connector (3.5mm jack), which combines microphone input and headphone output. The case also features dust filters on the top and bottom, which protects the interior from dirt and reduces the need for frequent cleaning.
| Manufacturer |
Cooler Master |
| Model |
MasterBox 600 Lite |
| Color |
black |
| Material |
steel, plastic |
| Side panel |
tempered glass |
| Height |
481 mm |
| Depth |
474 mm |
| Width |
230 mm |
| Volume |
49,73 l |
| Motherboard standard |
ITX/Micro ATX/ATX/E-ATX (up to 30.5 x 27.7 cm) |
| Expansion card slots |
7 |
| Internal drive bays |
3.5" HDD x2 / 2.5" SSD x2 (max. 6) |
| Connectors |
x1 USB-A 3.2 Gen 1; x1 USB-C 3.2 Gen 1; x1 3.5mm audio |
| Type of fans installed |
no fans installed |
| Fan mounting options |
front: x3 120 mm / x3 140 mm; top: x3 120 mm / x2 140 mm; rear: x1 120 mm |
| Water cooling mounting options |
front: 120/140/240/280/360/420 mm (max. 457 x 140 x 27 mm); top: 120/140/240/280/360 mm; rear: 120 mm |
| Max. height of CPU cooler |
170 mm |
| Power supply standard |
ATX, 170 with HDD enclosure/210 mm without HDD enclosure |
| Max. length of graphics card |
360 mm (with front heatsink installed) / 410 mm (without front heatsink installed) |
| Cable routing |
33-35 mm |
| Anticorrosion filter |
top and bottom |
