Description

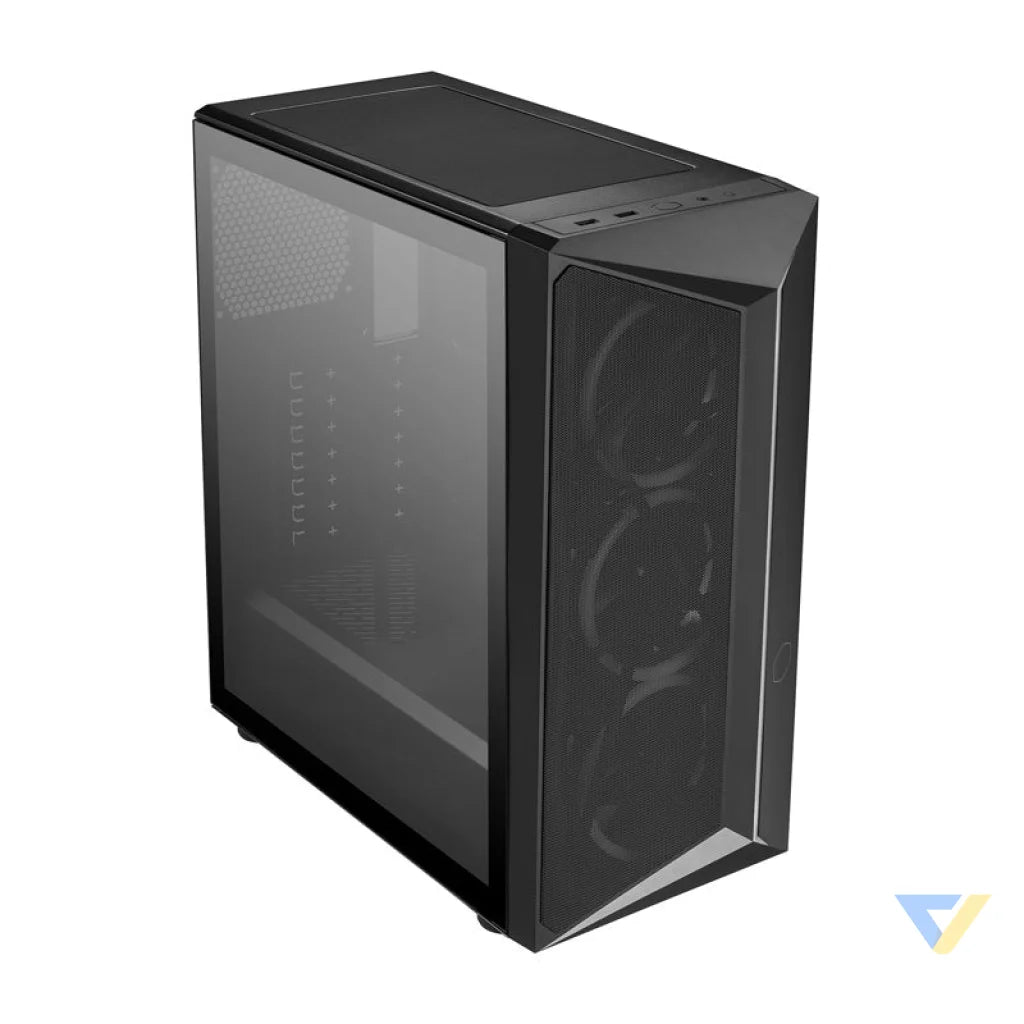

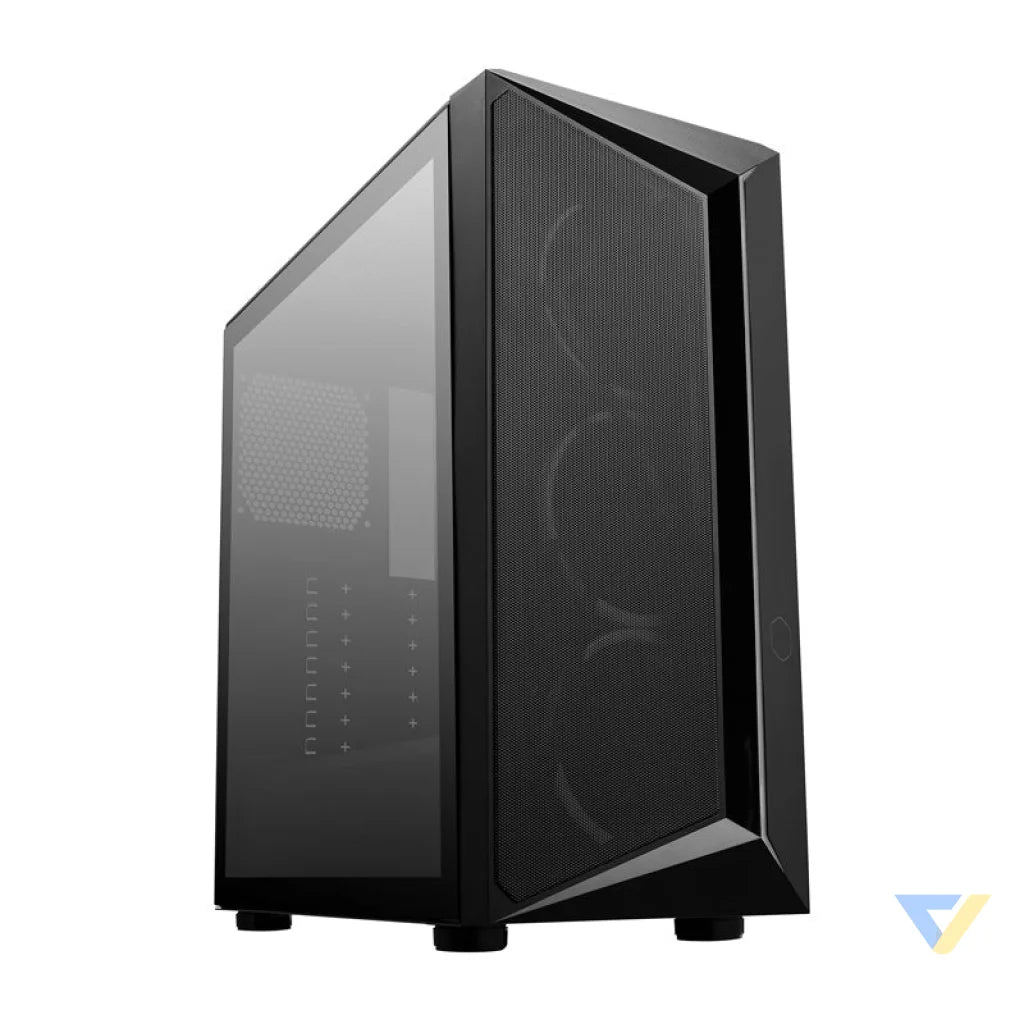

Cooler Master CMP510 ARGB computer case (black)
The CMP 510 supports motherboards in ATX, Micro-ATX and Mini-ITX formats. It provides compatibility with graphics cards up to 350 mm in length and CPU cooling up to 161 mm in height. The case features a tempered glass side panel and an ARGB illuminated strip on the front, enhancing its gaming look.
Cooling that keeps up with your components

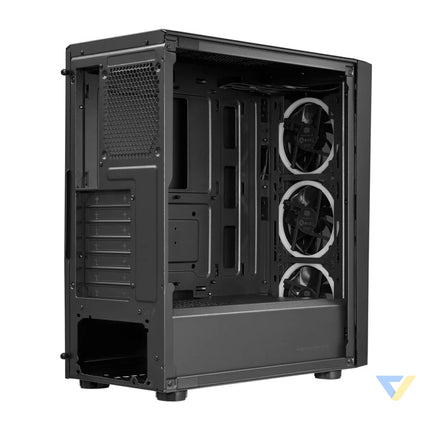

The CMP 510 allows the installation of up to six fans: three at the front, two at the top and one at the rear. It already comes with three factory 120mm fans with ARGB illumination mounted on the front. The case also supports water cooling - a 280 mm heatsink can be mounted on the front, up to 240 mm on the top, and 120 mm at the rear.
Optimal airflow

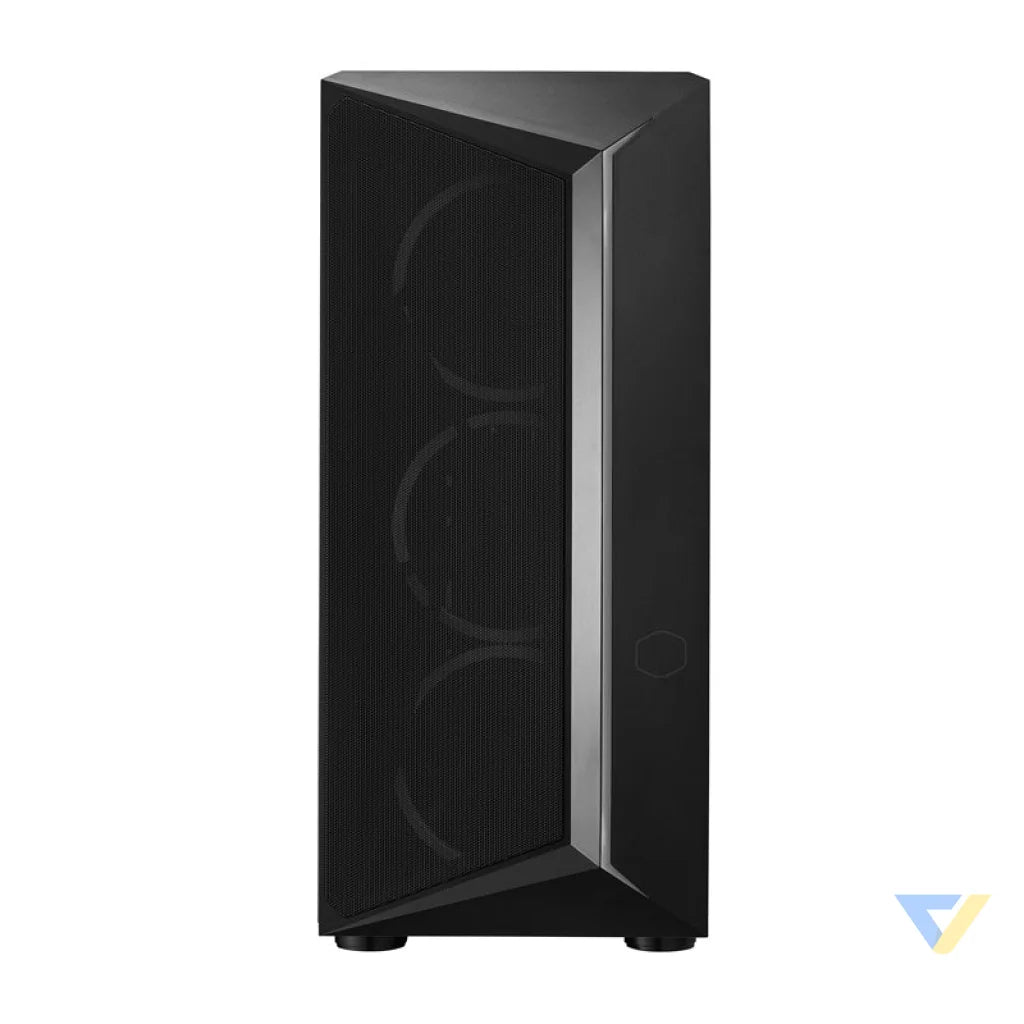

The front panel is made of metal mesh, which maximizes air intake into the case. The dust filters used on the top and bottom of the case protect the interior from dust without blocking airflow. This is especially important for computers that run for many hours a day - whether gaming or working under heavy load.
Design with character - ARGB and tempered glass

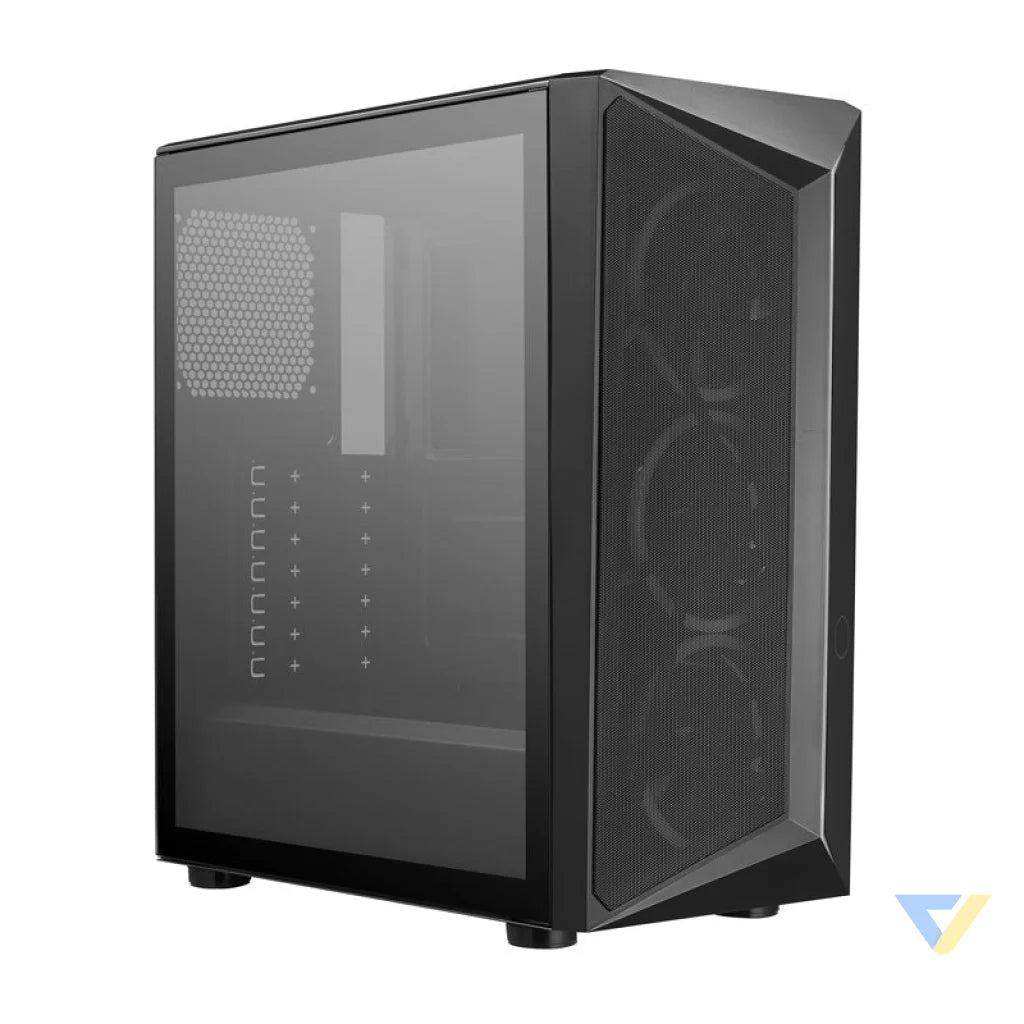

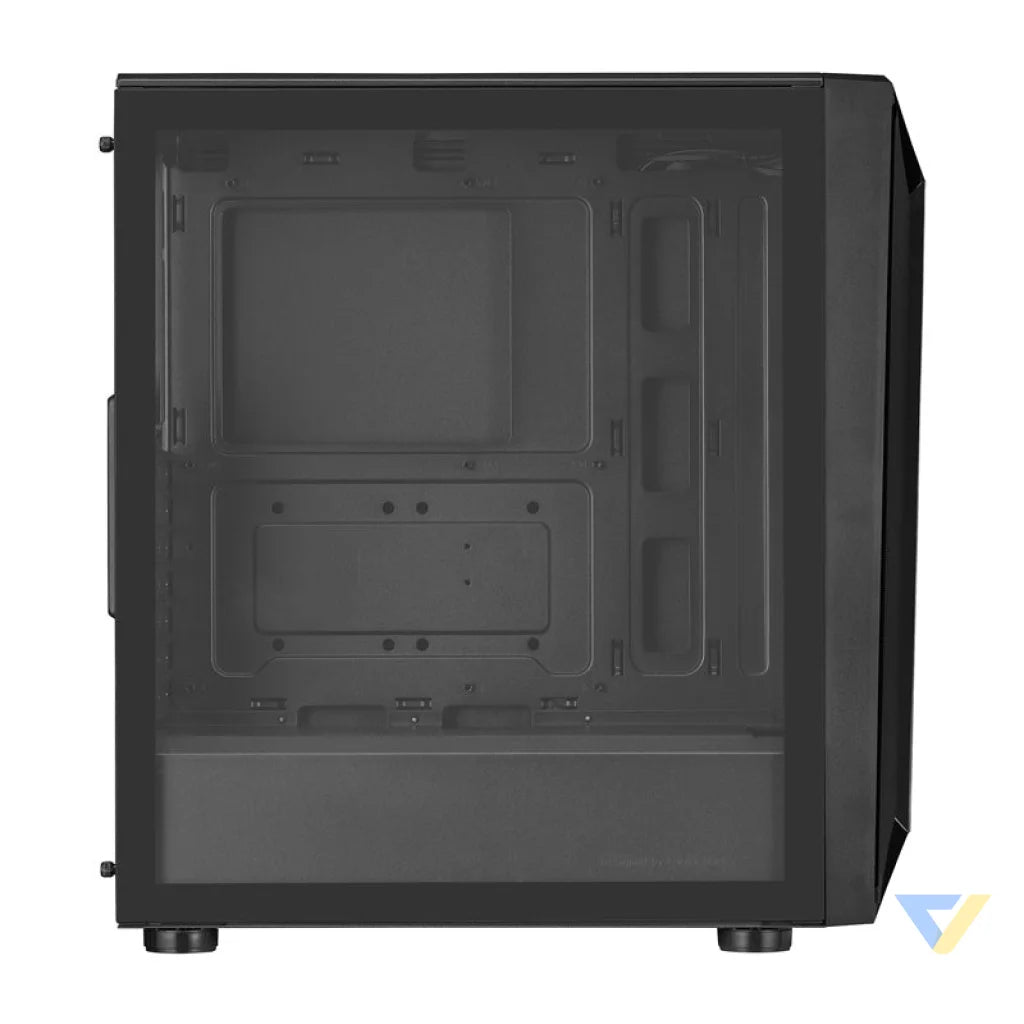

The front of the case features an integrated ARGB light bar, which gives the case a stylish look and can be synchronized with other ARGB components in the system. A side panel made of 4-millimeter tempered glass allows the computer's interior to be exposed, which looks especially good when combined with backlit fans, motherboard or RAM. The panel is mounted using screws with handles, which makes it easy to access the inside without additional tools.
Ample space and cable order

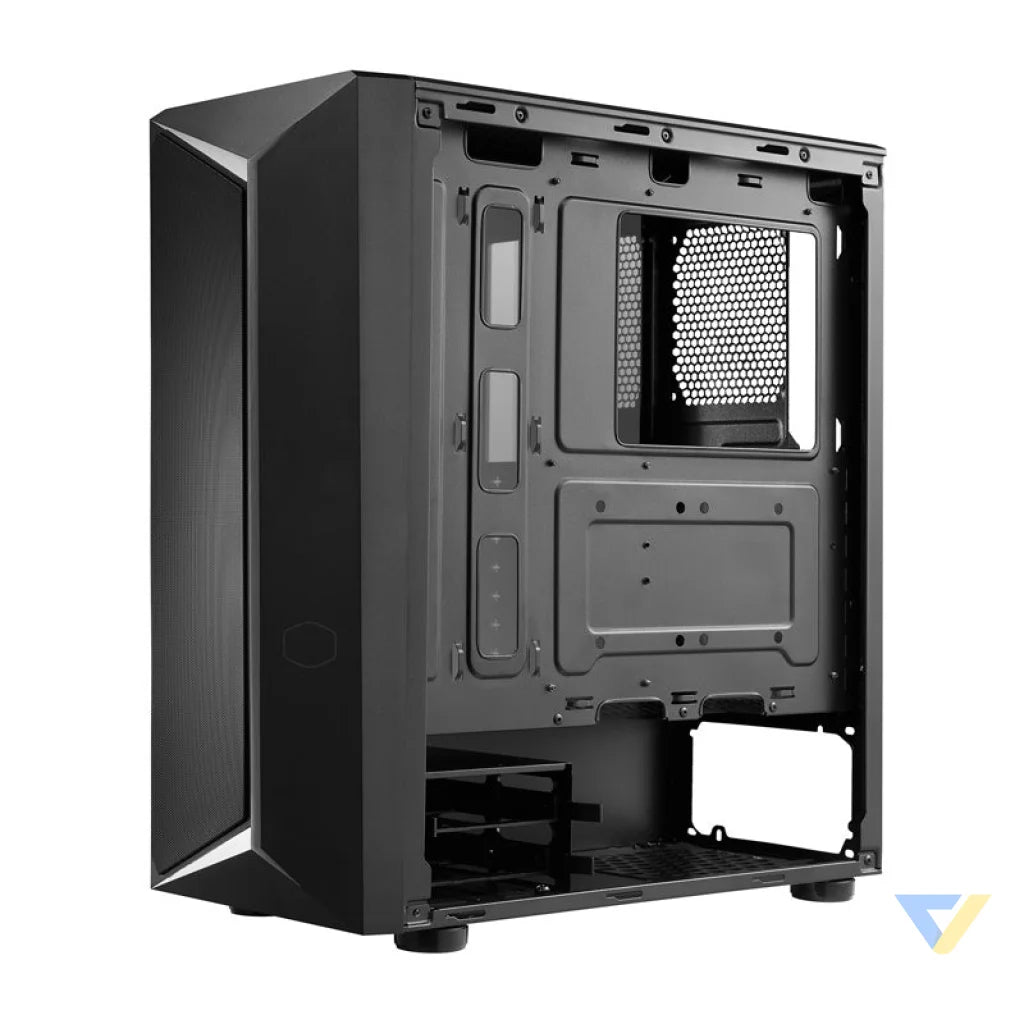

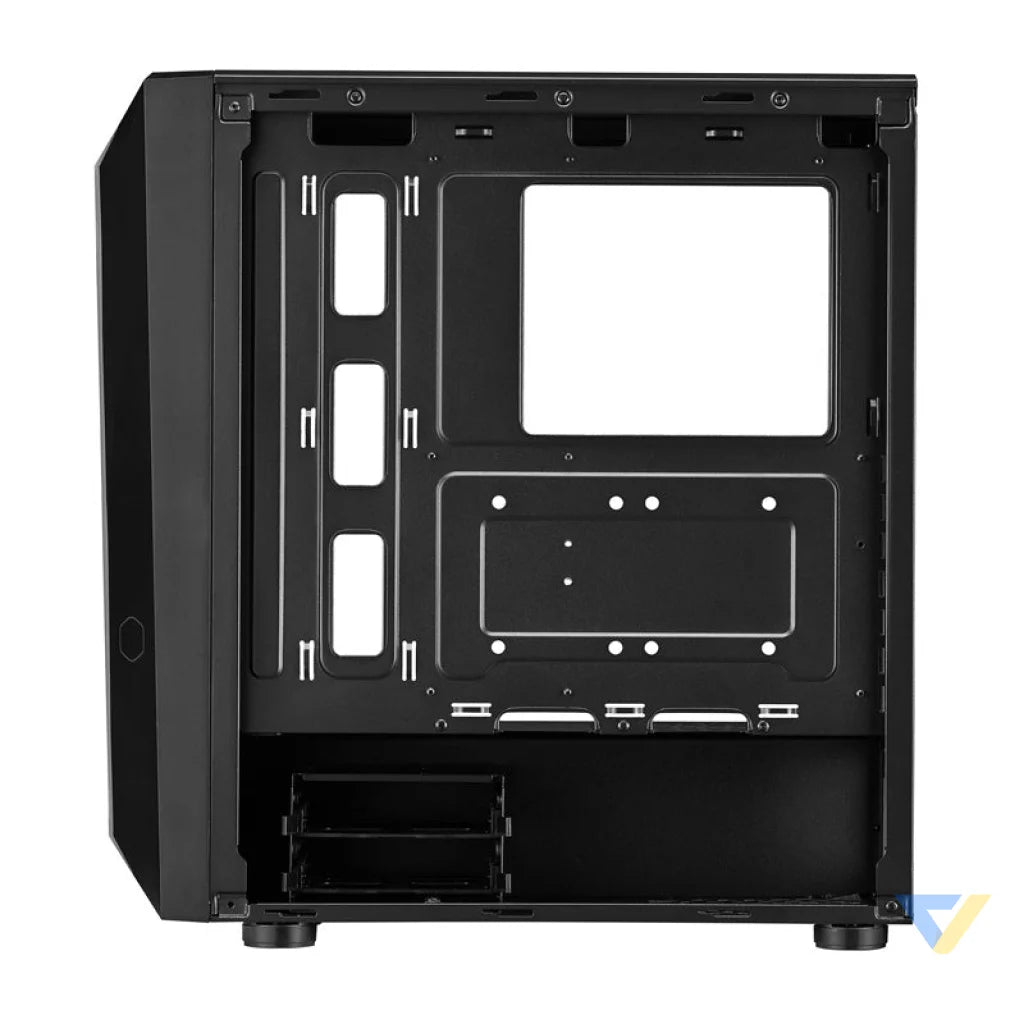

The CMP 510 will easily accommodate graphics cards up to 350 mm in length, CPU cooling up to 161 mm and a standard ATX power supply up to 160 mm in length. The case has two bays for 2.5"/3.5" drives and two additional bays for 2.5" SSDs, allowing for flexible storage management. The rear of the motherboard tray has 18.5 mm of space for cable routing - enough to organize cables.
| Manufacturer |
Cooler Master |
| Model |
CMP 510 |
| Product code |
CP510-KGNN-S00 |
| Color |
black |
| Material |
steel, plastic |
| Side panel |
tempered glass |
| Height |
463 mm |
| Depth |
445 mm |
| Width |
204 mm |
| Capacity |
39,85 l |
| Motherboard standard |
Mini-ITX, Micro-ATX, ATX |
| Expansion card slots |

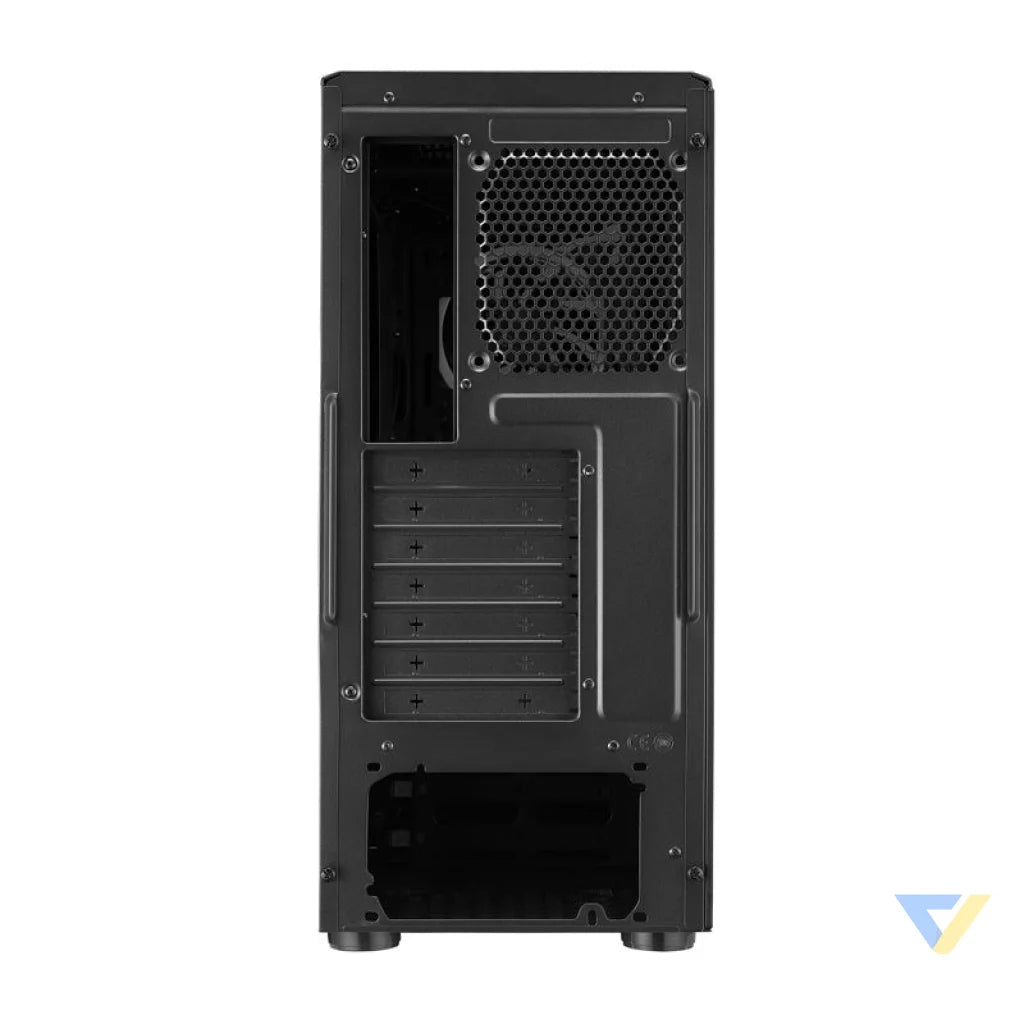

7 |
| Internal drive bays |
2.5" / 3.5" HDD x2; 2.5" SSD x2 |
| Connectors |

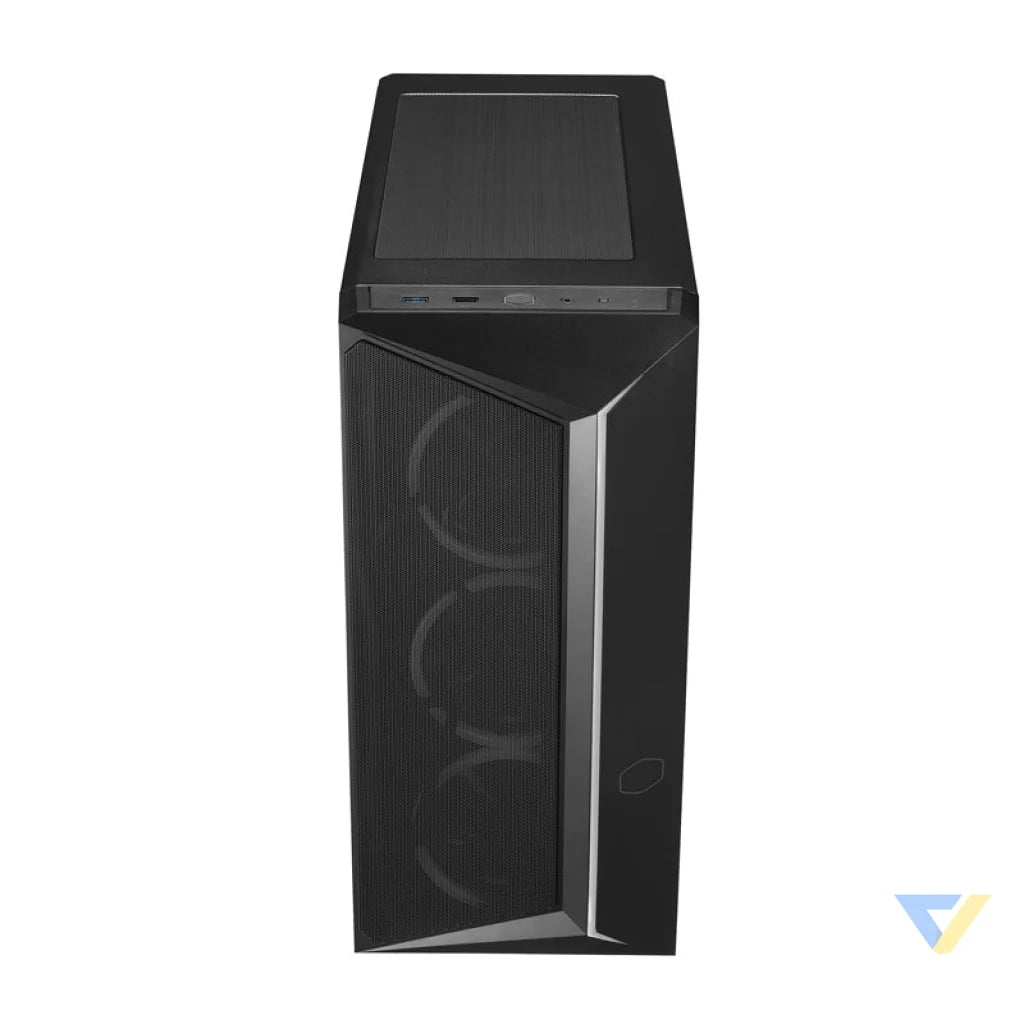

USB: 2 × USB 3.2 Gen 1 Type-A; Audio: 1 × 3.5mm combo jack (headphones + microphone) |
| ARGB controller |
None (ARGB controlled from motherboard or external controller) |
| Number of fans installed |
Front: 3 × 120 mm ARGB |
| Fan mounting options |
Front: 3 × 120 mm / 2 × 140 mm; Top: 2 × 120 mm / 2 × 140 mm; Rear: 1 × 120 mm |
| Water cooling mounting options |
Front: 120 / 140 / 240 / 280 mm; Top: 120 / 240 mm (Note: maximum height of RAM is 35 mm when water cooling is installed in front); Rear: 120 mm |
| Max CPU cooling height |
161 mm |
| Max. length of graphics card |
350 mm (without fans and water cooling at the front) |
| Max length of power supply |
160 mm |
| Supported power supply type |
ATX, at the bottom |
| Wiring space |
18.5 mm |
| Anticorrosion filters |
Top, bottom |
