Name: Belt feeder for xTool P2/P2S
Brand: xTool
SKU: P5010199
Availability: InStock

Description

Belt feeder for xTool P2/P2S

The belt feeder for the xTool P2 and P2S significantly increases the machine's working area - up to 3000 mm × 500 mm. This allows you to engrave long materials without having to split them and process more parts at one time. This is a solution for those who want to work faster, more accurately and more efficiently.

A man in navy blue farce uses a tape feeder for Xtool engraving machine.

Automatic material feeding

The machine automatically plans the engraving path and moves the material without the need for manual feeding. This not only saves time, but also increases precision - forget about positioning errors.

Close-up of various parts of the Xtool engraving machine tape feeder.

Machine a variety of materials - without limits

With this feeder, you expand the range of materials that can be processed. In addition to classic plywood, acrylic or MDF (Medium Density Fibreboard), you can also work with soft materials such as cork, felt or EVA foam (Ethylene Vinyl Acetate, foam made from a copolymer of ethylene and vinyl acetate). Regardless of texture or thickness - the feeder ensures stable and smooth movement of the material.

Photos of various items, e.g. surfboards, doors, on which designs have been engraved.

Stability that makes a difference

The upper and lower pressure rollers are made of non-slip materials. This ensures that both thin and thicker plates are held securely, without the risk of shifting during operation.

Close-up of the engraved pattern.

Thoughtful design

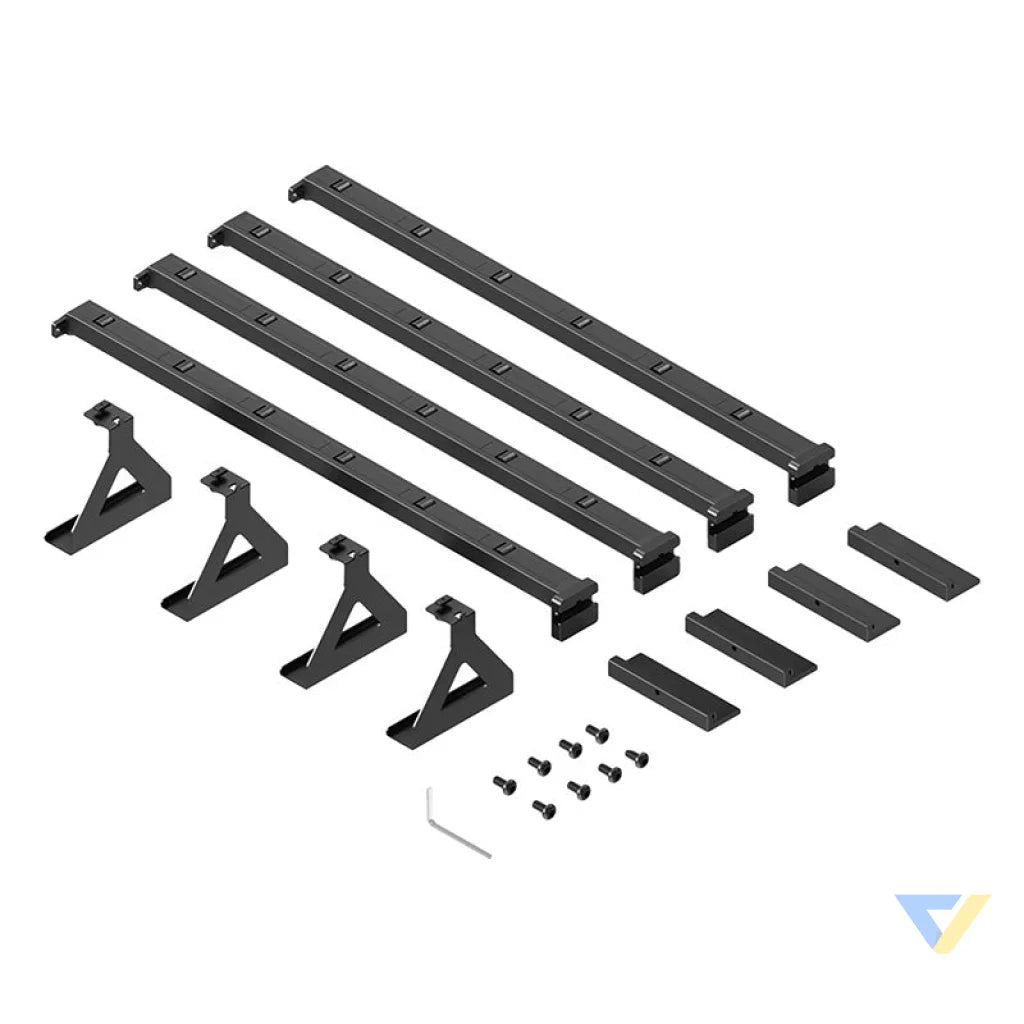

Mounting the feeder rails is easy thanks to a snap-in system, and color-coded pressure markings help you quickly select the right pressure for a particular material. In addition, the bottom knob allows you to conveniently adjust the position of the material, and the alignment grid helps evenly align the selected material with respect to the feed direction.

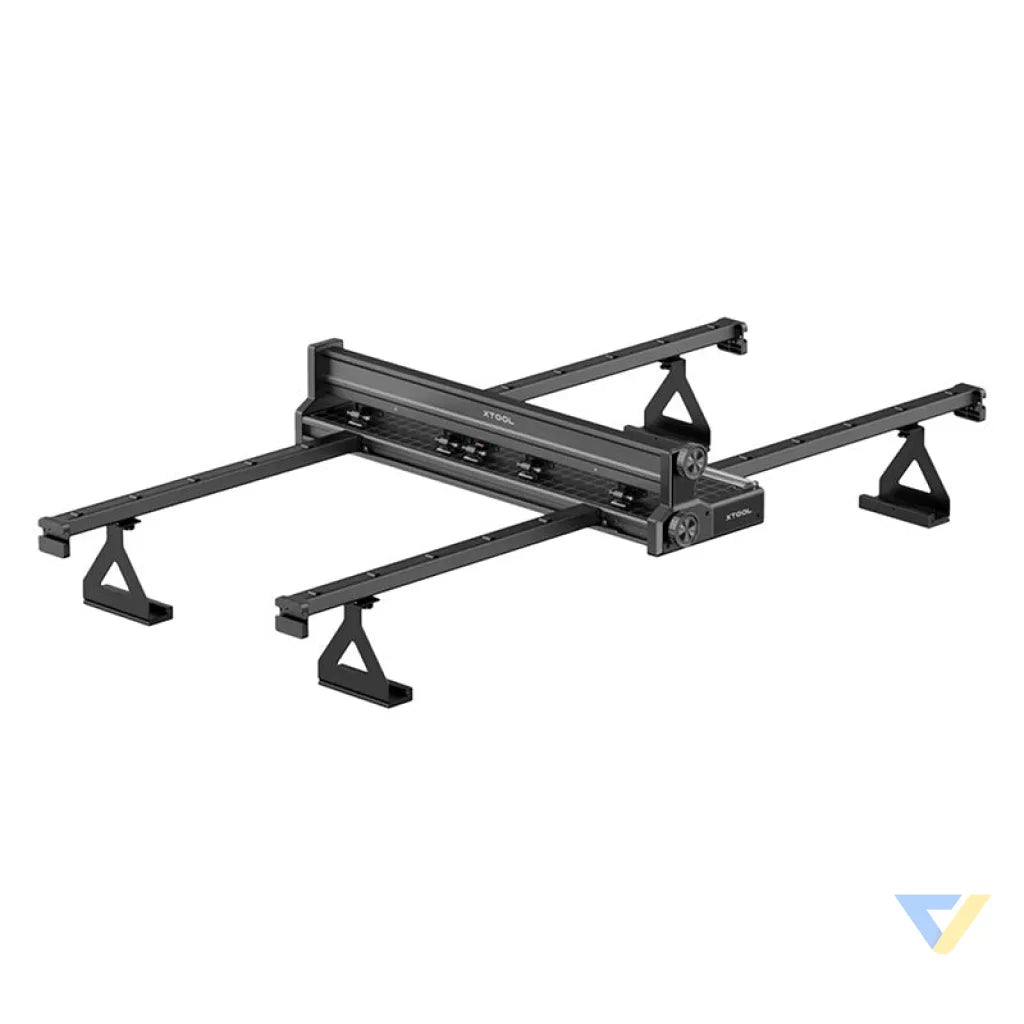

Xtool tape feeder on black background.

Manufacturer	XTool
Model	P5010199
Compatibility	xTool P2 / P2S
Dimensions	687 × 200 × 135 mm
Weight	4.55 kg
Maximum speed	160 mm/s
Maximum machining area	3000 mm × 500 mm
Maximum material width	624 mm
Minimum material width	65 mm
Maximum material thickness	14 mm
Maximum length of material	1 m (including 30 cm hanging)
Processing length	0.85 m (including 30 cm hanging)

Product form

xTool

Belt feeder for xTool P2/P2S

Belt feeder for xTool P2/P2S The belt feeder for the xTool P2 and P2S significantly increases the machine's working area... Read more

0,00 €

5 in stock Shipped in 4-9 days Shipping & stock statuses:

Ships today!: The product is in stock at our Finnish fullfilment center (at least 1 unit available). Orders are shipped at lightning speed the same or next business day. You will receive the tracking link by email once we have packed your order for shipping.

Shipped in 4–9 days: The product is shipped from European warehouse and delivered first to Finland to our fullfilment center. You will receive a tracking link by email once the order has been shipped from our Finnish fullfilment center. Usually you will receive the tracking link in 4 to 7 business days.

Out of stock: The product is currently unavailable. Please send a message to our customer service for more information.

Note: if you order contains multiple products that have different shipping information, your order will be shipped when we have all the items available for shipment. If possible we pack all the items in the same box.

Shop now, pay later – Qliro 14-day invoice, completely free of fees and interest!

Description

Belt feeder for xTool P2/P2S

The belt feeder for the xTool P2 and P2S significantly increases the machine's working area - up to 3000 mm × 500 mm. This allows you to engrave long materials without having to split them and process more parts at one time. This is a solution for those who want to work faster, more accurately and more efficiently.

A man in navy blue farce uses a tape feeder for Xtool engraving machine.

Automatic material feeding

The machine automatically plans the engraving path and moves the material without the need for manual feeding. This not only saves time, but also increases precision - forget about positioning errors.

Close-up of various parts of the Xtool engraving machine tape feeder.

Machine a variety of materials - without limits

With this feeder, you expand the range of materials that can be processed. In addition to classic plywood, acrylic or MDF (Medium Density Fibreboard), you can also work with soft materials such as cork, felt or EVA foam (Ethylene Vinyl Acetate, foam made from a copolymer of ethylene and vinyl acetate). Regardless of texture or thickness - the feeder ensures stable and smooth movement of the material.

Photos of various items, e.g. surfboards, doors, on which designs have been engraved.

Stability that makes a difference

The upper and lower pressure rollers are made of non-slip materials. This ensures that both thin and thicker plates are held securely, without the risk of shifting during operation.

Close-up of the engraved pattern.

Thoughtful design

Mounting the feeder rails is easy thanks to a snap-in system, and color-coded pressure markings help you quickly select the right pressure for a particular material. In addition, the bottom knob allows you to conveniently adjust the position of the material, and the alignment grid helps evenly align the selected material with respect to the feed direction.

Xtool tape feeder on black background.

Manufacturer	XTool
Model	P5010199
Compatibility	xTool P2 / P2S
Dimensions	687 × 200 × 135 mm
Weight	4.55 kg
Maximum speed	160 mm/s
Maximum machining area	3000 mm × 500 mm
Maximum material width	624 mm
Minimum material width	65 mm
Maximum material thickness	14 mm
Maximum length of material	1 m (including 30 cm hanging)
Processing length	0.85 m (including 30 cm hanging)
